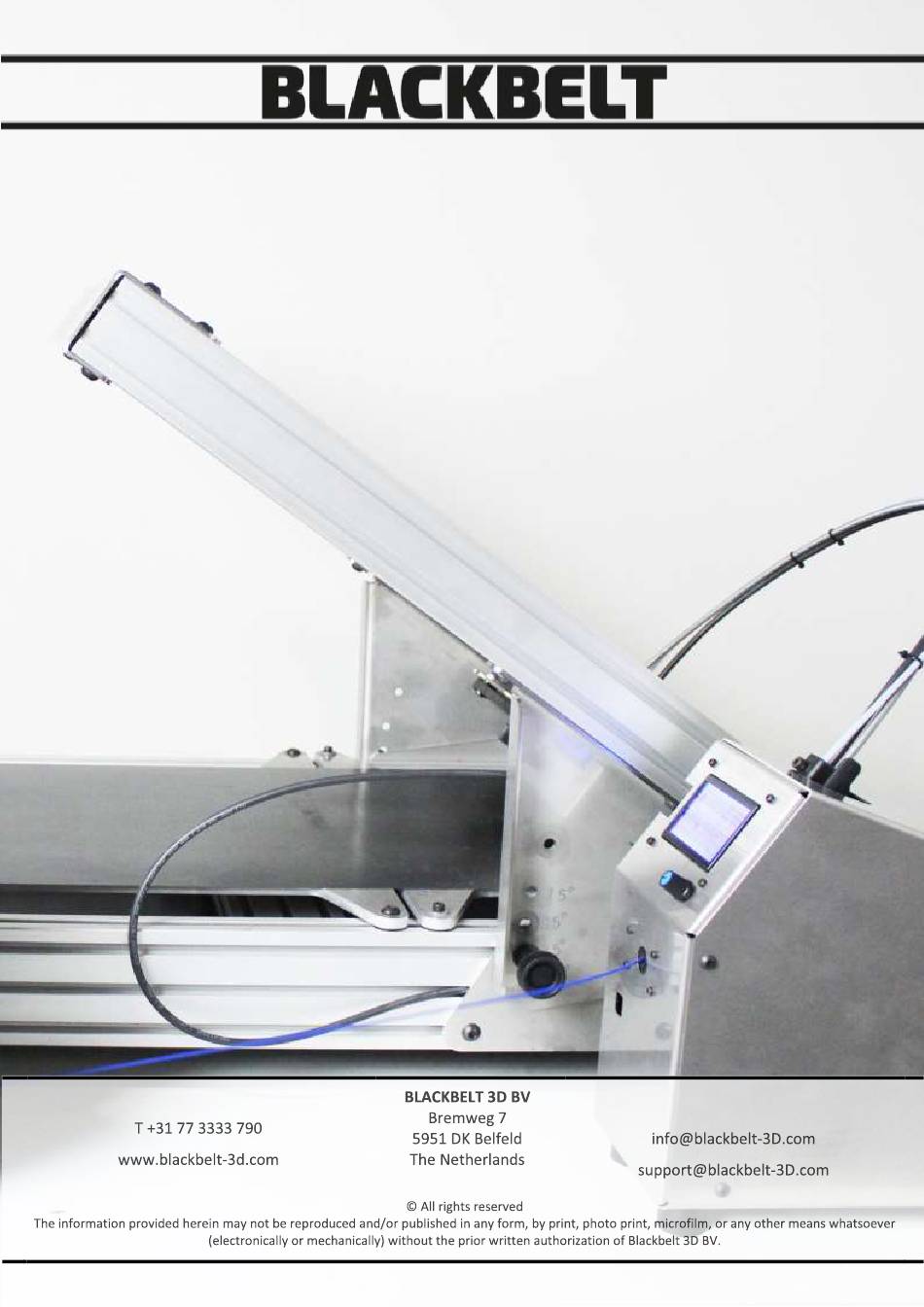

  • Page 1 Installation & User Manual Bowden & varioDrive Original document Version 2020- 5.0...
  • Page 2 Intentionally left blank Version 2020-5.0_ENG...
  • Page 3 ! Please read and understand the contents of this installation and user manual carefully ! Failure to read the manual may lead to personal injury, inferior results or damage to the BlackBelt 3D Printer. Always make sure that anyone who uses the Blackbelt knows and understand the contents of the manual and makes the most out of Blackbelt 3D Printer.
  • Page 4 Intentionally left blank Version 2020-5.0_ENG...

  • Page 5: Table Of Contents

    1.3.1 Explanation of pictograms and symbols ....................10 1.3.2 Definition of users........................... 11 Transportation ..............................11 Introduction ............................... 14 Description of the BlackBelt 3D print platform....................15 2.1.1 Versions explained ..........................15 2.1.2 Bowden ..............................15 2.1.3 varioDrive ..............................15 2.1.4...
  • Page 6 Auto support in BlackBelt Cura with custom support blocker ................ 47 Using custom support ............................. 48 Customer service and support ........................55 Maintenance .............................. 53 Preventive maintenance ..........................55 Heated bed modification ..........................59 Calibration Y axis ............................. 56 Belt adhesion maintenance ..........................58 Spare parts ..............................
  • Page 7 Menu structure ............................. 102 BlackBelt PCB ..............................104 7.3.1 BlackBelt PCB v1.4 ..........................104 7.3.2 BlackBelt PCB v1.4 varioDrive ....................... 105 7.3.3 BlackBelt PCB v1.3 ..........................106 Possible failure mode ............................ 107 Disposing the machine or machine parts...................... 108 EG-declaration of compliance ......................... 12...
  • Page 8 Intentionally left blank Version 2020-5.0_ENG...

  • Page 9: Safety And Compliance

    Safety and compliance Version 2020-5.0_ENG...

  • Page 10: Technical Specifications And Tolerances

    A copy can be acquired through e-mail (info@blackbelt-3d.com) or download a copy on our website (www.blackbelt-3d.com) Do not use of the machine for any other purposes then intended by BlackBelt 3D BV. Not doing so can lead to serious damage to the machine or the machine-operator and its surroundings.

  • Page 11: Safety Messages

    Completely switch of the main power switch and remove the connector from the wall socket. 11. If a part or sub-assembly of the Blackbelt 3D Printer has been damaged or is not functioning properly, please cease all activities or print jobs immediately. Only resume activities if the part has been repaired or replaced by a spare part.

  • Page 12: Definition Of Users

    In case of eventual damage caused by transportation, please report this damage immediately to your shipping agent or transporter and to Blackbelt 3D BV at all times. Take all necessary steps to prevent further damage to the machine.

  • Page 13: Eg-Declaration Of Compliance

    Bremweg 7 5951 DK Belfeld Netherlands Declares that: Machine: BLACKBELT 3D-Printer Type: BLACKBELT 3D-Printer Desktop version complies with Machinery directive 2006/42/EG and complies to the provisions of the EMC-directive 2014/30/EG complies with harmonized European standards: Harmonised Harmonised Description Description European standard...
  • Page 14 Intentionally left blank Version 2020-5.0_ENG...

  • Page 15: Introduction

    Introduction Version 2020-5.0_ENG...

  • Page 16: Description Of The Blackbelt 3D Print Platform

    We can separate them into two big groups: Flexibles (< 95 A) and Rigids (> 95 A). These terms are no standard and other suppliers might use different values. For the BlackBelt 3D printer platform we have developed two print systems that are dedicated to print optimal for one of the two groups.

  • Page 17: Machine Overview

    2.1.4 Machine overview Number: Machine part: BLACKBELT 3D Printer (assembled) Conveyor belt (Z Axis) cold segment Angle Adjusting knob Conveyor belt (Z Axis) heated segment Cooling fan X Axis Y Axis (2x) Printhead assembly SD Card Slot Display Menu jog wheel...

  • Page 18: Control Panel & Electrical Cabinet

    2.1.5 Control panel & electrical cabinet Control panel / front side: Filament Insert lever SD Card slot Display Menu jog button Filament entrance USB port entrance Electrical cabinet backside: X motor connector (red) Y motor connector (green) Z motor connector (blue) Power main Fuse Main Switch...

  • Page 19: Installation

    Installation Version 2020-5.0_ENG...

  • Page 20: Unboxing

    7. 3x Printhead varioDrive specific 8. 1x varioDrive In order to operate the BLACKBELT 3D Printer, you’ll also need a computer (using Windows or Mac/iOS operating system) 3.3 Surroundings/Environment Set-up the printer on a stable table in a dry and clean room with a temperature between 15-35°C.

  • Page 21: Setting Up The 3D Printer

    The connector with the blue indicator connects with the contact labeled “Z Motor”. The bigger connector without an indicator connects with the contact labeled “Heatbed”. The main power connector connects with the supplied power adapter to the wall socket. BLACKBELT 3D Control cabinet Printer...

  • Page 22: Installation Of The Printhead [Bowden]

    3.4.4 Installation of the printhead [BOWDEN] Ensure the machine is switched “Off”. Ensure the machine is setup secure on a robust table and can be accessed from all sides. Contact PTFE Tube entry Spiral cable entry Contact control cabinet Cooling fan Printhead screws Cooling fan assembly...
  • Page 23 Bigger objects with less details can easily be printed with a bigger nozzle. Just changing the nozzle size will decrease printing time by a factor two if you double the size. Follow these instructions to change the nozzle size. 1. Make sure the material is removed according the steps in chapter 3.5.1 (Scenario 1: steps 1 + 2). 2.

  • Page 24: Installation Of The Printhead [Variodrive]

    3.4.5 Installation of the printhead [varioDrive] Ensure the machine is switched “Off”. Ensure the machine is setup secure on a robust table and can be accessed from all sides. Contact motor PTFE Tube entry Spiral cable entry cable Printhead screws Contact control cabinet Heater cable...
  • Page 25 1. Unbox the printhead assembly. On request other nozzle diameters are available in 0.25, 0.4, 0.6, 0.8 and 1.0mm Nozzle Diameter. The smaller nozzle diameter you choose the more detailed prints will result. However, small nozzle diameters will also increase printing time for a big object. 2.
  • Page 26 Bigger objects with less details can easily be printed with a bigger nozzle. Just changing the nozzle size will decrease printing time by a factor two if you double the size. Follow these instructions to change the nozzle size. 9. Make sure the material is removed according the steps in chapter 3.5.3 (Scenario 1: steps 1 + 2). 10.
  • Page 27 16. Release the lever and the nozzle together with the cooling unit. Don’t unscrew the rest. [7-8] 17. Installing the new nozzle please make double shore the two rings align properly before securing the lever back in position. WATCH THE POSITIONING UNDER THE BOLT [9-10] 18.

  • Page 28: Operating The Blackbelt 3D Platform

    If a machine part has been damaged or is not functioning in the prescribed way, the machine operation must be stopped immediately and can only be resumed if the damaged part has been replaced or repaired. Please inform or consult Blackbelt 3D BV if the machine is not functioning properly. 3.5.1 Loading filament The Bowden and varioDrive system have a slightly different approach to material change.

  • Page 29: Material Change [Bowden]

    3.5.2 Material change [BOWDEN] Please assure that the 3D Printer is fully assembled and wired correctly and that the printhead has been installed. Scenario 1: NOT during a print job and when the heater is cold. 1. Preheat the nozzle with the presets: Push the button →...

  • Page 30: Material Change [Variodrive]

    3.5.3 Material change [varioDRIVE] Please assure that the 3D Printer is fully assembled and wired correctly and that the printhead has been installed. Scenario 1: NOT during a print job and when the heater is cold. 1. Preheat the nozzle with the presets: Push the button →...

  • Page 31: Explanation Menu 3D Printer

    3.5.4 Explanation Menu 3D Printer When starting the BlackBelt 3D Printer, the following start screen will appear. [5] Target [1] Target temperature temperature heated bed printhead [2] Temperature [6] Temperature printhead heated bed [3] Position coordinates [7] Print progress [4] Speed...

  • Page 32: Starting Up A Print

    3.5.5 Starting up a Print Assure that all previous steps have been executed completely and correctly. Hot Surface! Burn hazard when touching the hot surface. Entrapment hazard Danger / moving parts. 1. Insert the SD Card with the G-code into SD the slot (8) 2.

  • Page 33: Stop The Print

    3.5.6 Stop the print In this chapter we will explain the most common manual ways to stop the printer. 3.5.6.1 Stop the print using the menu Push the jog button. Turn the button to the left and select “Stop Print” . Push the button again to stop printing immediately.

  • Page 34: Using Blackbelt Cura

    “BLACKBELT Cura” Select your operating system (Windows, Linux or OSX) to download the latest version of BLACKBELT Cura. 2. DoubleClick on the .exe file and follow the steps in the installation wizard. 3. Open “BLACKBELT Cura”, if this does not start automatically.

  • Page 35: Generating Machine Code / G-Code

    In order to generate the machine code (G-code) the following requirements are necessary: A Mac or PC equipped with a SD card reader. The BLACKBELT Cura software needs to be installed onto the hard drive as described in chapter 3.6...
  • Page 36 Printhead, using “Nozzle diameter” – we advise to use a 0.4 or 0.6mm printhead, to obtain detailed results Material, using “Material:” – we advise “BLACKBELT nGen” to be used for your first prints. 7. Move the model into the desired position: Select the model, click on “Rotate”...
  • Page 37 View: Machinecode Model position Solid View / Layer view Color indication Line types Preview Slider (2x) Estimated Print time Save machine code to SC Card Start point / first line of the machinecode 9. Have a look at the G-code / machine code and evaluate your model. You can see the nozzle movements (track) the print nozzle will be following, to build the product.

  • Page 38: Saving A Project

    3.6.2 Saving a project If you are happy with the settings and you want to keep these for later, you can save the entire project in Cura as a *.curaproject.3mf file. This can also be convenient when you want to continue a later time or share your work with others.
  • Page 39 Otherwise the 3D object(s) will be loaded without settings. 5. BLACKBELT Cura shows an overview of the printer, profile and material that is saved to this project. It will also overwrite the visibility settings. If you agree to overwrite the current models and settings press “open” and continue with the project.
  • Page 40 Intentionally left blank Version 2020-5.0_ENG...

  • Page 41: Design Guide

    Design Guide Version 2020-5.0_ENG...

  • Page 42: Design Guidelines

    If a new product is being printed, there is no previous layer. This means that the first layer needs to start onto the conveyor belt. Not every geometry is equally suited to be printed on the BLACKBELT 3D Printer. The model below is a cross section of a plane which does not start onto the composite belt: If the model starts above the belt, it is necessary to apply a support or starting geometry to the part, that can be modelled in using CAD software.
  • Page 43 Because of these facts, the design of the part needs to be considered carefully. While designing products for the BlackBelt 3D Printer it is important to consider the direction the product will be printed. The cross section below can easily be printed from left to right.

  • Page 44: Using Auto Generated Support

    4.2 Using auto generated support 1. Make sure the Auto generate support is on and check if the Support Pattern and Support Density is according specifications. 2. Check all the other parameters like material settings and Prepare your GCODE for printing. If auto slicing is on this will happen automatically.

  • Page 45: Manual Support In Blackbelt Cura

    4.3 Manual support in BlackBelt Cura 1. Open the Marketplace and install Custom Supports 2. Selected the model you want to support and click on the new icon in the menu on the left. 3. Click ON the model near the location and a cube 5x5x5 appears, place a s many as you need. By deselecting the option in the menu to the left you will lock the amount of support blocks.
  • Page 46 Keep in mind that support is generated full height and in between the object all the way to the platform if it touches the object. 4. After deselecting the adding custom support tool you can move and scale the support. For a better control deselect uniform calling and work with individual scales.
  • Page 47 6. Make sure the Auto generate support is off and check if the Support Pattern and Support Density is according specifications. 7. Check all the other parameters like material settings and Prepare your GCODE for printing. If auto slicing is on this will happen automatically.

  • Page 48: Auto Support In Blackbelt Cura With Custom Support Blocker

    4.4 Auto support in BlackBelt Cura with custom support blocker Follow steps 1-5 from the previous chapter 4.3, the only difference is that you position the blocks where no support is needed. You can also do this with custom generated support in CAD after you import them and merged the files.

  • Page 49: Using Custom Support

    4.5 Using custom support The custom support mentioned in the previous chapter can be designed in your CAD program [1-2]. Make sure that the support geometry is a separate volume body that has no offset to the product geometry. It is possible to overlap the geometries.
  • Page 50 4. Open a sketch and project the BODY on the surface. Most CAD software inlcude a function to project the “shadow” of the object onto a surface. This is the easiest solution. You can also get this result by projecting single lines and curves.
  • Page 51 7. If the your satisfied with the offset and the erea is active for extrusion. Use the EXTRUSION UP TO BODY to make a NEW BODY. This feature takes some getting used to since it sometimes not preforms as expected. This can be due to under cutting or if an surface is equal to the extrusion surface.
  • Page 52 10. Save both files to a folder on your system on which BlackBelt Cura is installed. Make sure both files share a common origin. If the models do not align in the next steps this is the most common issue.
  • Page 53 4.6 Support for long profiles For printing longer profiles the only support structure needed. This part you can later remove or cut off. Especially flex materials are best to just print 10 mm extra in front and in the back and remove these parts later. 1.
  • Page 54 Intentionally left blank Version 2020-5.0_ENG...
  • Page 55 Maintenance Version 2020-5.0_ENG...

  • Page 56: Customer Service And Support

    Our technical and support department will answer all your questions about repair and maintenance of your machine and spare parts. Team BLACKBELT 3D is happy to advise you regarding your purchase, use of the machine and setting up the products, as well as applying the correct design guidelines. Please contact us at support@blackbelt-3d.com.

  • Page 57: Calibration Y Axis

    5.3 Calibration Y axis You’ll need a 5mm and 3mm Hexagon key and a sheet of paper 5. Set the gantry to 45° and mount a printhead. 6. Take a piece of paper, put it on the conveyor belt and place the printhead onto it: 7.
  • Page 58 Set screw 12. Adjust the set screw to level the gantry - clockwise if the printhead is now at the same side, or counterclockwise, if the printhead is now at the other side. [5-6] 13. Tighten the 3 screws again 14.

  • Page 59: Belt Adhesion Maintenance

    5.4 Belt adhesion maintenance To increase the adhesion between the 3D printed part and the conveyor belt, the belt surface can be cleaned by detergent. Especially when 3D Lac or any other adhesion agency is used we strongly advice to clean the belt at least every month.

  • Page 60: Heated Bed Modification

    5.5 Heated bed modification When printing long parts or parts that need additional heating for a longer period, the machine can be adjusted for a longer hot zone. This is often used when printing with filament that requires a heated bed above 80 degrees Celsius and is bogger then 100 x 100 mm in length and height.

  • Page 61: Spare Parts

    Only original spare parts and machine parts of BlackBelt 3D BV can be used in the machine. All consumer and spare parts can be found in the web shop of Blackbelt-3d.com or by direct inquiries at sales@blackbelt-3d.com. When sending inquiries always remark the number of parts and specifications.

  • Page 62: Changing The Belt

    5.7 Changing the belt Please make sure all the material is removed from the printer. The material removal steps are explained in chapter 3.5. 1. Turn off the machine and disconnect the controller box [1-3] 2. Remove the printhead, please make sure all the cables are removed [4-6] Version 2020-5.0_ENG...
  • Page 63 45° position 3. Remove the controller box, make sure that there is enough space to the right of the machine 4. Set the machine to 45° 5. Remove the 2 screws at the hinge – the gantry will now hold its position [9-10] 6.
  • Page 64 8. Take off the gantry and put it to the left besides the printer [13] 9. Set the base unit upright [14] 10. Loosen the rear roller with the rear 2 screws [14] 11. Unmount the rear roller while holding it with the other hand [15] 12.
  • Page 65 17. Turn the base unit back on its feet [24] f. Make sure the belt is between the guiders! In the latest models the guiders have been removed from the design. In that case make sure it is in the middle, with even space left and right. Follow instructions in Chapter 5.8 for the belt calibration before continuing this guide.
  • Page 66 18. Put the gantry back on the base unit and mount it in 45° position with the 2 angle adjusting knobs [25] 19. Mount the 2 screws at the hinge back again. [26] 20. After a belt-change you will need to calibrate the Y axis as explained in chapter 5.8. Version 2020-5.0_ENG...

  • Page 67: Calibrate The Belt

    5.8 Calibrate the belt In this procedure we need to touch the belt with the hands. Make sure that you have clean hands with no grease on them to keep the conveyor belt clean. Make sure that the conveyor belt is in between the limitations. [1-2] Check the tension of the belt.

  • Page 68: Synchronize The Y-Motors

    5.9 Synchronize the Y-motors You’ll need a 1,5mm Hexagon key When you encounter misalignments during printing or small level shifts, a likely cause can be non-synchronized y-motors. Please follow these steps to make sure the Y motors are synchronized again. 1.

  • Page 69: Upgrade Machine Firmware

    The USB cable supplied with the BlackBelt 3D printer. 1. First turn on the BlackBelt 3d controller by flipping the main switch and make sure it powers up. 2. Hook-up the machine to the MAC or PC using the USB cable. The USB port of the printer can be found in the front side of the controller console marked USB (figure 1+2).
  • Page 70 6. The upgrade menu should open where you choose “Automatically upgrade Firmware”. Wait for the process to complete and close all the windows until your back in the main program. Your 3D printer is now up to date with the newest version of the BlackBelt Firmware Blue symbol for...

  • Page 71: Manual Upgrade Firmware [Variodrive]

    5.11 Manual upgrade firmware [varioDRIVE] Follow steps 1-4 from the previous chapter 5.10 and continue with the following steps: 5. Now select the BlackBelt 3D printer varioDrive if this is not already the case and press “Upgrade Firmware” (figure 3).
  • Page 72 Intentionally left blank Version 2020-5.0_ENG...

  • Page 73: Additional Hardware

    Additional hardware Version 2020-5.0_ENG...

  • Page 74: Blackbelt Server

    In order to correctly update the firmware, the following requirements are necessary: A Mac or PC equipped with an SD card reader. The newest version of BLACKBELT Cura software needs to be installed onto the hard drive as described in Installation manual chapter 3.6 http://www.blackbelt-3d.com/download-area...
  • Page 75 8. First turn on the BlackBelt 3d controller by flipping the main switch and make sure it powers up. 9. Hook-up the machine to the server box with the USB cable. The USB port of the printer can be found in the front side of the controller console marked USB (figures 1+2).

  • Page 76: Webcam Mount

    1. Move the clip over the webcam with the rubber dots towards the lip. [1-2] 2. Place the webcam on the inside of the frame with BlackBelt logo on it. Make sur the lip is on the outside. [3-4] 3.

  • Page 77: Software Setup

    6.1.2 Software setup To make sure the BlackBelt server runs optimal in your local network run the following steps to setup all the software. 1. Open your browser and surf to the IP-address that is shown on the LCD screen and a login screen will pop-up.
  • Page 78 The USB-cable to the printer is not connected (connect it) c. The printer itself is busy or in error state (finish the print or restart the printer). d. If it none of the above, contact support@blackbelt-3d.com for further assistance. Version 2020-5.0_ENG...
  • Page 79 5. If everything is ok and the printer is connected. You should see an Operational state and a temperature read out [ 7 ]. Version 2020-5.0_ENG...

  • Page 80: File Upload

    Printing with the wrong physical setup can cause damage to the printer. 1. Prepare a file in BlackBelt Cura like your used to for SD-card printing. 2. Save the file to a known location on your device as GCODE.

  • Page 81: Print Queue

    Load Print Add to printqueue 6.1.4 Print queue The BlackBelt Server is equipped with a special Print Queue plugin developed to print 24/7. Especially for series production of custom objects this is a must use feature. Position or File print...

  • Page 82: Timelapse

    6.1.5 Timelapse Need to promote your work or check up on production flaws or failures the Timelapse is a great feature. The following modes are available: 1. Off: nothing happens 2. Timed: take a picture every set interval (standard every 10 seconds). For prints that take up a day or more we recommend 30 seconds interval.

  • Page 83: Adding Multiple Users

    6.1.6 Adding multiple users If your using the printer with multiple users and want to make use of different privileges, there is an option to add multiple users with different user levels. For this go to the settings menu [1 - wrench symbol] and go to the access control section.

  • Page 84: Control

    6.1.7 Control Control window for manually controlling the printer. The webcam will install automatically and show up as image here. If the webcam is showing an image that is upside down or mirrored, you can change this in the settings menu [ 1 ]. Webcam image Fan control...

  • Page 85: Webcam Settings

    6.1.8 Webcam settings Sometimes the image of the webcam is upside down or mirror. Use the settings below to change the picture orientation. Version 2020-5.0_ENG...

  • Page 86: Terminal

    6.1.10 Possible failure mode Problem Possible cause Action / solution Blackbelt server seems to be offline boot issues restart / reboot the server 2 times. This so far only occurs the first time on a new network IP address does not occur on the LCD false The Ip address is send once to the LCD display.

  • Page 87: Run-Out Sensor

    6.3 Run-out sensor For the Blackbelt we use a dedicated run-out sensor that can be retrofitted to all the older models as well as requested as a feature on purchase. Packing list run-out sensor Amount Description order number Run-out sensor...

  • Page 88: Using The Run-Out Sensor

    6.4 Using the run-out sensor The run-out sensor is an optional gadget which allows you to chance the filament during the print. The run-out sensor detects when the printer is running out of filament and puts the print on pause. 5.

  • Page 89: Variodrive Retro Fit Package

    If you have purchased a varioDrive update kit and you want to retrofit this on your platform you can use the following guide. For questions and encountered problems contact us through our support channel support@blackbelt-3d.com. Packing list VD retrofit Amount...

  • Page 90: Dismantling The Bowden Drive

    6.5.2 Dismantling the Bowden drive 11. Set the gantry to the 45° position. 12. Unmount the print head before starting, make sure there is no filament in the printer left. 13. Open the electrical cabin by removing the entire cover. 14.

  • Page 91: Install The Direct Drive

    9. Check if there are no lose wires in the electrical cabinet and power the machine. 10. Install the new firmware manually (Marlin 1.1.9.1 BLACKBELT VarioDrive.ino.hex) 11. The printer should now be ready to use. Make use of the project files to get the latest settings for different materials.
  • Page 92 Version 2020-5.0_ENG...

  • Page 93: Blackbelt Support Frame

    6.6 BlackBelt support frame Packing list support frame Amount Description order number Frame pt1 Frame pt2 Printer mount use description M8 sliding nut M8 x 14 M10 x 60 5mm Allen Key BB-P0098 4mm Allen Key use description Wooden packing box...

  • Page 94: Assembly Guide

    6.6.1 Assembly guide 1. Mount one of the sides to the top frame. 2. Mount the second side and middle frame to the previous assembly 3. Put the entire frame up right with the feet level on the floor. Make sure the frame does not wobble and is level.
  • Page 95 4. Position the Printer on the frame make sure the rear feet are behind the mid- beam (orange in picture) and the front feet are in front of the frame. 5. Fix the supplied fixtures with screws delivered as set in the package. Version 2020-5.0_ENG...
  • Page 96 6. Position and mount the electrical cabinet and spoolholder onto the correct locations. Note: the printer is left out of this picture for visual purposes. 7. The result should look like this. Version 2020-5.0_ENG...

  • Page 97: Blackbelt Roller Table

    6.7 BlackBelt roller table Packing list roller table Amount Description order number Roller table pt1 Roller table pt2 use description M8 x 20 M8 sliding nut Top mount N10 5mm Allen Key BB-P0098 Wooden packing box BB-P0026 User manual use description...

  • Page 98: Assembly Guide

    6.7.1 Assembly guide 1. Mount the legs to the bottom of the rollerframe. 2. Flip the construction and the final assembly should look like this in combination with the support frame. Version 2020-5.0_ENG...

  • Page 99: Additional Technical Info

    Additional technical info Version 2020-5.0_ENG...

  • Page 100: Materials

    7.1 Materials The BlackBelt 3D printing platform is unique due to the carbon fiber print belt that is used as a print surface. Each print surface has its unique settings and material preferences that work well. For the Blackbelt 3D printing platform the following materials are tested and recommended.
  • Page 101 Due to the close relation with colorFabb we have a good collaboration program around testing general and new materials. The Blackbelt printing platform is not limited by these materials, but there is little widely spread information on the adhesion to carbon fiber belts. Also, material suppliers often do not have info on this printing surface.

  • Page 102: Custom Materials

    Best way to keep track of all the different material settings is to make use of the Material library integrated in BlackBelt Cura. Use the following instructions to add custom materials to the library. To add new materials, go to the Manage Materials menu [1] under materials tab.

  • Page 103: Menu Structure

    7.2 Menu structure By turning the jog button on the control cabinet, it is possible to change a setting or scroll through the menu structure. By pushing the jog button, is it possible to select a menu item or confirm the set value. Grey settings are only available for the varioDrive setup.
  • Page 104 Main Back to the previous screen Temperature “Temperature” menu Control Back to the previous screen Nozzle: Set temperature printhead Bed: Set temperature heated bed (belt) Fan Speed 1: Set fan speed (0= off, 255=full power) Fan Speed 2: Set fan speed rear fan (0= off, 255=full power) Autotemp: Function, to adapt the temperature of the printhead automatically to the print speed.

  • Page 105: Blackbelt Pcb

    7.3 BlackBelt PCB In this chapter you find the connection schedules for the different versions of the BlackBelt 3D PCB’s that are on the market. We strongly advise to get in contact with us before changing any connectors or modifying wires inside the controller box.

  • Page 106: Blackbelt Pcb V1.4 Variodrive

    7.3.2 BlackBelt PCB v1.4 varioDrive Print head Rear Fan Heat bed Fan + heater 1 Brown 1 Brown 1 Pink 2 Blue 2 White 2 Gray 3 Blue 4 Red Print head Fan 2 1 White 2 Brown Display Exp 2...

  • Page 107: Blackbelt Pcb V1.3

    7.3.3 BlackBelt PCB v1.3 For legacy machines sold in 2018 Version 2020-5.0_ENG...

  • Page 108: Possible Failure Mode

    Possible cause Action / solution 3D printed part detaches from the belt Too fast belt wall Enable the feature “Belt Wall” In BLACKBELT Cura or belt and set it between 10 and 15 mm/s. Temperature too Slice the part and see the result in Layer View option “Feedrate”.

  • Page 109: Disposing The Machine Or Machine Parts

    7.5 Disposing the machine or machine parts Please follow all prescriptions as described in this manual. In particular chapter 1.3 : Safety messages Carry out the following steps while disposing the machine: 1. Put the machine out of order and detach all electrical connections. 2.
