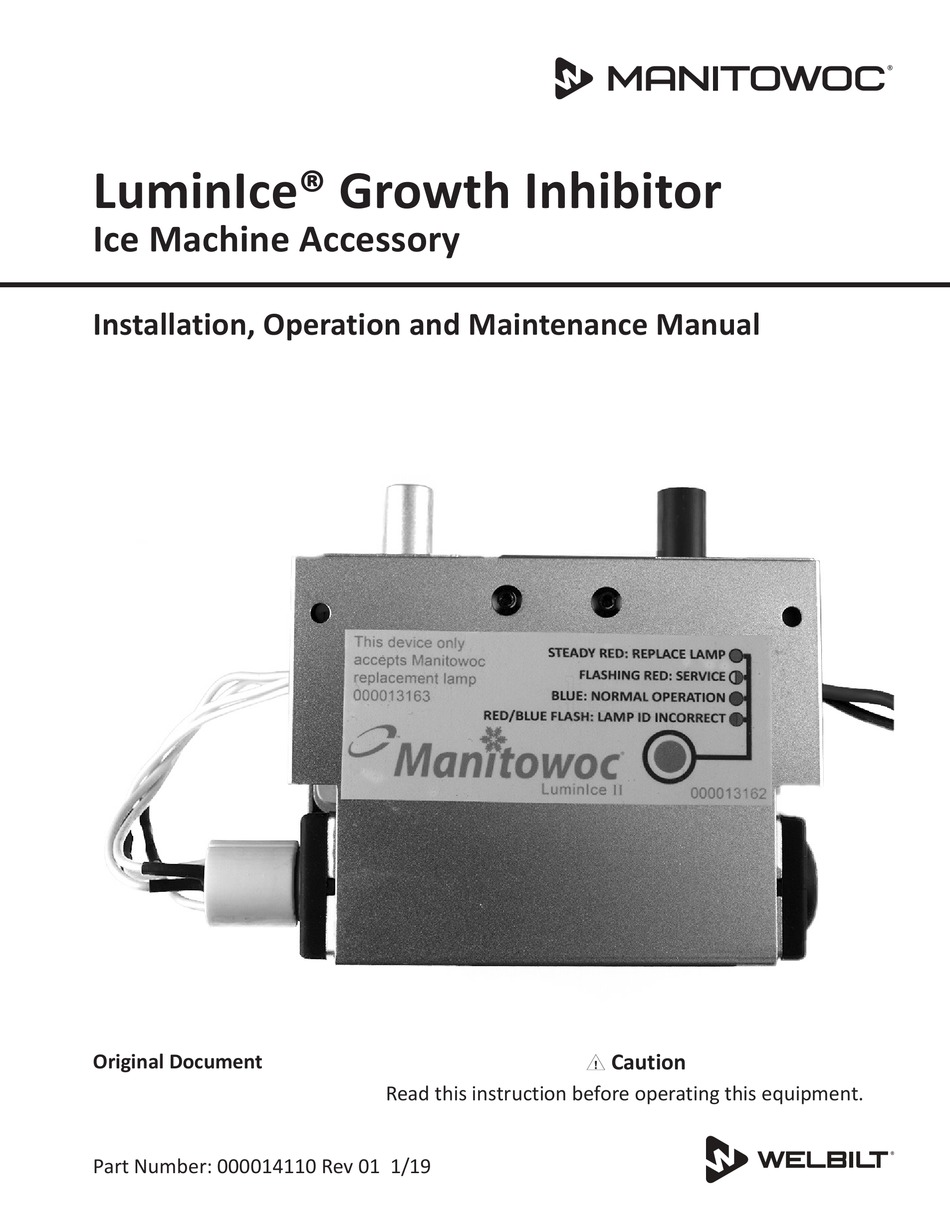

- Page 1 LuminIce® Growth Inhibitor Ice Machine Accessory Installation, Operation and Maintenance Manual Caution Original Document Read this instruction before operating this equipment. Part Number: 000014110 Rev 01 1/19...
-
Page 3: Safety Notices
Safety Notices DEFINITIONS DANGER Safety Notices Indicates a hazardous situation that, if not Read these precautions to prevent avoided, will result in death or serious personal injury: injury. This applies to the most extreme • Read this manual thoroughly before situations. - Page 4 DANGER Follow these precautions to prevent personal injury during use and maintenance of this equipment: • It is the responsibility of the equipment • Units with two power cords must be owner to perform a Personal Protective plugged into individual branch circuits. Equipment Hazard Assessment to ensure During movement, cleaning or repair it is adequate protection during maintenance...
-
Page 5: Table Of Contents
Table of Contents Safety Notices Safety Notices ................3 Definitions ................3 Section 1 General Information Compatible Ice Machine Models ..........7 Indigo® NXT Models ..............7 Indigo® Models ............... 7 NEO® Undercounter Models ........... 7 LuminIce® ..................7 LuminIce® Kits ................8 LuminIce® Replacement Bulbs ...........8 Before You Begin Installation .............8 Section 2 Installation... - Page 6 Table of Contents (continued) Section 3 Maintenance Replacement Bulb Usage ............23 LuminIce® II Indicator Lights ..........23 Bulb Replacement Frequency ..........23 LuminIce® Reminder Setup for Indigo® NXT & Indigo® Model Ice Machines ..............23 Indigo® Touchscreen Models ..........23 Indigo®...
-
Page 7: General Information
Section 1 General Information Compatible Ice Machine Models LuminIce® This manual covers installation of The LuminIce® growth inhibitor recirculates LuminIce® II models on the ice machines the air in the ice machine foodzone over listed below. a UV bulb. This process will inhibit the growth of common micro-organisms on all INDIGO®... -
Page 8: Luminice® Kits
General Information Section 1 LuminIce® Kits Ice Machine LuminIce® II LuminIce® II LuminIce® NOTE: These kits are used with NOTE: These kits are Indigo® NXT control boards with a used with Indigo® built-in LuminIce® transformer. non touchscreen models. 22" & 30" Single Evaporator K00464 K00450 K00424... -
Page 9: Installation
Section 2 Installation Indigo® NXT or Indigo® Model Assemble bracket to left-hand top rail with three provided screws. 22" & 30" Wide Single Evaporator Installation Warning Disconnect power to ice machine at the electrical disconnect. Pressing the power button does not disconnect line voltage. Disconnect all power to the ice machine at the electrical disconnect. -
Page 10: K00464 & K00465 Indigo® Nxt Models Low Voltage Wire Installation
Installation Section 2 Refer to picture and install LuminIce® K00464 & K00465 INDIGO® NXT MODELS hoses, wire clip and secure wires to LOW VOLTAGE WIRE INSTALLATION clip. Power is supplied from the control board. Install wire clip and route wires Route the low voltage wiring harness along evaporator bulkhead from the control board to the... -
Page 11: K00424, K00434, K00440, K00450, K00451, K00452 Indigo® Model Power Supply Installation Procedure
Section 2 Installation K00424, K00434, K00440, K00450, K00451, Route low voltage wiring (black and K00452 INDIGO® MODEL POWER SUPPLY yellow wires) to the LuminIce®. Install INSTALLATION PROCEDURE wire clip and route wires close to evaporator bulkhead to assure harness 30" Model Power Supply Mounting is away from any moving parts, Mount power supply on evaporator then snap wire harness connectors... -
Page 12: Indigo® Nxt Or Indigo® Model 48" Wide Single Evaporator Installation K00451 Indigo® & K00465 Indigo® Nxt
Installation Section 2 Indigo® NXT or Indigo® Model 48" NOTE: QuietQube models do not have open terminals on contactor. Remove two wires Wide Single Evaporator Installation from contactor, install supplied electrical K00451 Indigo® & K00465 Indigo® connector and connect wires. Contactor Wires Removed From Contactor Warning... - Page 13 Section 2 Installation Remove bracket from ice machine Assemble bracket to ice machine. and assemble LuminIce®, tubing and secure with hose clamps. NOTE: Attach power supply as shown below for Indigo® models (K00451) - Indigo® NXT models (K00465) power the LuminIce® from the control board.
-
Page 14: K00465 Indigo® Nxt Models Low Voltage Wire Installation
Installation Section 2 NOTE: Proceed to the next step for your K00424, K00434, K00440, K00450, K00451, specific LuminIce® kit number. Installation K00452 INDIGO® MODEL POWER SUPPLY INSTALLATION PROCEDURE varies depending on whether power for the LuminIce® is supplied by the control board Power Supply Mounting or a switching power supply needs to be Step 1... -
Page 15: Indigo® Nxt Or Indigo® Two-Evaporator Ice Machine Model Installation K00434, K00451 Indigo® & K00465 Indigo® Nxt
Section 2 Installation Indigo® NXT or Indigo® Two- Wires Removed From Contactor Evaporator Ice Machine Model Installation K00434, K00451 Indigo® & K00465 Indigo® NXT Line Voltage Power Supply Warning LuminIce® Power Disconnect power to ice machine at the Step 2 Route LuminIce®... - Page 16 Installation Section 2 NOTE: The bulb and bulb wiring must face Refer to picture and install LuminIce® toward the top of the ice machine to allow hoses. bulb replacement with LuminIce® in place. Attach LuminIce® assembly to corner post with two screws. NOTE: Proceed to the next step for your specific LuminIce®...
-
Page 17: K00465 Indigo® Nxt Models Low Voltage Wire Installation
Section 2 Installation K00465 INDIGO® NXT MODELS LOW K00434, K00451 INDIGO® MODEL VOLTAGE WIRE INSTALLATION POWER SUPPLY INSTALLATION PROCEDURE Step 1 Route the low voltage wiring Step 1 harness from the control board to the Mount power supply to LuminIce®. Install wire clip and route evaporator bulkhead. -
Page 18: Neo® Undercounter Model Installation
Installation Section 2 NEO® Undercounter Model Remove four screws to allow access for low voltage wire routing. Installation Warning Disconnect power to ice machine at the electrical disconnect. Pressing the power button does not disconnect line voltage. Remove Four Disconnect all power to the ice Screws machine at the electrical disconnect. - Page 19 Section 2 Installation To allow access for LuminIce® tubing, Mount LuminIce® to ice machine with the plastic caps in the bulkhead wall 2 screws. must be removed and discarded. The cap located behind the evaporator will fall into the water trough. Remove water trough to retrieve, then discard cap and reinstall the water trough.
-
Page 20: Ice Beverage (Ib) Single Evaporator Model Installation
Installation Section 2 Ice Beverage (IB) Single Evaporator Route and secure line voltage wires (black & white) with the power cord. Model Installation Wires must enter control box through Warning line voltage Heyco fitting and attach to L1 and L2 contactor terminals. Disconnect power to ice machine at the electrical disconnect. - Page 21 Section 2 Installation Mount the LuminIce® and transformer Disconnect L1 & N wires and install L1 to the mounting bracket. & N of wiring adapter to the incoming power supply wires. Connect removed • Mount the components on the opposite wires and LuminIce®...
- Page 22 Installation Section 2 THIS PAGE INTENTIONALLY LEFT BLANK Part Number: 000014110 Rev 01 1/19...
-
Page 23: Maintenance
Section 3 Maintenance Replacement Bulb Usage LuminIce® Reminder Setup for Indigo® NXT & Indigo® Model Ice Replacement bulbs are not interchangeable Machines between LuminIce® and LuminIce® II. • LuminIce® replacement bulb - K00425 Complete display panel navigation is available in the Indigo® and Indigo® NXT •... -
Page 24: Bulb Replacement
Maintenance Section 3 Bulb Replacement Remove retainer from old bulb and install on replacement bulb. Warning Disconnect power to ice machine at the electrical disconnect. Pressing the power button does not disconnect line voltage. Disconnect all power to the ice machine at the electrical disconnect. -
Page 25: Cleanup Procedure For Accidental Bulb Breakage
Section 3 Maintenance Cleanup Procedure for Accidental Attach connector to bulb. Bulb Breakage The cleanup procedure is identical to the procedure used to clean up compact fluorescent (CFL) or fluorescent tube lights. These lights contain a small amount of mercury sealed within a glass tube. Breaking these types of lights will release mercury and mercury vapor. -
Page 26: Before Cleanup
Maintenance Section 3 Cleanup Steps for Hard Surfaces BEFORE CLEANUP • Have people and pets leave the room, Carefully scoop up glass fragments and and avoid the breakage area on the way powder using stiff paper or cardboard out. and place debris and paper/cardboard •... -
Page 27: Cleanup Steps For Carpeting Or Rugs
Section 3 Maintenance Cleanup Steps for Carpeting or Rugs If vacuuming is needed to ensure removal of all broken glass, keep the following tips Carefully scoop up glass fragments and in mind: powder using stiff paper or cardboard • Keep a window or door to the outdoors and place debris and paper/cardboard open. -
Page 28: Future Cleaning Of Carpeting Or Rugs
Maintenance Section 3 If vacuuming is needed to ensure removal FUTURE CLEANING OF CARPETING OR of all broken glass, keep the following tips RUGS in mind: Air out the room during and after vacuuming. • Keep a window or door to the outdoors open. - Page 30 844-724-2273 WWW.MANITOWOCICE.COM WWW.WELBILT.COM Welbilt provides the world’s top chefs, and premier chain operators or growing independents with industry leading equipment and solutions. Our cutting- edge designs and lean manufacturing tactics are powered by deep knowledge, operator insights, and culinary expertise.
