Summary of Contents for Netronix UW-DAL
- Page 1 Technical documentation UW-DAL-MAN v3 This document is valid for device with firmware version 5.0 and higher...
- Page 2 5.1 Factory configuration ...................... 4 5.2 Reading the software version ..................4 5.3 Reading the configuration ....................5 5.4 Saving the configuration ....................5 BOOTLOADER - updating the firmware version .............. 5 Appendix A: Command and operation codes ................6 NETRONIX www.netronix.pl...

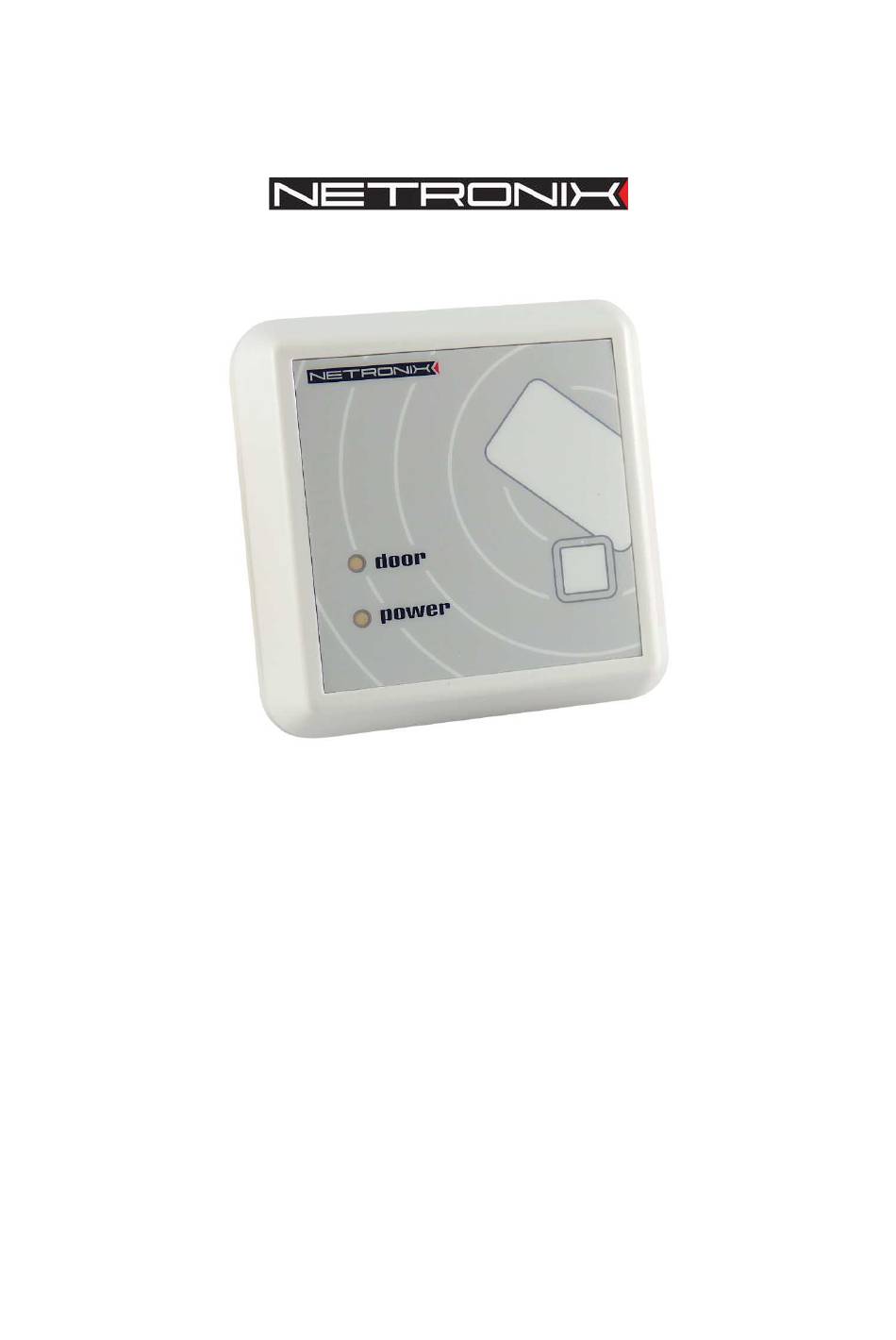

- Page 3 1 Introduction UW-DAL is RFID reader operating on the principle of contactless reading data from Unique transponder (EM MICROELECTRONIC MARIN SA - P4150). Unique transponder has a unique 40-bit identification number stored permanently (the number is unique to each transponder). The reader sends this number using 1-wire bus in a format compatible with the Dallas DS1990.
- Page 4 Interface type Serial RS232 (voltage levels 0..5V) Baudrate 9600bps Parity bit Number of data bits Number of stop bits The data is exchanged in the protocol NETRONIX. Protocol description is available at: http://www.netronix.pl/ 5 Configuration 5.1 Factory configuration Default Parameter Description...
- Page 5 • Command+1 – code of command performed increased by 1 • OpCode – operation code 6 BOOTLOADER - updating the firmware version To update the modem firmware version:: 1. Connect a device in which firmware we are to update to serial interface of computer. NETRONIX www.netronix.pl...
- Page 6 Command code Descryption Reading the software version C_FirmwareVersion 0xFE Saving the configuration C_SetConfig 0x08 C_GetConfig 0x0A Reading the configuration Response codes are listed in the table below: Response Response code Description OC_Successful 0xFF Command performed successfully Error OC_Error 0xE0 NETRONIX www.netronix.pl...
