Summary of Contents for SGS GPB260

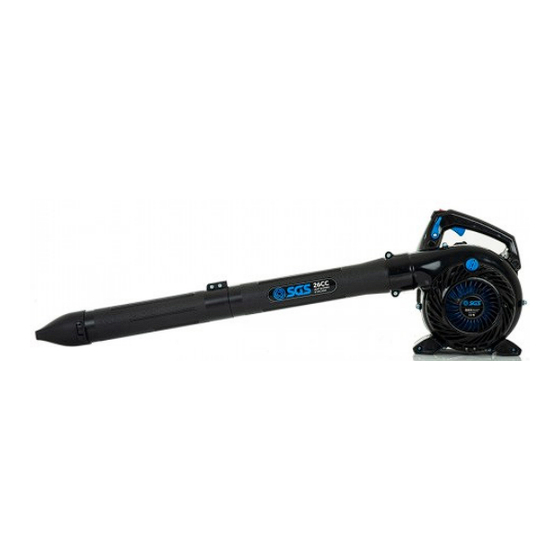

- Page 1 GPB260 LEAF BLOWER & VACUUM OWNER’S MANUAL FOR YOUR SAFETY PLEASE READ THESE INSTRUCTIONS CAREFULLY AND RETAIN THEM FOR FUTURE USE.
-
Page 2: Specification
SPECIFICATION GENERAL SAFETY PRECAUTIONS WARNING: Be sure the bottom cover is secured or the vacuum tube is properly installed. Avoid the impeller MODEL No GPB260 blade with your hand or any foreign object. ENGINE SIZE 25.4 cc POWER 0.75KW / 1HP... - Page 3 • Never use for spreading chemicals, fertilizers, or ether substances • While vacuuming or blowing debris, hold the unit with the muffler which may contain toxic materials. side facing away from your body and clothes. WWW.SGS-ENGINEERING.COM PAGE 4 PAGE 5...
- Page 4 6. Secure the elbow tube by turning the bolts clockwise. 4. Slide the lower blower tube onto the upper blower tube. 5. Secure the tube by turning the bolts clockwise. 6. To remove the tubes, turn the bolt counterclock wise to loosen the tubes. WWW.SGS-ENGINEERING.COM PAGE 6 PAGE 7...
-
Page 5: Shoulder Strap Adjustment
To re duce the risk of serious or fatal injury, we recom mend persons with medical implants to consult their physician and the medical 7. When vacuum tubes are fitted together assemble the two tubes implant manufacturer before operating this machine. together with the supplied screws. WWW.SGS-ENGINEERING.COM PAGE 8 PAGE 9... -
Page 6: Operation
Watch out for children, pets and open windows. Blow debris away safely. • Use the full blower nozzle extension so the air stream can work close to the ground. • After using blowers and other equipment, CLEAN UP! Dispose of debris in trash receptacles. WWW.SGS-ENGINEERING.COM PAGE 10 PAGE 11... -
Page 7: Starting The Engine
6 times 6. Squeeze the throttle trigger, the choke lever will move to” RUN “choke position. 7. Pull starter rope sharply until engine runs. 8. Once the engine runs, allow it to run 10 se conds. WWW.SGS-ENGINEERING.COM PAGE 12 PAGE 13... -
Page 8: Maintenance
CHECK FOR DAMAGED OR WORN PARTS: Replace spark plug Contact SGS for replacement of damaged or worn parts. Tighten securely with a 19 mm socket wrench. • Fuel Tank. Discontinue use of unit if fuel tank is damaged or leaks. -
Page 9: Troubleshooting Table
Store in a clean dry area. • Lightly oil external metal surfaces. PERPARE FOR STORAGE • OTHER: • Do not store petrol from one season to another. • Replace your petrol can if it starts to rust. WWW.SGS-ENGINEERING.COM PAGE 16 PAGE 17... -
Page 10: Parts Diagram
903920 Spark plug 903921 Throttle trigger 903922 Stop switch 903923 Upper blower tube 903924 Lower blower tube 903925 Lower vacuum tube 903926 903927 Bolt 903928 Upper vacuum tube 903929 Elbow tube 903930 Vacuum bag 903931 WWW.SGS-ENGINEERING.COM PAGE 18 PAGE 19... -
Page 11: Parts Diagrams
904110 Rope Wheel 904145 Filter Screen 904111 Spring 904146 Air filter Set 904112 Starter Cover 904147 Carburetor 904113 Starter Knob 904148 Carburetor Gasket 904114 Rope 3x800 904149 Bolt M4x20 903817 Bolt M5x20 903960 Insulator 904116 WWW.SGS-ENGINEERING.COM PAGE 20 PAGE 21... - Page 12 Back plate fan volute 904051 Collection bag 904077 Handgrip 904052 Shredded Blade 904078 Bolt ST4 8x25 904053 Nozzle pipe protection 904079 Self-locking handle 904054 Bolt ST4 8x12 904080 Left handle 904055 Bolt ST4 2x8 904081 Wave Washer 904056 WWW.SGS-ENGINEERING.COM PAGE 22 PAGE 23...
- Page 13 SGS Engineering (UK) Ltd West Side Park Raynesway Derby, DE21 7AZ EC Declaration of Conformity This is an important document and should be retained MANUFACTURER’S NAME: SGS Engineering (UK) Ltd PETROL VACUUM BLOWER TYPE OF EQUIPMENT: GPB260 PART NUMBER: APPLICATION OF EC COUNCIL DIRECTIVES / STANDARD:...
