Smith PWC Dolly Assembly Instructions

Assembly Instructions
PWC Dolly
P/N 27575

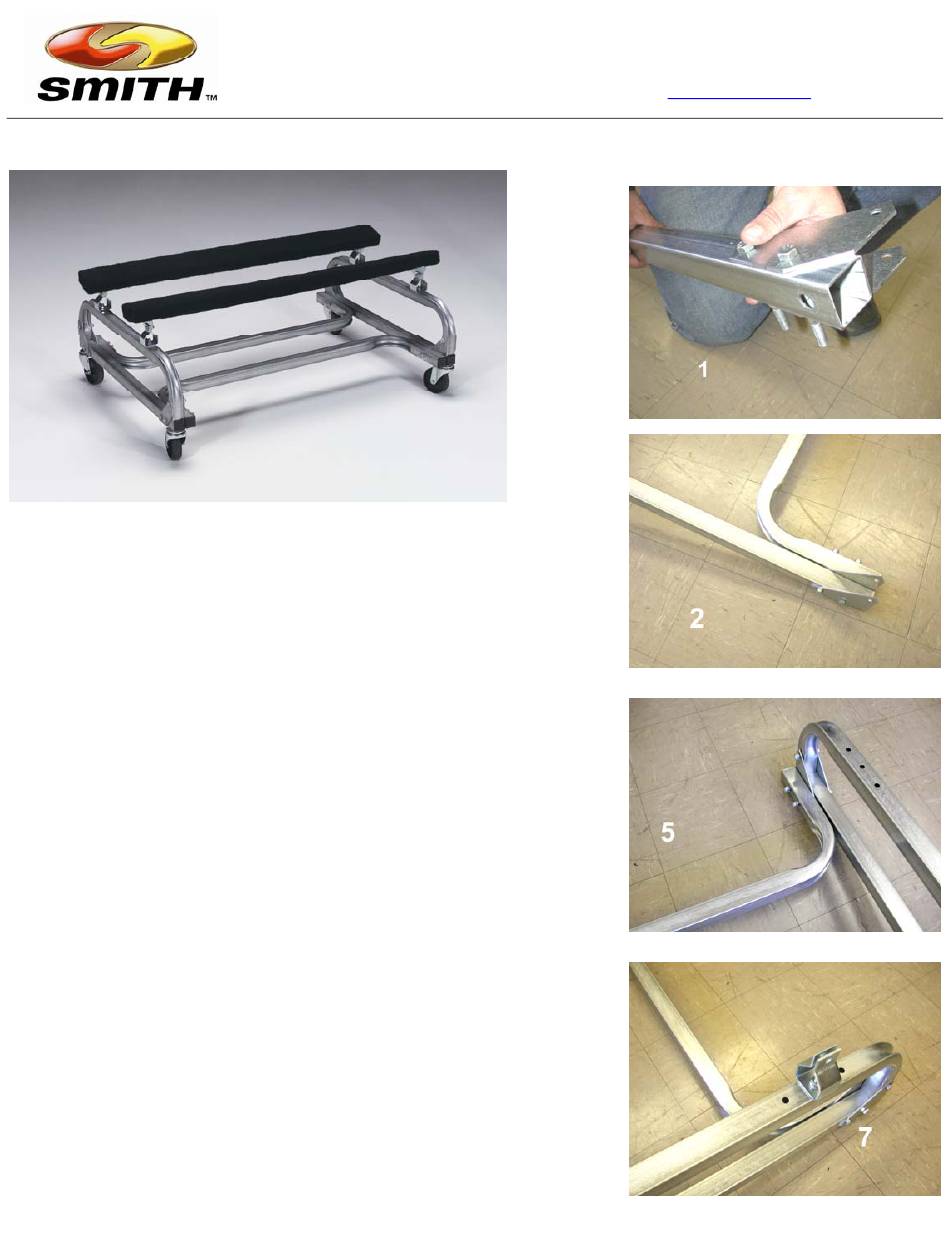

1. Assemble (2) corner braces (27575-4) to one end of bottom end tube
(straight tube 34") using (2) 3/8"-16 x 3-3/4" hex head bolts (10919).
Note: Caster holes must be on bottom.
2. Assemble support tube (27575-3-bent tube 41") on the (2) 3/8"-16 hex head
bolts with the support tube facing the center of the bottom end tube. Loosely
assemble (2) 3/8"-16 nylon locknuts (10810) **Do not tighten at this time.
3. Repeat steps (1) and (2) for other end of bottom end tube.
4. Repeat steps (1) and (2) for other remaining bottom end tube.
5. Assemble upright tube (27575-2-bent tube 34") above bottom end tube and
inside of corner braces using (2) 3/8"-16 x 2-1/4" hex head bolts (11022) and
(2) 3/8"-16 nylon locknuts (10810) **Do not tighten at this time.
6. Repeat step (5) for other upright tube.
7 .Assemble (4) y-bunk brackets (28106z) on upright tubes in desired width
(12", 16" or 20") using (4) 3/8"-16 x 2-1/4" hex head bolts (11022) and
(4) 3/8"-16 whiz locknuts (10820).
