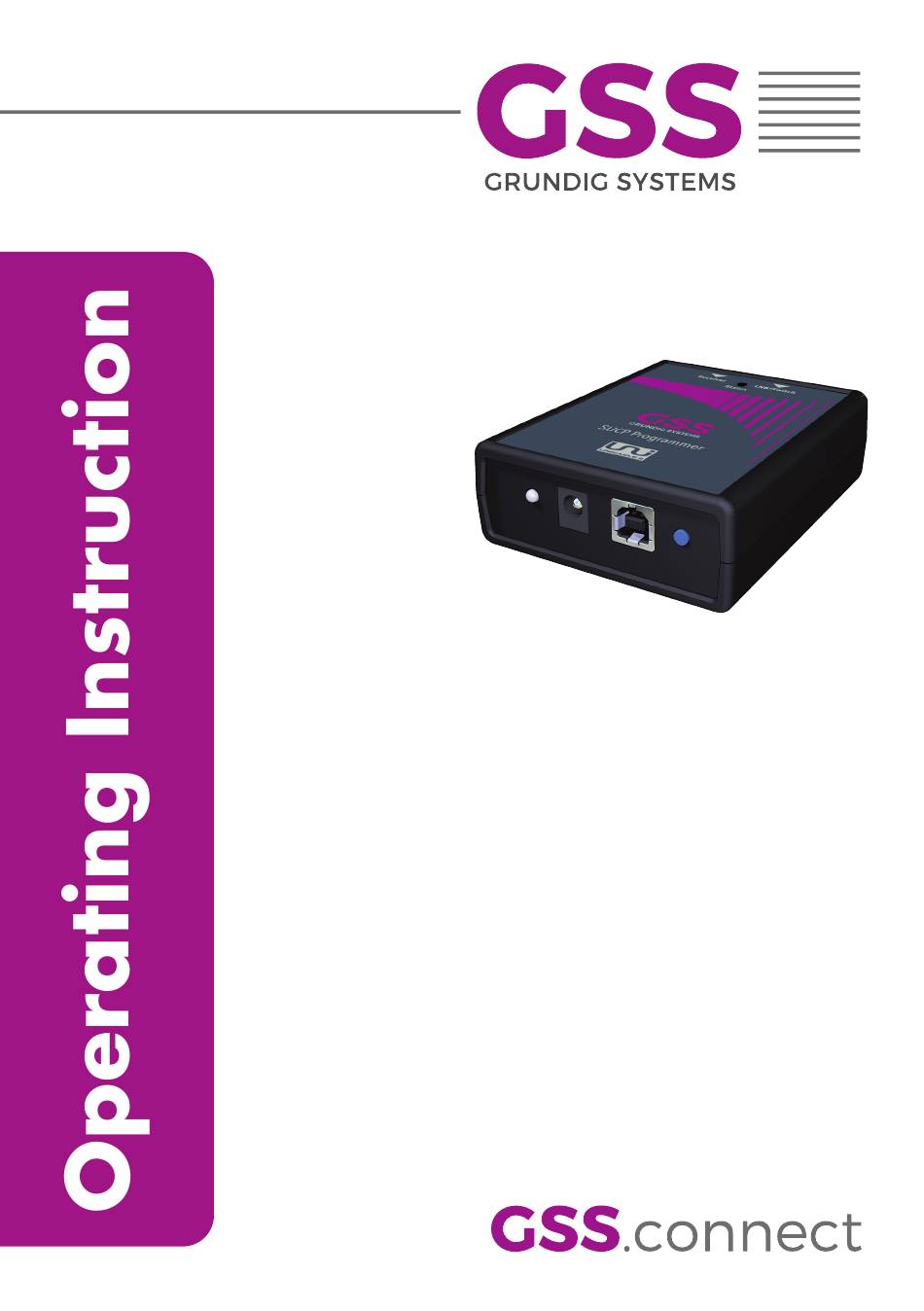

- Page 1 SUCP Programmer...
- Page 2 With the SUP programmer, you can change the programming of a suitable Unicable II device. The required PC software is only available for Windows ® operating systems. The SUCP Programmer is powered by an external power supply or via the USB port. - 2 - SUCP Programmer...
- Page 3 o n n e c t I o n s a n d c o n t r o l s Receiver loop through output (DC Pass, RF Loop) ODU (LNB/Switch) – Out Door Unit Port for the Unicable II device to be programmed (LNB or multiswitch output) Status LED Yellow (blinking) during data transfer (Transmit)
- Page 4 n I t I a l o p e r a t I o n 4.1 I pc n s ta l l I n G t h e s o f t wa r e a n d d r I v e r Before you connect the Unicable II programmer to your PC, follow the steps below to install the PC software and the driver.
- Page 5 4.3 c II o n n e c t I o n e x a m p l e n I c a b l e d e v I c e Terr. input Power Supply Unit 68mm 98mm Sat inputs Equipotential bonding Equipotential bonding Output Unicable II...
- Page 6 5.3 c o n f I G U r at I o n The programming possibilities depend on the device to be programmed. Please refer to the online help in the "Help" menu. The created configuration can be ... – saved as a file on your PC with button –...
- Page 7 The checkbox provides a graphical representation of the output bands. es t c o n f I G U r at I o n Via menu "Task" > "Test a connected device" several tests can be done. The tests refer to the output to which the programmer is connected. Please refer to the online help in the "Help"...
- Page 8 Phone: +49 (0) 911 / 703 8877 • Fax: +49 (0) 911 / 703 9210 www.gss.de/en • info@gss.de Service: Phone: +49 (0) 911/703 2221; Fax: +49 (0) 911/703 2326; service@gss.de Alterations reserved. Technical data E. & O.E. © by GSS Grundig Systems GmbH...
