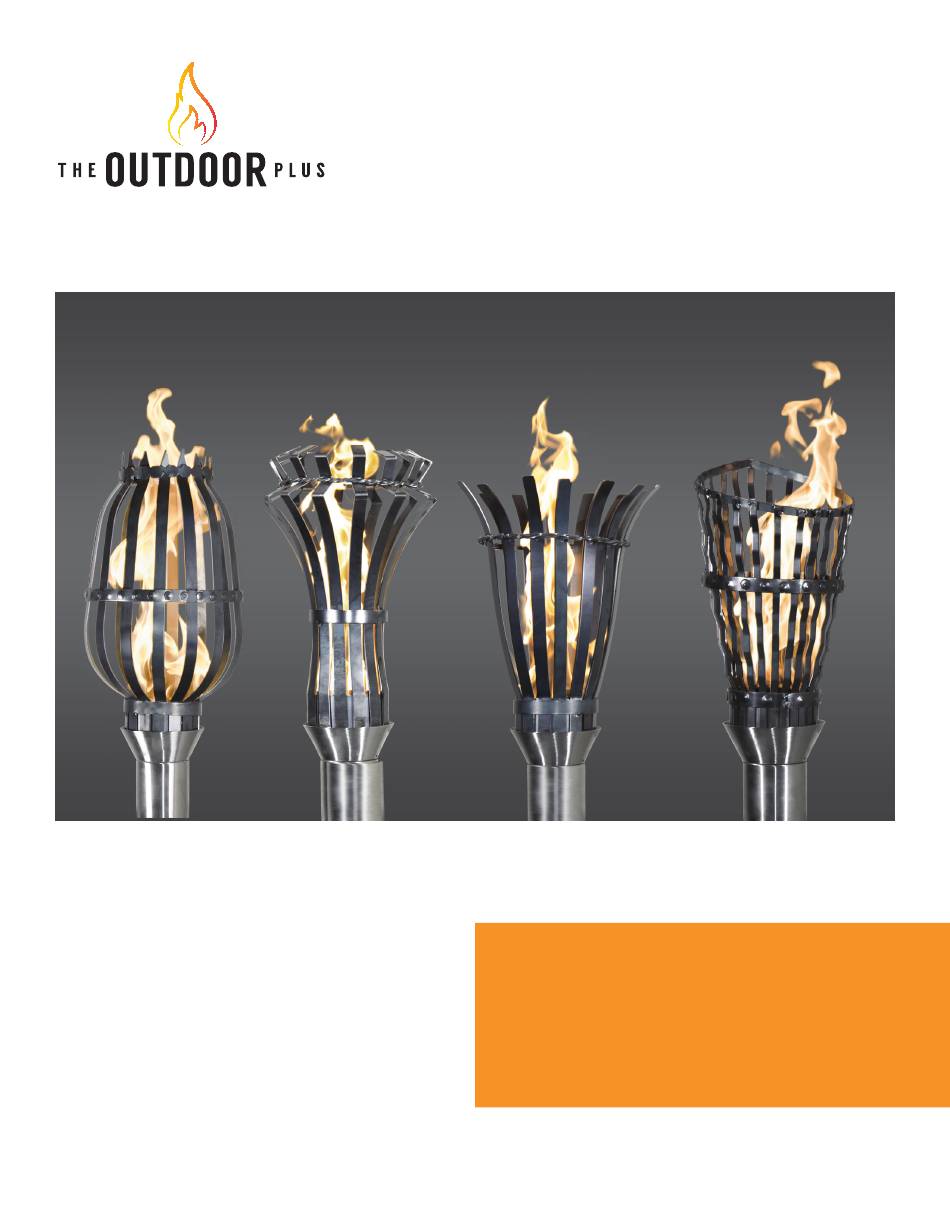

- Page 1 TOP TORCHES INSTALLER: Leave this manual with the appliance STAINLESS STEEL / CORTEN CONSUMER: Retain this manual for future reference. OPT-TT(X)M P A G E 1 T H E O U T D O O R P L U S . C O M 2 3 5 E A S T M A I N S T 9 0 9 .
-
Page 2: Safety Warnings
T O P T O R C H E S SAFETY WARNINGS WARNING AVERTISSEMENT Improper installation, adjustment, alteration, Une installation, un ajustement, une service, or lack of maintenance can cause injury modification, une réparation ou un entretien or property damage. inapproprié... - Page 3 T O P T O R C H E S SAFETY WARNINGS WARNING AVERTISSEMENT If you smell gas: Si’l y une odeur de gaz: õ Shut off gas to the appliance Coupez l’admission de gaz de l’appareil. õ õ...
- Page 4 T O P T O R C H E S SAFETY WARNINGS WARNING Installation must conform with local codes or, in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1 / NFPA 54, or International Fuel Gas Code. The appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the National Electric Code, ANSI/NFPA 70, if applicable.
-
Page 5: General Informations
T O P T O R C H E S GENERAL INFORMATIONS Fuel Type - Before making gas connections ensure appliance being installed is compatible with the available gas type. Check the label on the appliance to confi rm appliance gas type requirement. Gas Pressure - Proper input gas pressures are required for optimum appliance performance. -
Page 6: Installation
T O P T O R C H E S INSTALLATION Note: Installation should be done by a qualifi ed service technician that is locally licensed. TIKI TORCH MANUAL SHUT OFF OPTIONS OPTION 1 OPTION 2 Torch Head Manual gas shut off located at torch Manual gas shut off located on torch pole (Requires you to drill a hole) Manual Gas... - Page 7 T O P T O R C H E S INSTALLATION STEP 3 If you are installing the Manual Gas Shutoff on the Tiki Pole (Option 2 from page 7) fi rst remove the handle from the Ball Valve and then install the ball valve on the ½” gas riser as shown in diagram 3.
- Page 8 T O P T O R C H E S INSTALLATION STEP 6 Install ½” gas hose to your gas riser (or manual gas shutoff valve) so that the end of the ½” gas line is 1” SHORTER than the pole (measurement “B” from the previous page) In addition, bring the wires previously installed up along the gas line and tape it to the gas line in...
- Page 9 T O P T O R C H E S INSTALLATION THE TORCH HEAD STEP 9 Connect the gas line to the head of the tiki torch. Do NOT use pipe dope or plumbers tape on fl ared connections. Ensure connections are tight to prevent any gas leaks.
-
Page 10: Maintenance
T O P T O R C H E S FIRE PIT OPERATION WARNING: before use, be sure to test all gas connections for leaks. Do not use torches if there is any evidence of leaking gas. If leaking gas suspected, turn off the main gas supply and repair immediately. WARNING: Wind and gusty conditions will affect the flame in an unpredictable manner. -
Page 11: One-Year Limited Warranty
Warranty repair or replacement are the sole discretion of The Outdoor Plus and this warranty does not cover costs therein, including but not limited to: freight, removal, re-installation, etc.
