Summary of Contents for EVC electronic BSL100

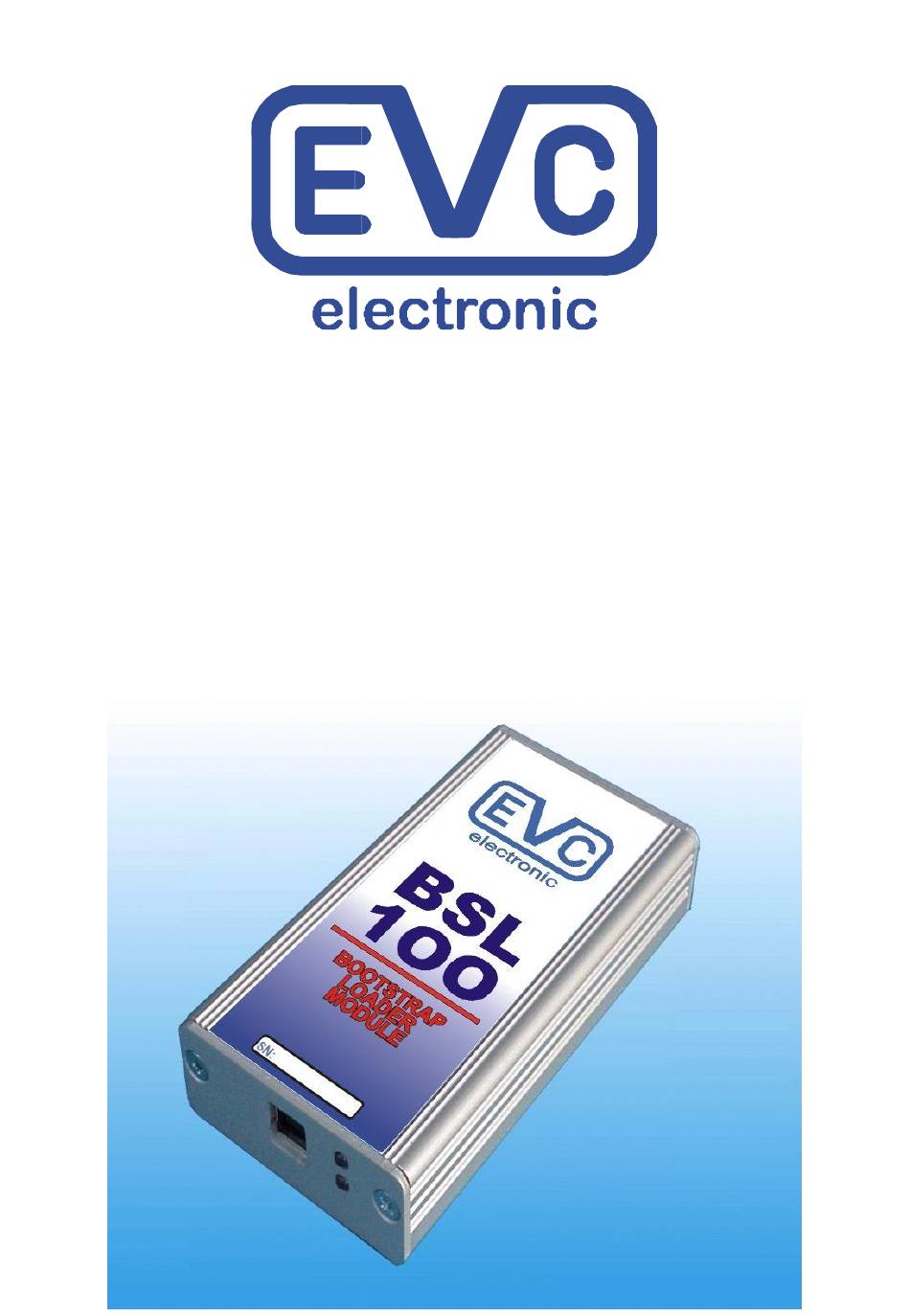

- Page 1 Manual BSL100 Bootstrap Loader Module for Infineon Tricore™ Microcontrollers...
-
Page 2: Table Of Contents
Table of Contents Theme: Page: Important ......................3 Disclaimer/ Warranty ..................3 The BSL100-Module..................4 BSL130 Probe ....................5 BSL131 Programming Adapter ..............6 BSL132 Probe ....................7 BSL-ADP ......................8 BSL-DRV ......................9 BSL100 Manual .....................10 EVC electronic GmbH... -
Page 3: Important
Disclaimer / Warranty The BSL100 module is for use by qualified personnel only. A warranty on our part for direct damages and consequential damages, caused by the improper handling of our product or additional products is excluded. -
Page 4: The Bsl100-Module
The BSL100 Module Pict. 1: A typical arrangement on BOSCH ECUs: BSL100 module, BSL130 probe and bootpin- probe. Please first connect your BSL100 module with your PC or notebook via the USB cable. The lower of the both blue LEDs on the front panel now starts flashing. -
Page 5: Bsl130 Probe
The BSL130 probe is shipped 12V power supply which also powers the ECU. The switching of the power is controlled by the BSL100 module. A red LED on top of the BSL130 lights up, indicating the ECU receives power. Pict.1: The BSL130 probe is lowered to the pad array and the bootpin probe is placed on the bootpin. -
Page 6: Bsl131 Programming Adapter
"bootpin" must be configured. Like on the BSL130 probe, the power distribution of the ECU is controlled by the BSL100 module. The connection to the power supply and to the CAN bus are made to the main connector of the ECU using the included cables and alligator clips. -
Page 7: Bsl132 Probe
Like on the BSL130 probe, the power to the ECU is controlled by the BSL100 module. The BSL130 probe is shipped together with a12V power supply which powers the ECU. Up to four cables connecting the bootpins to the corresponding 2 mm H- and L-Terminals of the BSL132 adap-ter. -
Page 8: Bsl-Adp
Using the red cables with the clamp-type test probes, each of the channels S1 and S2 need to be connected to the corresponding pin of the ECU. The locations of the required pins on the ECU are shown on our website: http://www.evc.de/de/product/bsl/ecu.asp. EVC electronic GmbH BSL100 Manual... -
Page 9: Bsl-Drv
By using two BSL-MPST probe tips the TXD and RxD lines from the ECU are connected to the BSL-DRV module. Pict 2: Detailed view of the BSL-DRV module. In this case it’s plugged to a BSL131 probe. EVC electronic GmbH BSL100 Manual... -
Page 10: Bsl100 Manual
March, 13 2015 edition, 3rd revision Publisher: EVC electronic GmbH, 46539 Dinslaken Author: Matthias Billian Although we were afforded to describe all details with the highest possible precision, nevertheless we can not guarantee an error free content of this manual.
