DS2 Disinfectant Sprayer

Model: C46200-00DS

Minuteman International, Inc.

A Member of the Hako Group

New & Reconditioned Equipment - www.southeasternequipment.net

988773 Rev A 04/20

Table of Contents

Summary of Contents for Minuteman DS2

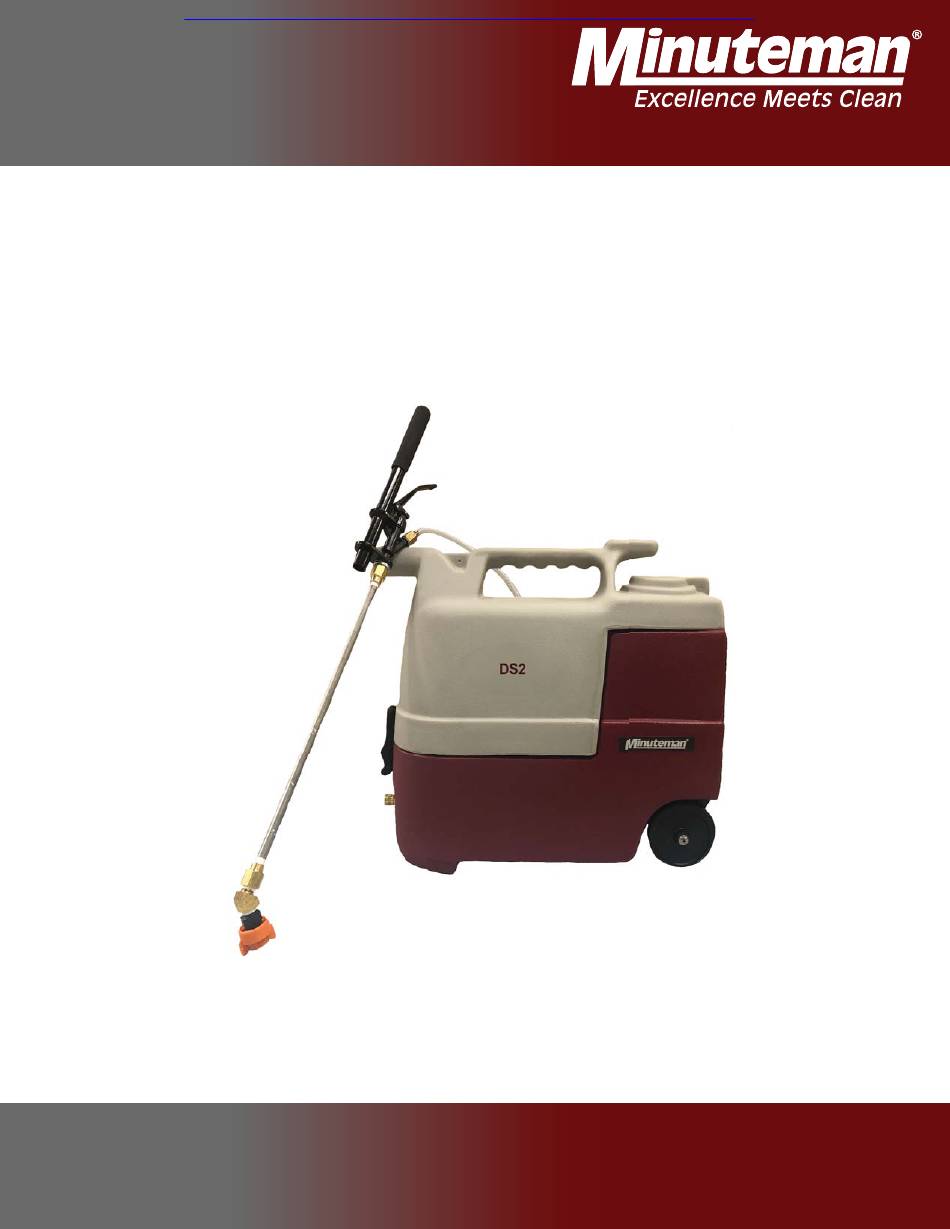

Page 1 New & Reconditioned Equipment & Parts- www.southeasternequipment.net DS2 Disinfectant Sprayer Model: C46200-00DS Minuteman International, Inc. A Member of the Hako Group 988773 Rev A 04/20 New & Reconditioned Equipment - www.southeasternequipment.net...
Page 2 Avoid moving parts. Do not wear loose jackets, shirts, or sleeves when working on machine. • Do not clean machine with a pressure washer. • Authorized personnel must perform repairs and maintenance. Use Minuteman supplied replacement parts. Page 2 New & Reconditioned Equipment - www.southeasternequipment.net...
Page 3: Table Of Contents
New & Reconditioned Equipment & Parts- www.southeasternequipment.net Table of Contents Inspection ..........................6 Electrical - Model C46200-00DS (115V) .................. 6 Grounding Instructions ......................6 User Maintenance Instructions ....................7 Daily Maintenance ........................7 Monthly/Bi-Monthly Maintenance ................... 7 Cord Storage ..........................7 Operating Instructions ......................
Page 4 New & Reconditioned Equipment & Parts- www.southeasternequipment.net Page 4 New & Reconditioned Equipment - www.southeasternequipment.net...
Page 5 New & Reconditioned Equipment & Parts- www.southeasternequipment.net FOR COMMERCIAL USE ONLY IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING WARNING – To reduce the risk of ﬁ re, electric shock or injury: Do not leave appliance when plugged in.
Page 6: Inspection
New & Reconditioned Equipment & Parts- www.southeasternequipment.net Inspection Carefully unpack and inspect your machine for shipping damage. Each unit is tested and thoroughly inspected before shipment, and any damage is the responsibility of the delivery carrier who should be notiﬁ ed immedi- ately.
Page 7: User Maintenance Instructions
New & Reconditioned Equipment & Parts- www.southeasternequipment.net User Maintenance Instructions All service and repair should be performed by qualiﬁ ed vacuum service representative or electrician. Daily Maintenance 1. Solution tank should be emptied after each use. Flush pumping system with 1 gallon of clean water after use.
Page 8: Operating Instructions
New & Reconditioned Equipment & Parts- www.southeasternequipment.net Operating Instructions 1. Lift the cover tank oﬀ of the of solution tank by releasing the two latches. 2. Add up to 1-1/2 gallons of disinfectant solution to the solution tank. Use only commercially available cleaning chemicals.
Page 9 New & Reconditioned Equipment & Parts- www.southeasternequipment.net Page 9 New & Reconditioned Equipment - www.southeasternequipment.net...
Page 10: Frame Assembly (450200Ds)
New & Reconditioned Equipment & Parts- www.southeasternequipment.net Frame Assembly (450200DS) Page 10 New & Reconditioned Equipment - www.southeasternequipment.net...
Page 11 New & Reconditioned Equipment & Parts- www.southeasternequipment.net Frame Assembly BOM (450200DS) Frame Parts List (450200DS) ITEM PART # DESCRIPTION 150004 STRAIN RELIEF, (PIGTAIL CORD GRIP) 450040 FTG-ELBOW 90 3/8 MPT X 3/8 HB NYLON 450222 FTG-ELBOW 90 3/8 MPT X 1/4 HB NYLON 450226 WHEEL-4"...
Page 12: Base Assembly (450230-Ds)
New & Reconditioned Equipment & Parts- www.southeasternequipment.net Base Assembly (450230-DS) Page 12 New & Reconditioned Equipment - www.southeasternequipment.net...
Page 13 New & Reconditioned Equipment & Parts- www.southeasternequipment.net Base Assembly BOM (450230-DS) Base Parts List (450230-DS) ITEM PART # DESCRIPTION 450205 QUICK DISCNCT PLATE 16GA 450207 LATCH-SOFT 450221 COUPLER-QUICK CONNECT, 1/8MPT 450225 FTG-ADAPTER 1/8 FPT X 1/4 HB BRASS 450230-DS SOLUTION TANK ASM, DISINFECT SPRAY 710025 SCR-THMS 8-32 X 3/8 SS 711552...
Page 14: Handle Assembly (450413)
New & Reconditioned Equipment & Parts- www.southeasternequipment.net Handle Assembly (450413) Page 14 New & Reconditioned Equipment - www.southeasternequipment.net...
Page 15 New & Reconditioned Equipment & Parts- www.southeasternequipment.net Handle Assembly BOM (450413) Handle Parts List (450213) ITEM PART # DESCRIPTION 78-71-A GRIP-HANDLE BLACK 450402 WELD-HANDLE 450403 SPRING CLIP, HALF VINYL, 3/4" TO 1-1/8" 450404 SPACER, FOR .75 OD TUBE 450414 SCR-PHMS M6-1.00 X 35 ZP 712533 SCR-PHMS 10-24 X 1.25 SS 712904...
Page 16: Wand Assembly (450250Ds)
New & Reconditioned Equipment & Parts- www.southeasternequipment.net Wand Assembly (450250DS) Page 16 New & Reconditioned Equipment - www.southeasternequipment.net...
Page 17 New & Reconditioned Equipment & Parts- www.southeasternequipment.net Wand Assembly BOM (450250DS) Wand Parts List (450250DS) ITEM PART # DESCRIPTION 78-71-A GRIP-HANDLE BLACK 281041 VALVE-CHECK 390066 SOLUTION VALVE ASY COMP 450208 HOSE-1/8 ID NYLOBRAID RAW 450218 FTG-ADAPTER 1/4 FPT X 1/8 HB BRASS 450219 FITTING-NIPPLE QUICK CONNECT 1/8 MPT 450223...
Page 18 New & Reconditioned Equipment & Parts- www.southeasternequipment.net Page 18 New & Reconditioned Equipment - www.southeasternequipment.net...
Page 19: Wiring
New & Reconditioned Equipment & Parts- www.southeasternequipment.net Wiring Page 19 New & Reconditioned Equipment - www.southeasternequipment.net...
Page 20 New & Reconditioned Equipment & Parts- www.southeasternequipment.net “Excellence Meets Clean” Minuteman is a Full Line Manufacturer of Sweepers and Scrubbers, for Industrial Facilities. 14N845 U.S. Route 20, Pingree Grove, IL 60140 USA Phone (800) 323-9420 - www.minutemanintl.com A Member of the Hako Group 988773 Rev A 04/20 New &...
