CXG 942T Manual

R 942T MANUAL
Intelligent lead-free soldering station

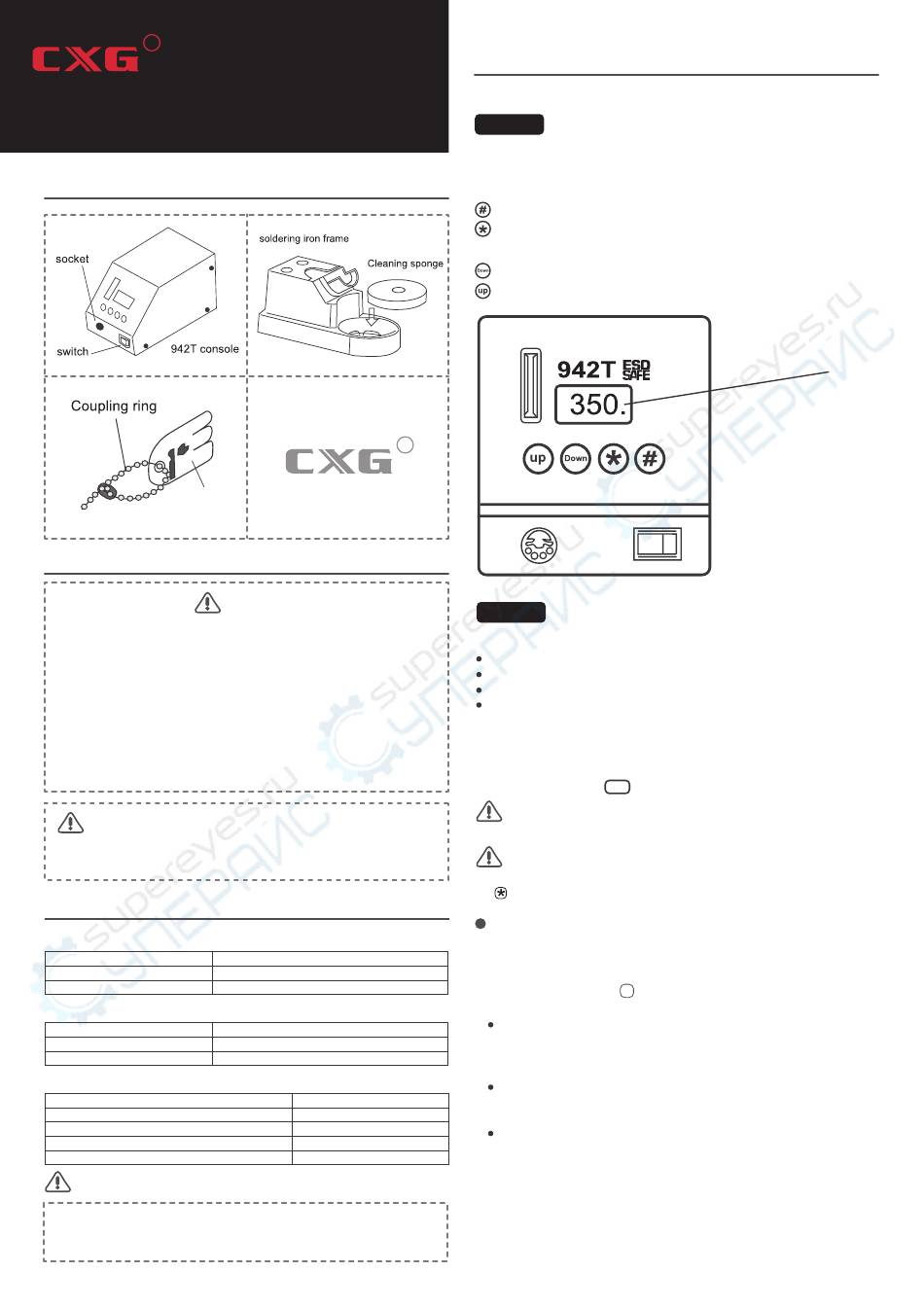

(1) Packing List and Parts name
card
(2)
Warning, attention Remarks and examples
When the power is turned on, the soldering iron tip temperature will reach 200°C
to 450°C Celsius.
In view of the wrong operation, it may cause burns and fires. Please strictly
observe the following:
1. Do not touch the soldering iron tip or the metal parts around it.
Do not use a soldering iron tip near flammable objects.
2.
3. Notify the people around you that the soldering iron tip is extremely hot and
should not be touched.
Use the pause, end or turn off the power when leave.
4.
5. When replacing parts or device soldering iron tips, turn off the power and
allow the soldering iron head to cool to room temperature.
note
The soldering iron tip will be very hot. Use a heat resistant gasket to remove it and place it on
the stand. Do not take the soldering iron tip with a heat resistant gasket for too long.
(3) specification
942T console
Power consumption
Temperature range
Temperature stability
Console section
Output
Overall volume
Weight
Soldering iron part
Soldering iron head to grounding resistance
Soldering iron head to ground potential
Length (without electricity)
Weight (no electricity)
Electric money component
note
The above temperature is measured with a 191 thermometer.
This product has anti-static treatment.
Specifications and appearance are subject to change without prior notice.
attention
75watts total
200 degrees Celsius ~ 450 degrees Celsius
土1 degree Celsius soil in non-use state
33 volts
188 X 100 X 106mm
2.500 kg
2 ohms or less
below 2 millivolts
190 mm
44 grams
1.2m
(4) Instructions
Console display
control
The front panel of the 942T soldering iron control unit has the following controls:
Power switch
four control buttons
Start the value input mode.
End a series of inputs (the numerical input mode paragraph pause);
When you press less than one second,
the saved settings are displayed.
Increase the value shown in the display.
Reduces the value shown on the display.
R
display
The 942T has a three-digit display. According to the selected mode, it will display:
Normal mode Sensor temperature (soldering head temperature)
Input value The selected value (for details, refer to [Numerical Input Program])
Temperature display according to Celsius
Error flag Please refer to the [Error Flag] section.
In addition, when the control reaches the desired temperature, the heater indicator
will flash to indicate that it is ready for use.
1. Press the power switch.
2. When reach to the set temperature. Moreover, the heater power-on indicator
on the lower right of the 350 display section is turned on.
note
Place the soldering iron on the soldering iron bracket when not in use.
note
The factory setting is at 350 degrees Celsius. To confirm the set temperature, press
the button. The set temperature will be displayed for 2 seconds.
How to input the soldering iron head correction value to 942T
This method requires the use of a soldering iron thermometer to measure the
temperature of the soldering iron tip and the most correct process control:
1. Insert the card into the card hole.
2. Press and hold the button # for one second.
3. Use a soldering iron thermometer to measure the soldering iron tip temperature.
When entering the correction value input mode, the soldering iron tip
temperature is controlled with a correction value of 0 regardless of the value
of the correction value.
4. Enter the correction value
Detect 400 ° and soldering iron measuring temperature, record this value. Refer
to the above example to determine the correction value of the input required for
the soldering iron tip.
When entering the third digit, use the "UP" or "down" button to determine a
positive or negative number. Select 1 for positive numbers and 0 for negative
numbers.
If the measured temperature is 395 degrees Celsius, the temperature difference is
+5 degrees Celsius and the soldering iron head is slightly colder than five
degrees, so the correction is +5 degrees Celsius.
If the measured temperature is 405 degrees Celsius, the temperature difference
is -5 degrees Celsius, the soldering iron head is slightly hot five degrees, so the
correction value is -5 degrees Celsius.
Heater power indicator
