Summary of Contents for Evobike BTA42S

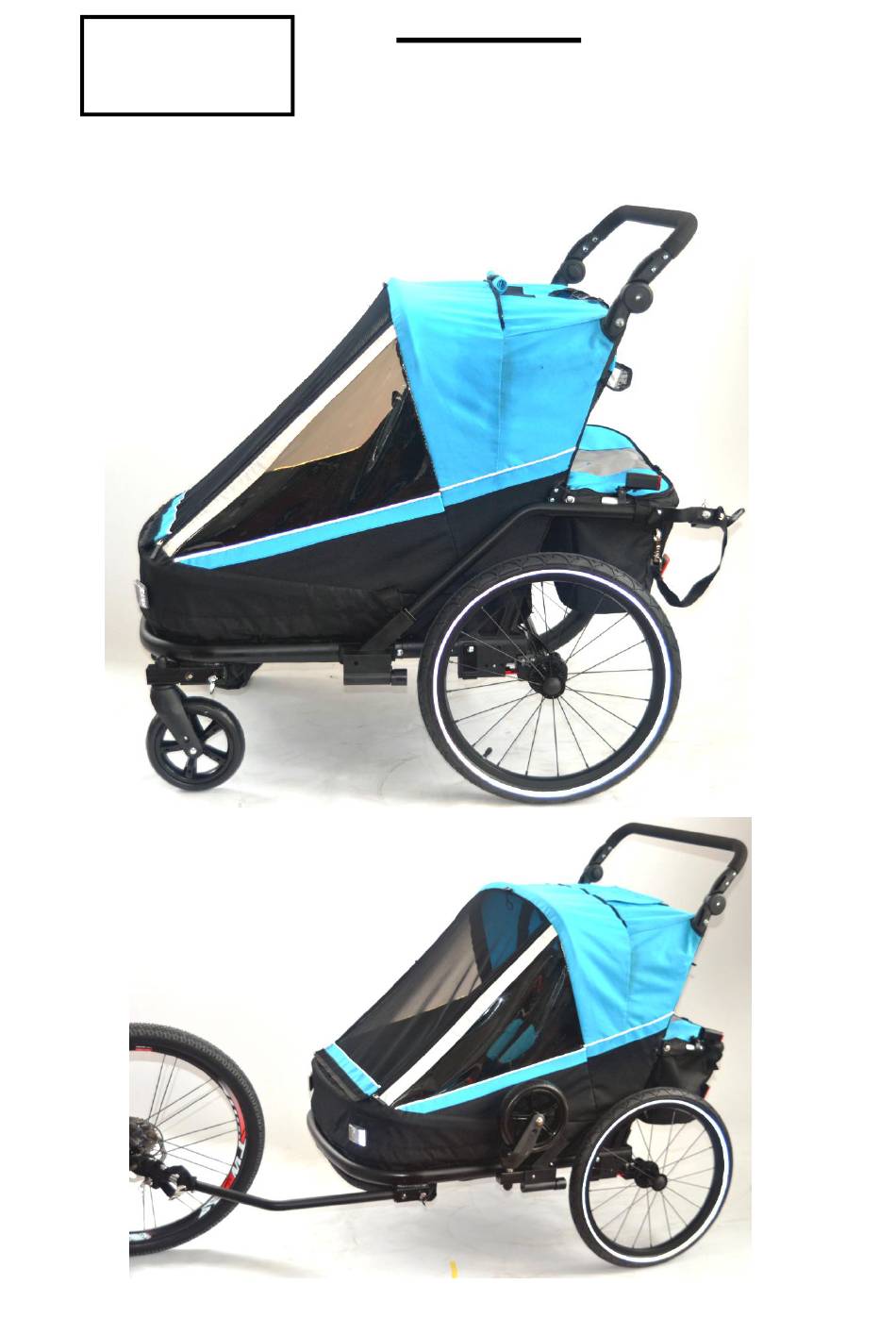

- Page 1 TRAILER BIKE STROLLER ITEM:BTA42S...
-
Page 2: Safety Manual
OWNER’S ASSEMBLY AND SAFETY MANUAL ● User instructions ● Safety guidelines ● Exploded view for clarification only ● Bill of parts ● Assembly and disassembly of the frame & seat/As stroller ● Securing and removing children & parcels ● Parking and release ●... - Page 3 USER INSTRUCTIONS The trailer/stroller is designed and constructed to provide a portable, comfortable and sturdy addition to your outdoor ventures. IMPORTANT – READ CAREFULLY AND KEEP FOR FUTURE REFERENCE. IMPORTANT PASSENGERS AND RIDERS SHOULD ALWAYS WEAR PROPERLY FITTING, APPROVED CYCLING HELMETS WARNING Failure to follow these warnings and assembly instructions could result in serious injury or death.
-
Page 4: Safety Guidelines
PRE-RIDE SAFETY CHECK Check to ensure hitch connector and safety strap are secured. BUCKLE UP! Check seat harness and secure all baggage. Check TIRE AIR PRESSURE. Inspect bike and trailer condition before each use. HELMETS ON! Ensure rider and child helmets are on and secure. ... - Page 5 capacity and practice in a safe area. Do not use your trailer until you have become accustomed to how it affects your bicycle handling. Plastic bags can be dangerous. To avoid danger of suffocation, keep SUFFOCATION WARNING: plastic bags away from babies and children. SAFETY TIPS FOR RIDING ...
- Page 6 EXPLODED VIEW FOR CLARIFICATION ONLY...
- Page 7 BILL OF PARTS NUMBER NAME Q’TY NUMBER NAME Q’TY Base Tube Spring Rear Tube Safety belt Canopy Tube Lock pin Support Tube Bolt Handle Bar Wheel holder base Fold-able Tube Wheel holder Luggage Tube Fold-able base Axle Tube Fold-able wire Fork Tube Fold-able pin Tow Tube...
- Page 8 ASSEMBLY AND DISASSEMBLY OF THE FRAME & SEAT AS STROLLER 1. Take the product out of the box. 2.Hold handle bar and pull back. 3.Install wheel holder base Check the foldable pin is locked. 5. Assembly front wheel. 6.Check Locator Pin stuck and safety pin locked 7. Assembly rear wheel & check wheel is locked. 8.
- Page 9 9. Pull zipper , Ring net cloth and is fixed on the ring 10. Check the seat buckle in the correct position. two children one child SECURING AND REMOVING THE CHILDREN & PARCELS When you secure the children in the seat or remove the children from the seat, always check if the trailer is stably connected with the bike.
- Page 10 Install the buckle Press button to release buckle Please read the following carefully printed warnings CAUTION The head without helmet shall have a minimum distance of 50 mm and no contact to any interior surface of the roof. It is recommended that a helmet according to EN 1078 should be worn.
- Page 11 PARKING AND RELEASE Step on the red parking pole with your right foot. 2.Check for safe parking. 3.Pull up the parking pole and release the stop 3-segment shock absorption regulation Pull up red LOCK pin and pull out the rear wheel. Press down the pin and push the knob to the desired location...
- Page 12 ASSEMBLY AND DISASSEMBLY OF THE FRAME & SEAT AS TRAILER 1. Loosen safety pin and pull out front wheel. 2. Insert front wheel into wheel holder base . 3. Fasten the front wheel with magic 4. Install tow bar into square tube and lock safety pin.. 5.
- Page 13 8.Insert safety pin at the hole level. 9.Turn the key to lock the safety pin and check. 10. pass safety strap though chain stay pipe of bike. 11.Hang the hook on the D ring (see picture) FOLDING PRODUACT 1. Remove the red second lock and rotate the folding plastic piece backward at the same time 3.Push the frame forward...
-
Page 14: Maintenance
REMOVING REAR WHEEL Pull up red LOCK pin and pull out the rear wheel. NOTE: Removal of towing rods and front wheels and flag is the opposite of the installation step. DISASSEMBLY , FOLDING AND STORAGE For partial or complete disassembly, folding and storage, reverse the above-mentioned process and be sure to insert the safety pins fully and lock it with the spring clips. - Page 15 Remove front wheel or tow bar. Insert the front forked tube into the left and right sides respectively. Install the front wheel in the direction shown on the front fork. Tighten and disassemble Place the front wheel and tow bar in the pictorial position and secure it. OPTION: Handle brake...
- Page 16 Rotate the brake driver backwards. Brake hoof ejected brake tire. Release the brake by releasing the brake handle. OPTION: Sunshade installation...
- Page 17 Zipper as shown 2 sides fixed as illustrated OPTION: Rain cover installation Zipper as shown 2 sides fixed as illustrated Follow the illustration to fix the magic paste. Roll it up as shown when you don't need it.
