Summary of Contents for Mactech MESD-BC Series

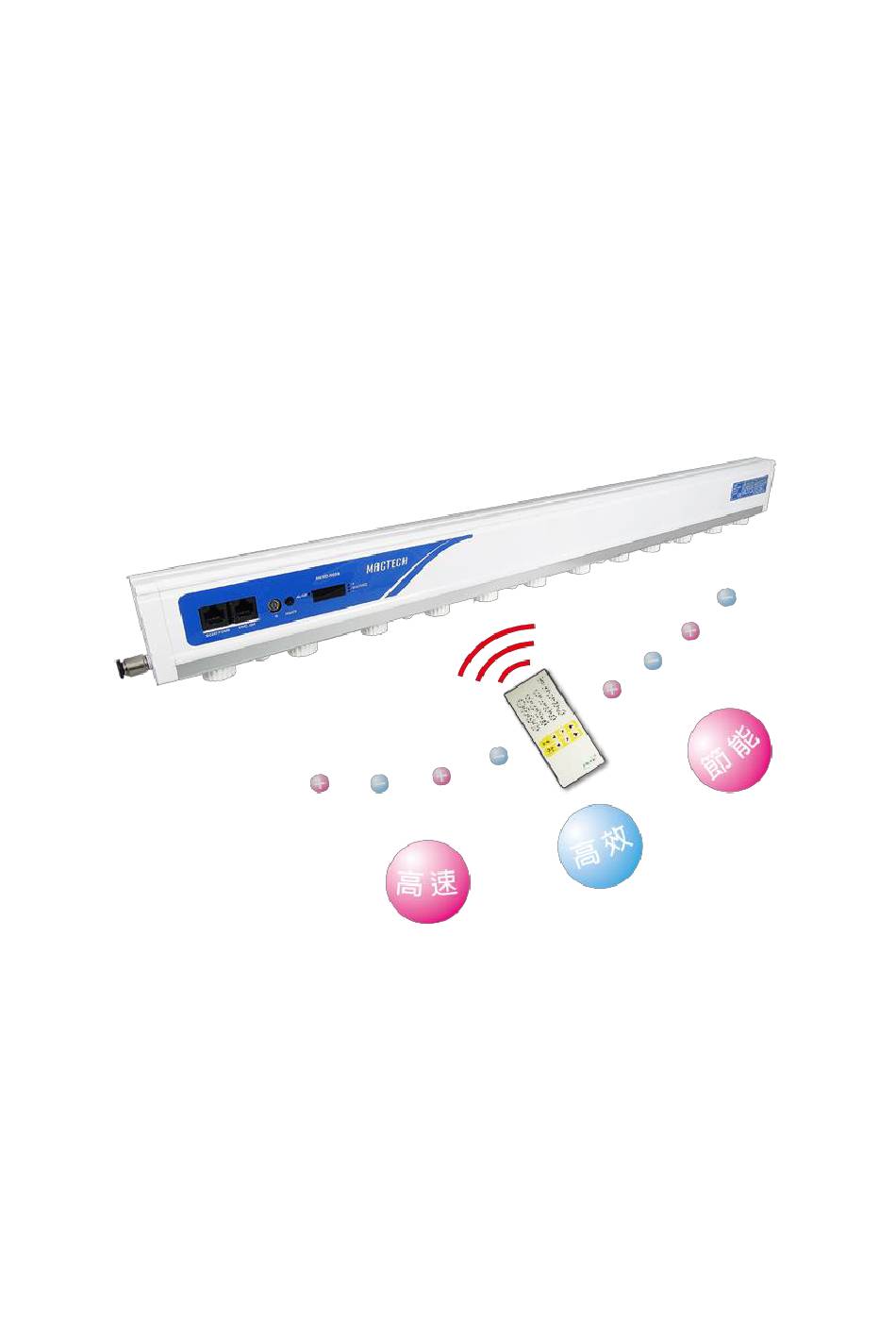

- Page 1 MESD-BC SERIES BAR TYPE IONIZER INSTRUCTIONS Please read the instructions carefully before using the ionizer, and keep it for future reference. MA-BC04...
- Page 2 INDEX Product Description Dimension Product Specification Abnormal Wiring Figure Power Supply Installation Manual guide ID Control / Adjust and Remote Setting Remote Controller Instruction Remote Controller Valid Range Ion Proportion Setting Status Display Wiring Instruction Consumable Attention...
-
Page 3: Product Instruction
Product Instruction 1. Input power DC24V 2. Serial connection port (Maximum 16 sets) 3. ID setting knob (Press ID channel on the remote controller before using the ionizer) 4. Remote controller infrared receive port 5. System status display 6. Assisting nozzle 7. - Page 4 Dimension Unit:mm No. of No. of Model Fixtures Probes MESD-BC036 MESD-BC060 MESD-BC084 MESD-BC108 1034 MESD-BC132 1267 1223 1189 1112 MESD-BC156 1500 1456 1422 1345 MESD-BC180 1733 1689 1655 1578 MESD-BC204 1966 1922 1888 1811 MESD-BC228 2199 2155 2121 2044 MESD-BC252 2432 2388 2354...
-
Page 5: Product Specification
Product Specification Abnormal Wiring Figure Output method: Open collector Brown White Black Blue Black... -
Page 6: Power Supply
Power Supply Rated power output DC24V. Please ensure the product is connected with ground wire for safety consideration. Installation Ambient temperature range: 0~50 ℃ , humidity range: 35~65%RH Avoid installing in which the ambient temperature rapidly changes. ... -
Page 7: Manual Guide
Manual Guide Install the ionizer in appropriate place. Connect with the air pressure tube and power. Adjust the ID setting knob on the ionizer. For example, the knob turns to “1” which means the remote controller has to set up the same ID channel “1”. -
Page 8: Remote Controller Instruction
Remote Controller Instruction The infrared transmitter The infrared transmitter on the remote Power controller corresponds to the infrared ID adjustment panel receive port on Press ID channel on the the ionizer. remote controller corresponds to ID setting knob on the ionizer. Ion proportion Setting Output High Maximum: D70... - Page 9 Static Elimination Performance Static elimination effective zone and time Ion proportion Setting Ion proportion Setting Positive ions 70:30 65:35 60:40 55:45 Negative ions Ion proportion 50:50 Setting Positive ions 30:70 35:65 40:60 45:55 Negative ions...
-
Page 10: Frequency Setting
Frequency Setting Operating Distance(mm) Frequency Location Short Distance 100-300 45-30Hz Middle Distance 300-1000 30-20Hz Far Distance 1000-2000 15-10Hz... -
Page 11: Status Display
Status display Signal Display Decription Standby mode. It shows the current ion proportion and can adjust It shows the current frequency and can adjust it. n- 1 The current ID is 1 and so on. Balance Ion output achieves an ion balance state. －... - Page 12 Wiring Wire color Description Brown DC24V Voltage Blue Ground wire (0V) White Abnormal output signal Black GND output signal Orange Ground wire for connecting with the machine. Orange Black (Gray) Blue Brown Consumable MESD-BP301 MESD-BP302 放電針 輔助噴嘴 Electrode probe Assisting nozzle...
- Page 13 Attention If there is a volatile or inflammable material or corrosive gas around the ionizer that may cause fire and explosion, please do not use the ionizer in this kind of environment. Due to the high voltage generates from the ionizer, please keep water, oil and inflammable material away from the ionizer;...
