Typhoon 2M Instruction Manual
Typhoon is a CNC machine moulded, CAD designed slope model
aircraft. This plane has had a development period of over 2 years,
and four separate models to evolve into the highly agile thoroughbred
that you now own. We hope you have a lot of fun with it.
RCRCM Aeroteam, proud manufacturers.

Unpacking

Please unpack the plane carefully making sure that you have
•
retrieved all of the small parts.
Don't throw the box out until you are 100% sure it's empty!
•
Check that all the parts are supplied.
•
If any are missing please contact your vendor immediately.
•

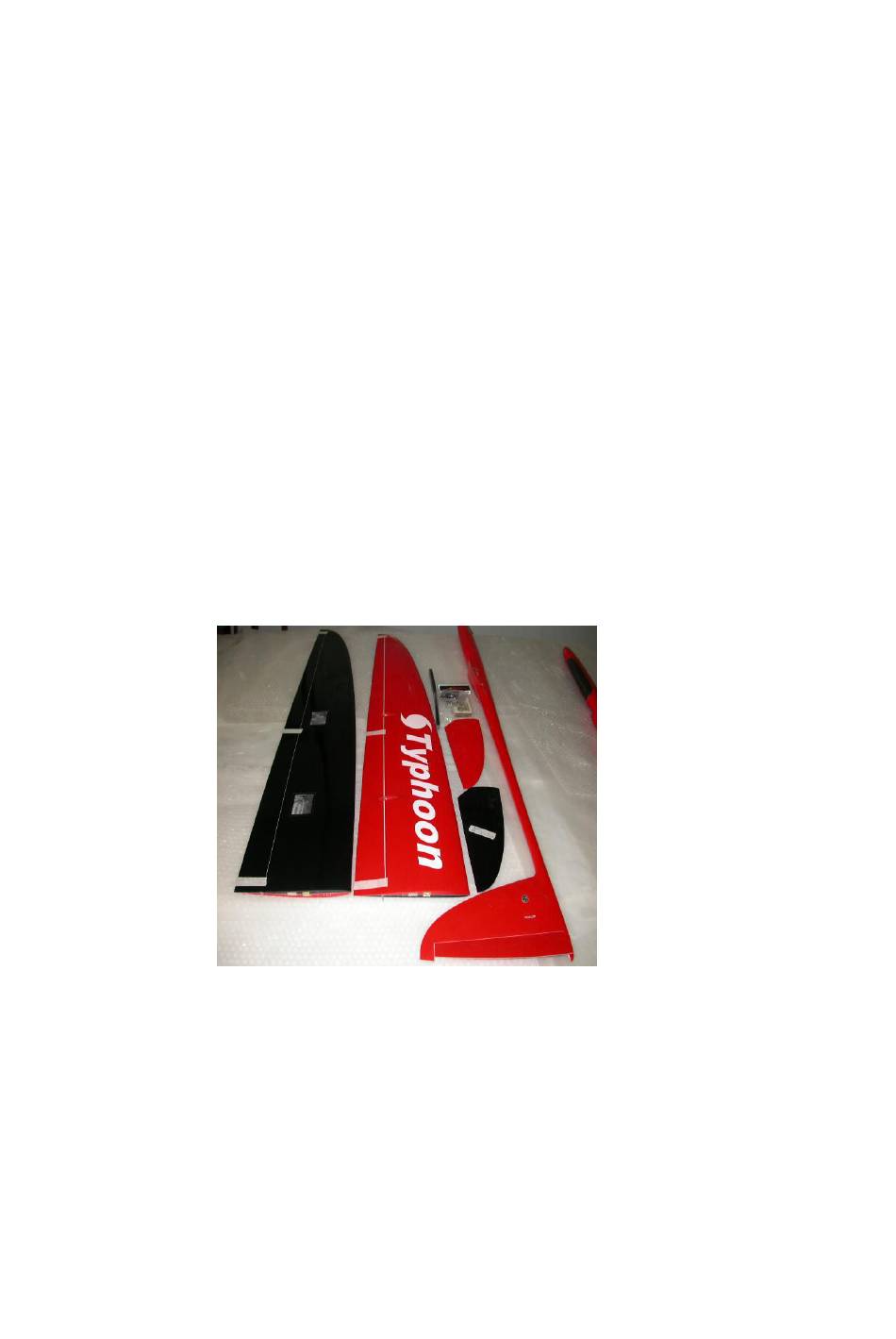

Typhoon 2M parts

Before construction

Start with a clean workbench and cover it with some foam, or a
•
soft thick cloth to protect the finish of the wings and fuselage as
you work.
Be careful not to place the wings or fuselage on any screws or
•
tools etc that can dent or scratch the skin.
