Summary of Contents for Split-fire Sales Fast Freddy Series

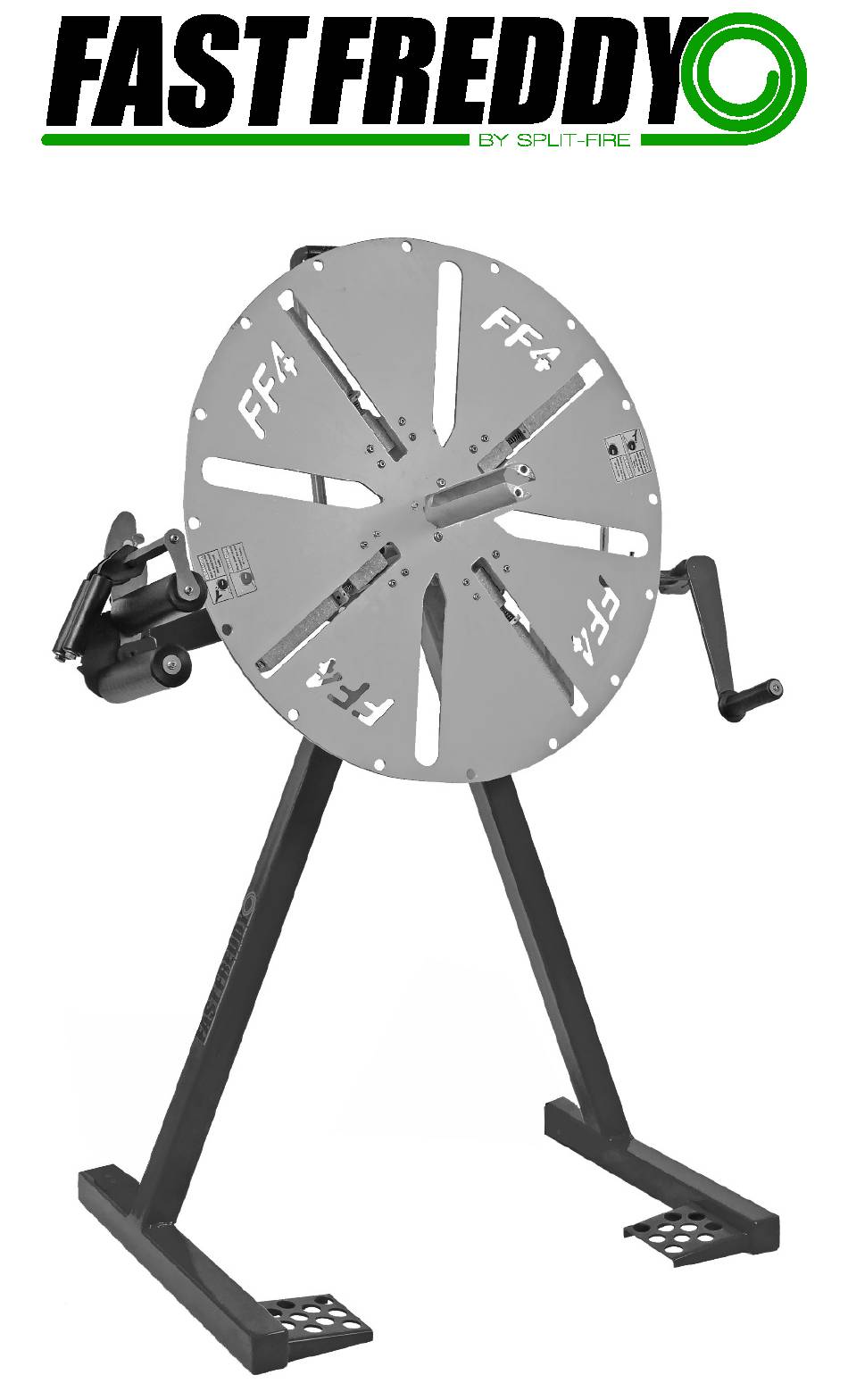

- Page 2 Thank You for Purchasing a Fast Freddy Winder! We appreciate having you as our customer and wish you many years of safe and satisfactory operation with your machine. SPLIT-FIRE SALES INC. 285633 Airport Road Norwich, ON N0J 1P0 Canada 1-877-548-3473 / 519-468-3647...
-
Page 3: Table Of Contents
Table of Contents 1. Introduction 1.1 How to use your Owner’s Manual 1.2 Product Identification 2. Safety 2.1 Safety Labels 2.2 Operator Training 2.3 Operation & Work Site Safety 3. Operating 4. Assembly 4.1 Fast Freddy 4 & 6 4.2 Fast Freddy 2 5. -
Page 4: How To Use Your Owner's Manual
Fast Freddy Hose Winder Introduction Owners Manual How to use your Owner’s Manual By reading the operator’s manual you will help avoid unnecessary personal injury and/or damage to the winder. The information recorded in this manual will help you use this winder safely and effectively. - Page 5 Fast Freddy Hose Winder Introduction Owners Manual Please carefully read and understand the warnings about safety concerns relating to machine damage and important servicing information. Please read all these messages to avoid personal injury and machine damage. The three main messages will start with: WARNING!!!: which suggests, a strong chance of...
-
Page 6: Product Identification
Fast Freddy Hose Winder Introduction Owners Manual Product Identification If you ever need to contact your dealer or the manufacturer for parts or questions regarding the operation or servicing of the machine, it is important to have the model number as well as all the necessary identification numbers. - Page 7 Fast Freddy Hose Winder Introduction Owners Manual The Fast Freddy Winder is manufactured by Split-Fire Sales Inc., an Original Equipment Manufacturer (OEM) based in Canada. Split-Fire products have been designed and engineered to be safe, productive, long lasting machines using design principals not found in other comparable products.
-
Page 8: Safety Labels
Fast Freddy Hose Winder Safety Owners Manual Safety Labels The product safety labels shown in the section below are very important. They are placed in areas on the winder that draw the attention of the operator to potential safety hazards associated with the winder. -
Page 9: Operator Training
Fast Freddy Hose Winder Safety Owners Manual Operator Training WARNING!!! Carefully read and understand all the instructions in the operator’s manual before operating or servicing your hose winder. If any doubt or question arises about the safe and/or correct method of performing anything in this manual, contact your local dealer or the manufacturer. -
Page 10: Operation & Work Site Safety
Fast Freddy Hose Winder Safety Owners Manual Operation & Work Site Safety Inspect your machine each time before use. Special attention should be taken that all damaged or missing parts are replaced, and that all the safety decals highlighted in the safety labels section are in place, clear and visible on the machine. - Page 11 Fast Freddy Hose Winder Safety Owners Manual Always slow down crank speed when nearing the unwound end of the hose, cable or rope to prevent whiplashing action. Take frequent breaks and be alert when using the winder. Do not operate your winder in enclosed areas or around other pieces of moving machinery.
- Page 12 Fast Freddy Hose Winder Operating Owners Manual Operation Make sure that you have read and understand all safety recommendations before operating the winder. Disengage the wheel lock on the right side of the machine. Remove the crank handle from its holder and insert it into the reel plate stem for turning the wheel.
-
Page 13: Operating
Fast Freddy Hose Winder Operating Owners Manual Determine the size of the inner diameter opening you desire and release one or more of the spring actuated detent arms and make sure it is locked in place. Using one detent arm only will give you the smallest opening. - Page 14 Fast Freddy Hose Winder Operating Owners Manual When winding small diameter cables use the detent shoulders provided with the winder to prevent the cable from sliding off the detent arm. Take the lead end of the hose, cable or rope that is to be wound and secure it through the reel plate stem.
- Page 15 Fast Freddy Hose Winder Operating Owners Manual Secure the hose, cable or rope through the Fair Lead, threading it flush through the Vertical Rollers and then down through the Horizontal Rollers. Use the ratchet action & thumbscrews to adjust the position of the guide rollers.
- Page 16 Fast Freddy Hose Winder Operating Owners Manual The Guide Arm can swing completely down and out of the way for manual guiding of the hose by the operator. Turn the guide arm lock clockwise or counter clockwise to loosen or tighten the arm.
- Page 17 Fast Freddy Hose Winder Operating Owners Manual Remove wound end from the Fair Lead and tie off the wound hose, cable or rope with twine or tie straps. The wheel has four open tie slots cut into the face of the wheel to conveniently access the wound up hose from two sides when tying it down.
- Page 18 Fast Freddy Hose Winder Assembly Owners Manual Assembly – Fast Freddy 4 & 6 Please follow the assembly instructions provided. Tools required for assembly include: 9/16” Wrench 9/16” Ratchet / Socket 3/16” Allen Key 1/2” Wrench ...
-
Page 19: Assembly
Fast Freddy Hose Winder Assembly Owners Manual 1. Find the Main Bearing Mount. Note: the 4 bolts, (3 bolts for Wall and Hitch Mount Models) are assembled in the bearing mount before shipping. Remove these bolts for the next step. 2. - Page 20 Fast Freddy Hose Winder Assembly Owners Manual 3. Find the Guide Arm, and remove the hinge bolt and retract the lock pin. Assemble the Guide Arm to the Bearing Mount and insert the hinge pin. (Do not tighten bolt. Bolt must only be snug). Then, add the nut to the bolt and lock the bolt.
- Page 21 Fast Freddy Hose Winder Assembly Owners Manual 4. Find the Aluminum Reel Plate Assembly and slide the aluminum hub over the bearing shaft. The holes must be aligned between the aluminum bracket and main bearing shaft. Insert the bolt into the hole. (This fastens the Reel Plate to the Leg/Bearing Assembly.)
- Page 22 Fast Freddy Hose Winder Assembly Owners Manual 5. Insert the Reel Plate Stem into the threaded hole on the Reel Plate face. (Note: This thread is aluminum and must be coated with anti-seize to prevent seizing.) Screw the Reel Plate Stem into the Reel Plate fully by hand. (DO NOT Force pin into thread!) 6.
- Page 23 Reel Plate Stem. After assembled read and understand the operation instructions contained in the manual before using your Fast Freddy winder. f you have any questions concerning assembly, missing parts or hardware, please contact Split-Fire Sales Inc.
-
Page 24: Fast Freddy
Fast Freddy Hose Winder Assembly Owners Manual Assembly – Fast Freddy 2 Please follow the assembly instructions provided. Tools required for assembly include: 7/16” Wrench ½” Wrench ¼” Allen Key Your Fast Freddy Winder is shipped in a box. All Components required to assemble your Fast Freddy will be packed inside as shown by the illustration. - Page 25 Fast Freddy Hose Winder Assembly Owners Manual 1. Find the Main Bearing Mount. Note: the 4 bolts are assembled in the bearing mount before shipping. Remove these bolts for the next step. 2.Assemble the 2 legs to the Bearing Mount. Reinsert the 4 bolts back into the Bearing Mount and tighten.
- Page 26 Fast Freddy Hose Winder Assembly Owners Manual 3. Find the Guide Arm, remove the hinge bolt and retract the lock pin. Assemble the Guide Arm to the Bearing Mount and insert the hinge pin. (Do not tighten bolt. Bolt must only be snug).
- Page 27 Fast Freddy Hose Winder Assembly Owners Manual 4. Locate the carry handle. Remove the two bolts from the Bearing Mount. Assemble the carry handle to the Bearing Mount with 2 bolts.
- Page 28 Fast Freddy Hose Winder Assembly Owners Manual 5. Find the Aluminum Reel Plate Assembly and slide the center of the real plate over the bearing shaft. Insert the bolt into the hole. (This fastens the reel plate to the leg/bearing assembly.)
- Page 29 Fast Freddy Hose Winder Assembly Owners Manual 6. Insert the Reel Plate Stem and bolt into the threaded hole on the Reel Plate face. Screw the Reel Plate Stem into the Reel Plate fully with an allen key (1/4”). (Do Not force pin into thread.)
- Page 30 Fast Freddy Hose Winder Assembly Owners Manual 7. Insert the crank handle into the holder next to the tool organizer when not in use. Check to make sure the 2 hand crank pins fit securely into the Reel Plate Stem.
-
Page 31: Storage
Fast Freddy Hose Winder Storage Owners Manual Storage Important! When storing your Fast Freddy winder special attention should be drawn to the areas listed below. After each use, make sure that the crank handle is firmly placed in the crank handle holder and that the wheel is locked. The left Guide Arm can swing down towards the frame to save space. -
Page 32: Warranty
Split-Fire Sales Inc. 2. has had placed upon or attached to it any part or product not sold or approved by Split-Fire Sales Inc. 3. has been damaged or is not used in conformity with the applicable instruction for the machine. - Page 33 Acceptance of a Split-Fire Sales product constitutes an agreement that Split-Fire Sales shall have no liability for any special or consequential damage. I have read and fully understand all of the above.
- Page 34 Fast Freddy Hose Winder Parts Breakdown Owners Manual Fast Freddy 2 Parts Breakdown...
-
Page 35: Parts Breakdown
Fast Freddy Hose Winder Parts Breakdown Owners Manual... - Page 36 Fast Freddy Hose Winder Parts Breakdown Owners Manual Fast Freddy 4 Parts Breakdown...
- Page 37 Fast Freddy Hose Winder Parts Breakdown Owners Manual...
- Page 38 Fast Freddy Hose Winder Parts Breakdown Owners Manual Fast Freddy 6 Parts Breakdown...
- Page 39 Fast Freddy Hose Winder Parts Breakdown Owners Manual...
