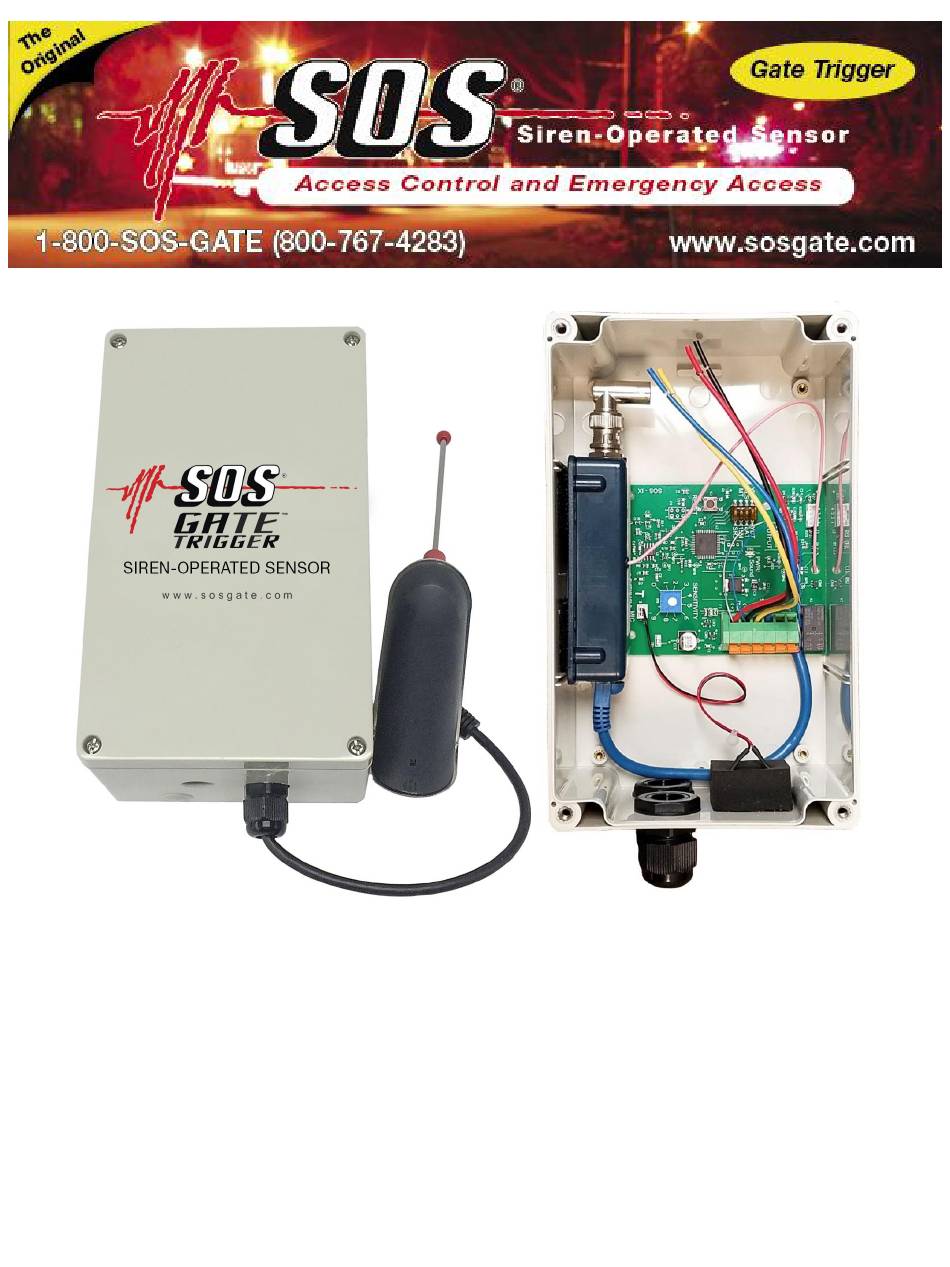

SOS Gate Trigger Installation Instructions

Mounting the Unit

1. Identify where you are going to mount the SOS Gate Trigger. This location should be inside the
fenced perimeter where outsiders are not able to easily access the unit. The antenna should have
a clear line of sight to the desired trigger area. Also excess noise will interfere with operation of
the "YELP" sensor so do not put it inside the gate motor enclosure or close to noisy machinery.
2. Remove the face place of the SOS Gate Trigger.
3. Using the screws provided, mount the SOS SILENT unit right side up with the antenna wire coming
out of the bottom of the enclosure. The enclosure has four pre-drilled holes for mounting.
Mounting the unit sideways or upside down can cause water damage and WATER DAMAGE will
void the warranty. If additional holes are drilled into the enclosure or if you use the small knock-
out hole in the bottom for wires, make these holes water tight with silicone.
702 Fairfield St. W. | Twin Falls, ID 83301 | 1-800-767-4283 | www.sosgate.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Gate Trigger and is the answer not in the manual?

Questions and answers

Summary of Contents for SOS Gate Trigger

  • Page 1 SOS Gate Trigger Installation Instructions Mounting the Unit 1. Identify where you are going to mount the SOS Gate Trigger. This location should be inside the fenced perimeter where outsiders are not able to easily access the unit. The antenna should have a clear line of sight to the desired trigger area.
  • Page 2 5 minutes. (See page 3) 7. TEST the connection by touching these two wires together momentarily and the gate should open. 8. Now attach the wires from Normally Open and Common to the SW1 Terminals on the SOS board. Reset Button...
  • Page 3 Tuning the RFID Antenna 14. To adjust the read distance from 10 feet up to 600 feet you will need a tuning kit (SOS-TUNE), sold separately. The kit comes with instructions on how to tune the read range to the desired distance.
  • Page 4 SOS recommends inviting an emergency responder out once each year to help you conduct a live siren test and an RFID tag test. This will ensure the SOS Gate Trigger remains in good working order. Most emergency responders will gladly perform this service but it is the gate owner’s responsibility to invite them.
