Noblex CDR-1029U Service Manual

Cd/wma player with radio and usb reader

Hide thumbs

page of 27

/ 27
Bookmarks

Quick Links

Download this manual

CD/WMA PLAYER WITH RADIO

AND USB READER

MODEL:

Please read and follow these instructions before using your unit.

OVERVIEW OF THE PLAYER

14 15

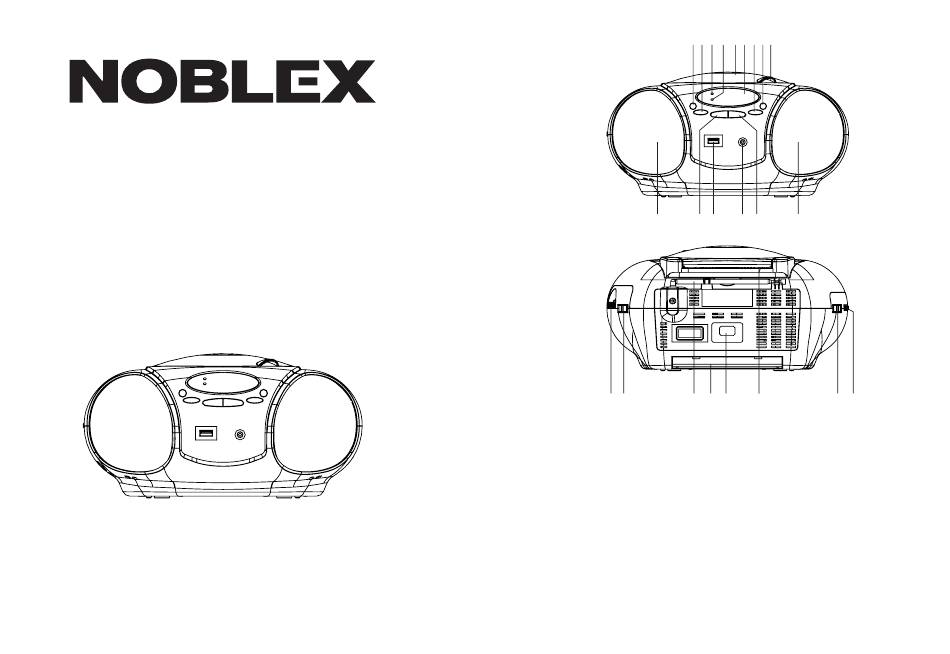

LOCATION OF CONTROLS

1. PROGRAM BUTTON

2. SKIP/SEARCH DOWN BUTTON

3. POWER INDICATOR

4. CD DOOR

5. LCD DISPLAY

6. SKIP/SEARCH UP BUTTON

7. MODE BUTTON

8. CD DOOR OPEN AREA

9. SPEAKERS

10. STOP/USB BUTTON

11. USB PORT

1 2 3

4 5 6 7 8

10 11

12 13

19 20

12. AUX IN JACK

13. PLAY/PAUSE BUTTON

14. TUNING CONTROL

15. BAND SWITCH

16. FM TELESCOPIC ANTENNA

17. AC SOCKET

18. BATTERY COMPARTMENT

19. FUNCTION SWITCH

20. VOLUME CONTROL

21.

FOLDING HANDLE

22. FM ST. INDICATOR
