E40.0.2x.6C-01
from version 2.4
Installation and operating manual
EASY
80NS-K
LOG
Please read these instructions carefully before use!
Please consider the safety instructions!
Please keep for future reference!
GHM GROUP - Greisinger
GHM Messtechnik GmbH | Hans-Sachs-Str. 26 | 93128 Regenstauf | GERMANY
Tel.: +49 9402 9383-0 |
Data logger for standard signals
EASY
LOG
info@greisinger.de
| www.greisinger.de
80NS-...
EASY
80NS-W
LOG
WEEE-Reg.-Nr. DE 93889386
Advertisement
Table of Contents
Summary of Contents for GHM Greisinger EASYLOG 80NS Series

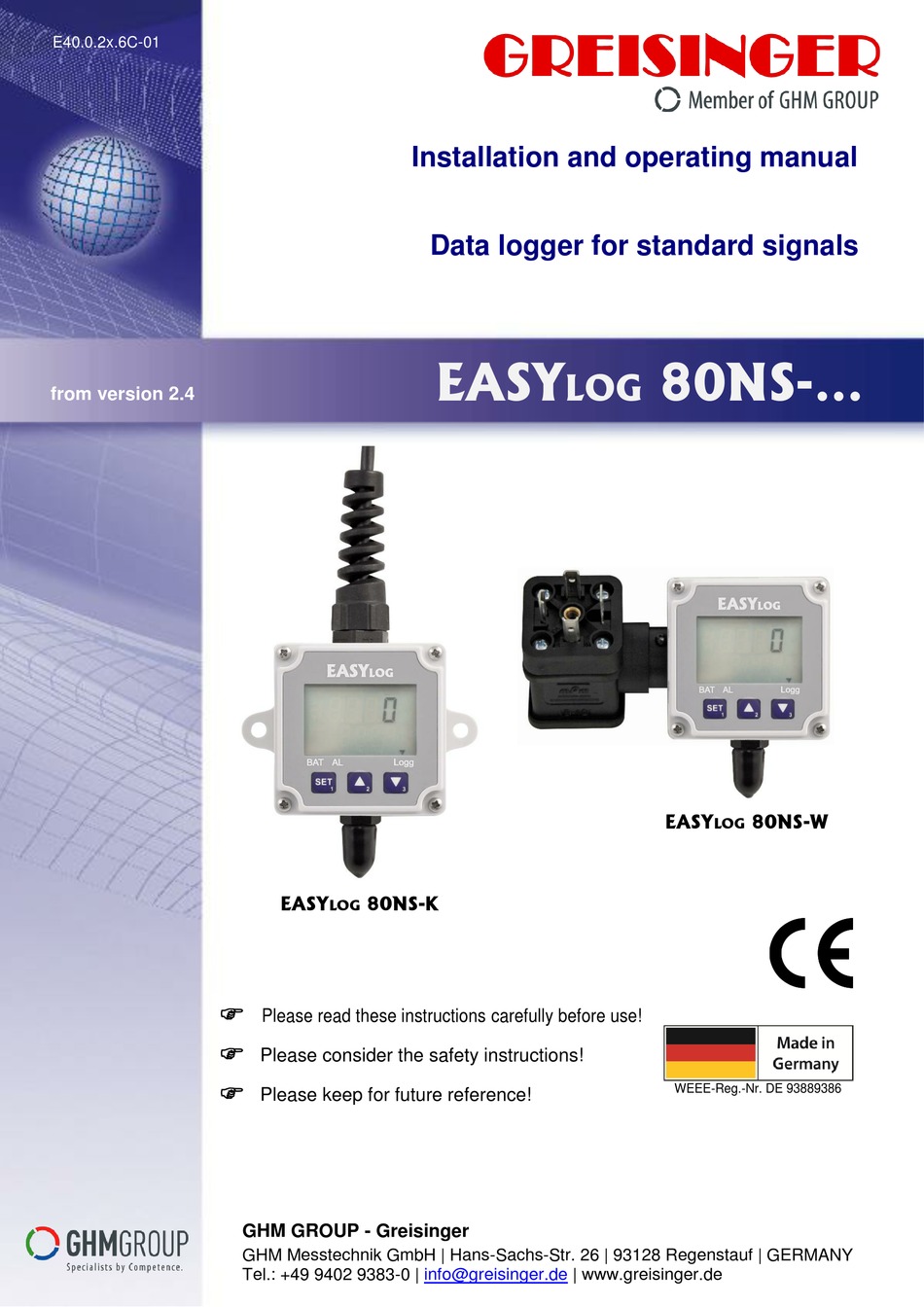

- Page 1 E40.0.2x.6C-01 Installation and operating manual Data logger for standard signals EASY 80NS-… from version 2.4 EASY 80NS-W EASY 80NS-K Please read these instructions carefully before use! Please consider the safety instructions! WEEE-Reg.-Nr. DE 93889386 Please keep for future reference! GHM GROUP - Greisinger GHM Messtechnik GmbH | Hans-Sachs-Str.
-
Page 2: Table Of Contents
E40.0.2x.6C-01 Operating Manual EASY 80NS page 2 of 16 Content General note ......................2 Safety ......................... 3 2.1 Intended Use......................3 2.2 Safety signs and symbols ..................3 2.3 Skilled personnel ..................... 3 2.4 Safety guidelines ..................... 4 Product description ....................5 3.1 Required accessory .................... -
Page 3: Safety
E40.0.2x.6C-01 Operating Manual EASY 80NS page 3 of 16 2. Safety 2.1 Intended Use The logger EASYLOG 80NS-K-… and EASYLOG 80NS-W-… are especially designed for long-time monitoring of standard signals The combination of low power consumption with high battery capacity ensure a long record- ing time. -
Page 4: Safety Guidelines
E40.0.2x.6C-01 Operating Manual EASY 80NS page 4 of 16 2.4 Safety guidelines This device has been designed and tested in accordance with the safety regulations for electronic devices. However, its trouble-free operation and reliability cannot be guaran- teed unless the standard safety measures and special safety advises given in this manual will be adhered to when using the device. -
Page 5: Product Description
E40.0.2x.6C-01 Operating Manual EASY 80NS page 5 of 16 3. Product description 3.1 Required accessory The EASY 80NS-… is configurated, started and read-out via the EASYBus-interface. Therefore the following accessories are required: Level converter - RS232 <> EASYBus (i.e. EBW 1, EBW 64, EBW 240) - USB <>... -
Page 6: Display And Control Elements
E40.0.2x.6C-01 Operating Manual EASY 80NS page 6 of 16 4. Display and control elements 4.1 Display Main display Secondary display Display element for max / min Logg: indicates that logger is recording ... -
Page 7: Assignment Of The Angle-Type Plug
E40.0.2x.6C-01 Operating Manual EASY 80NS page 7 of 16 5.2.1 Assignment of the angle-type plug Standard assignment of the angle-type plug: … – EV010 (0-10V) … – E420 (4-20mA) … – E020 (0-20mA) … – EV01 (0-1V) wire colour Contact no.: …... -
Page 8: Operation
E40.0.2x.6C-01 Operating Manual EASY 80NS page 8 of 16 6. Operation 6.1 Operating possibilities at the device - display selection Function Procedure Push button shortly The max-value is displayed for 4 seconds. (The max-value display function is signalled by the display el- Display max-value ement “MAX”). -
Page 9: Operating Possibilities Via Software Gsoft 40K
E40.0.2x.6C-01 Operating Manual EASY 80NS page 9 of 16 Push button for about 5 seconds. The main display shows “HoLd”. The secondary display shows “no”. To stop recording select “YES” with the arrow key (button ) and verify with Stop recording Note: If no key is pressed for more than 2 min, the menu is quit without saving. -
Page 10: Operating Displays
E40.0.2x.6C-01 Operating Manual EASY 80NS page 10 of 16 8. Operating displays The EASY provides two LCD-displays: 7 mm (main display) and 5.8 mm (secondary display). 8.1 Measured value display The LCD mainly displays the measured values: MEASURED VALUE DISPLAY a) main display: scaled display value sec. -
Page 11: System Messages
E40.0.2x.6C-01 Operating Manual EASY 80NS page 11 of 16 8.3 System messages BATTERY • display of the BAT-arrow left hand down: The EASY battery is almost spent and needs to be replaced. The data recording is still active. • permanent display The battery is spent and the recording has been automatically stopped (even if at EASYBus-operation). -
Page 12: Specifications
E40.0.2x.6C-01 Operating Manual EASY 80NS page 12 of 16 9. Specifications Input signal, Note: Input is not isolated from EASYBus measuring range 80NS-..-E420 4.00 … 20.00 mA EASY 80NS-..-E020 0.00 … 20.00 mA EASY 80NS-..-EV010 0.00 … 10.00 Volt EASY 80NS-..-EV01 0.00 …... -
Page 13: Decommissioning, Reshipment And Disposal
E40.0.2x.6C-01 Operating Manual EASY 80NS page 13 of 16 Nominal temperature 25 °C -25.0 … +60.0 °C Operating temperature -30.0 … +70.0 °C Storage temperature Housing ABS housing, transparent screen made of polyester Dimensions 48,5 × 48,5 × 35,5 mm (L × W × D) without sensor cable, angle-type plug and EASYBus plug (…... -
Page 14: Frequently Asked Questions [Faq]
E40.0.2x.6C-01 Operating Manual EASY 80NS page 14 of 16 11. Frequently asked questions [FAQ] Problem: The logger cannot be stopped via keys. “Logger stop via buttons disabled” has been activated at the configu- Possible reason: ration of the logger. Deactivate this function by means of GSOFT 40K (at tab „settings“). Remedy: Problem: The logger cannot be stopped both via keys and GSOFT 40K. -
Page 15: Device Options
E40.0.2x.6C-01 Operating Manual EASY 80NS page 15 of 16 12. Device options Additional information’s for options of the EASY 80NS-… 12.1 ALARM With the option „ALARM“ the device has an additional switching output (NPN) for the alarm function of the device. In result of the option there are following extensions: Device connection: Alarm output... - Page 16 E40.0.2x.6C-01 Operating Manual EASY 80NS page 16 of 16...
