Populo CIDL-2003 User Manual

20v max lithium-ion impact driver kit

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

BY THE PEOPLE FOR THE PEOPLE

USER MANUAL

20V MAX LITHIUM-ION

IMPACT DRIVER KIT

CIDL-2003

WHAT'S IN THE BOX

Battery Pack

Battery Charger

Belt Clip

Impact Driver

Tool Bag

Bit X 2

Please carefully read this user manual before operating the impact driver.

Made in China

Table of Contents

Need help?

Do you have a question about the CIDL-2003 and is the answer not in the manual?

Questions and answers

Summary of Contents for Populo CIDL-2003

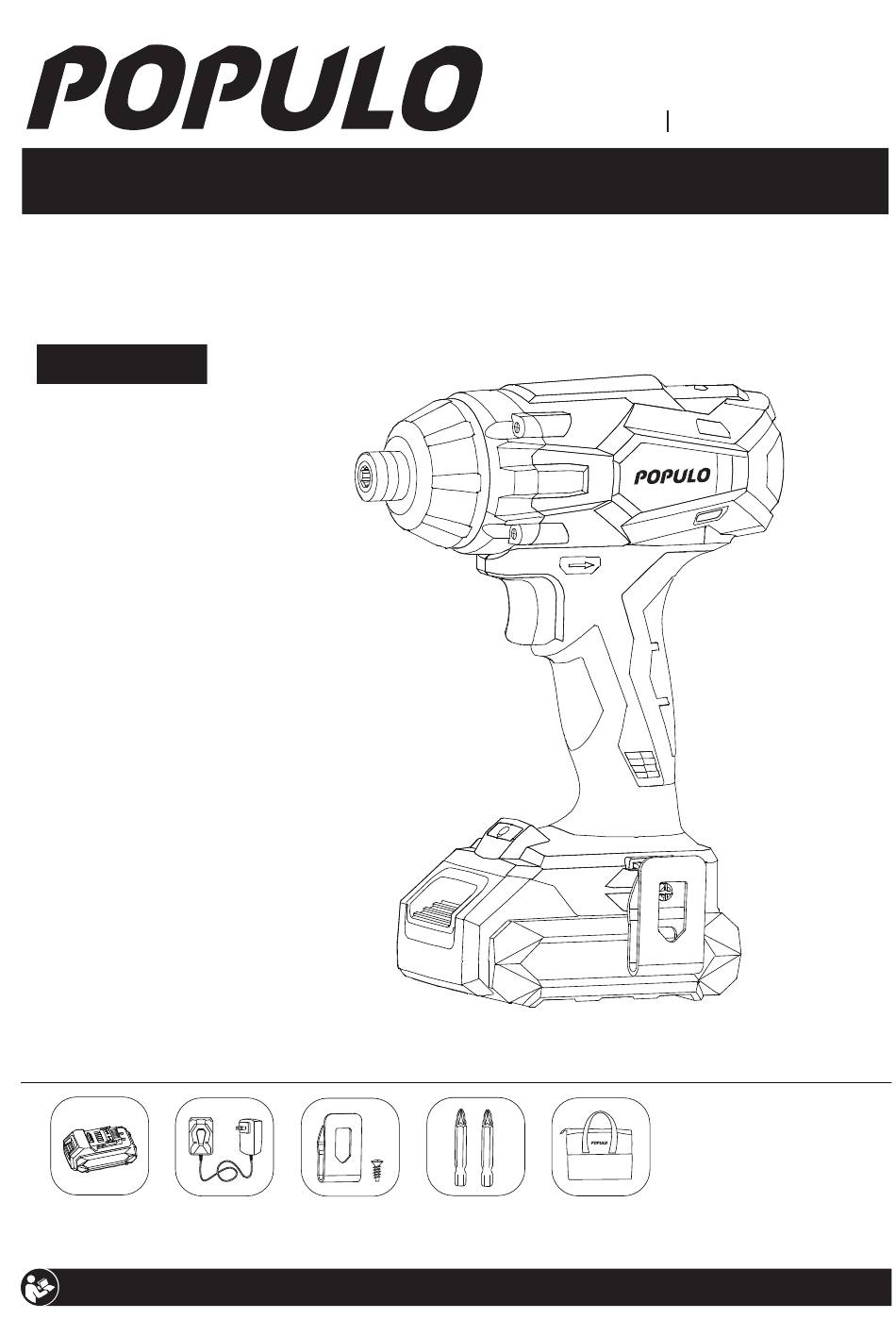

Page 1 BY THE PEOPLE FOR THE PEOPLE USER MANUAL 20V MAX LITHIUM-ION IMPACT DRIVER KIT CIDL-2003 WHAT’S IN THE BOX " Battery Pack Battery Charger Belt Clip Impact Driver Tool Bag Bit X 2 Please carefully read this user manual before operating the impact driver.
Page 2: Electrical Safety Warnings
Be sure to save these instructions and any other documents supplied with this unit for future reference. Note: Populo cordless tools are interchangeable for use in the United States and Canada. Note Note: Double insulation does not take the place of normal safety precautions when operating this tool. The insulation system is added to GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read all safety warnings and all instructions.
Page 3: Impact Driver Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS (CONT.) Power tool use and care ■ Do not force the power tool. Use the correct power tool for your application. The correct power tool will do a better and safer job when used for its designed purpose. ■...
Page 4 BATTERY PACK AND CHARGER SAFETY WARNINGS WARNING! This manual contains important safety and operating instru- citons for your battery pack and charger. Before using the charger, read all instructions and cautionary markings on the charger, battery pack and the product using the battery pack. shock or electrocution.
Page 5: Know Your Product
KNOW YOUR PRODUCT SPECIFICATIONS Voltage: 20VDC Max Chuck Size: 1/4" Quick Connect No Load Speed: 0-2,900/min Impact Rate: 0-3,000ipm Max.Torque: 1,770 in-lbs. Battery: 20V Max 1.5Ah Li-Ion Charge Time: Approx. 60-min. Weight: 3.12 lbs. (Including 1 battery) 1. Drive Bit Retaining Ring 3.
Page 6: Unpack And Set-Up
UNPACK AND SET-UP BATTERY PACK AND CHARGING CAUTION: The charger for this product should be protected by a leakage current device (rated at 30mA or less). discharging (through use of the tool) for the battery to reach its optimum performance/runtime. Charging Your Lithium-ion Battery Battery Gauge Indicator The purchased battery is...
Page 7: Installing/Removing Battery Pack
UNPACK AND SET-UP (CONT.) INSTALLING/REMOVING BATTERY PACK Removing the Battery Pack Installing the Battery Pack Slide the battery pack into the 1. Hold down the battery impact driver base until it clicks pack and release button. into place. 2. Slide the battery pack out.
Page 8: Operation
OPERATION CONTROLS Variable Speed Trigger Direction of Forward/Reverse Lever (Forward/Reverse/Center Lock) The variable speed switch trigger delivers high speed with increased trigger pressure and lower speed with decreased Position the direction of forward/reverse lever to the left of the trigger pressure. switch trigger (press the forward arrow in) for forward operation.
Page 9: Driving Procedure
OPERATION (CONT.) DRIVING PROCEDURE 1. Depress and release the 4. Hold the driver firmly against variable speed trigger to ensure the fastener to stop it slipping. it is not locked. 2. Check whether the forward/reverse lever is on the speed trigger to start the driver. desired setting.
Page 10: Battery Protection System
OPERATION MAINTENANCE Note: unauthorized person. Battery Protection System The output power automatically cuts off if the tool and/or battery gets overload or when the remaining battery capacity becomes low. Note: The battery protection system does not in any way damage the tool. The indicated capacity may be lower than the actual level during use or immediately after using the tool.
Page 11: Warranty
WARRANTY 30-DAY MONEY BACK GUARANTY 30 DAYS TO 90 DAYS (3 MONTHS) manufacturing fault. 90 DAYS TO 24 MONTHS WARNING！ The following actions will result in the warranty becoming void. alterations support@populotools.com www.populotools.com HANGZHOU AVANT GLOBE ECOMMERCE CO., LTD 3F, Bldg 9, Xixi Xintiandi Commercial Center, Wenyi West Road, Hangzhou, Zhejiang, P.
Page 12 POR LA GENTE PARA LA GENTE MANUAL DEL USUARIO KIT ATORNILLADOR DE IMPACTO IONES DE LITIO 20V MAX CIDL-2003 LO QUE HAY EN LA CAJA Paquete de Cargador de Clip para Puntas Bolsa de la " Batería Batería el Cinturón...
