Summary of Contents for Cklite LED PAR 64

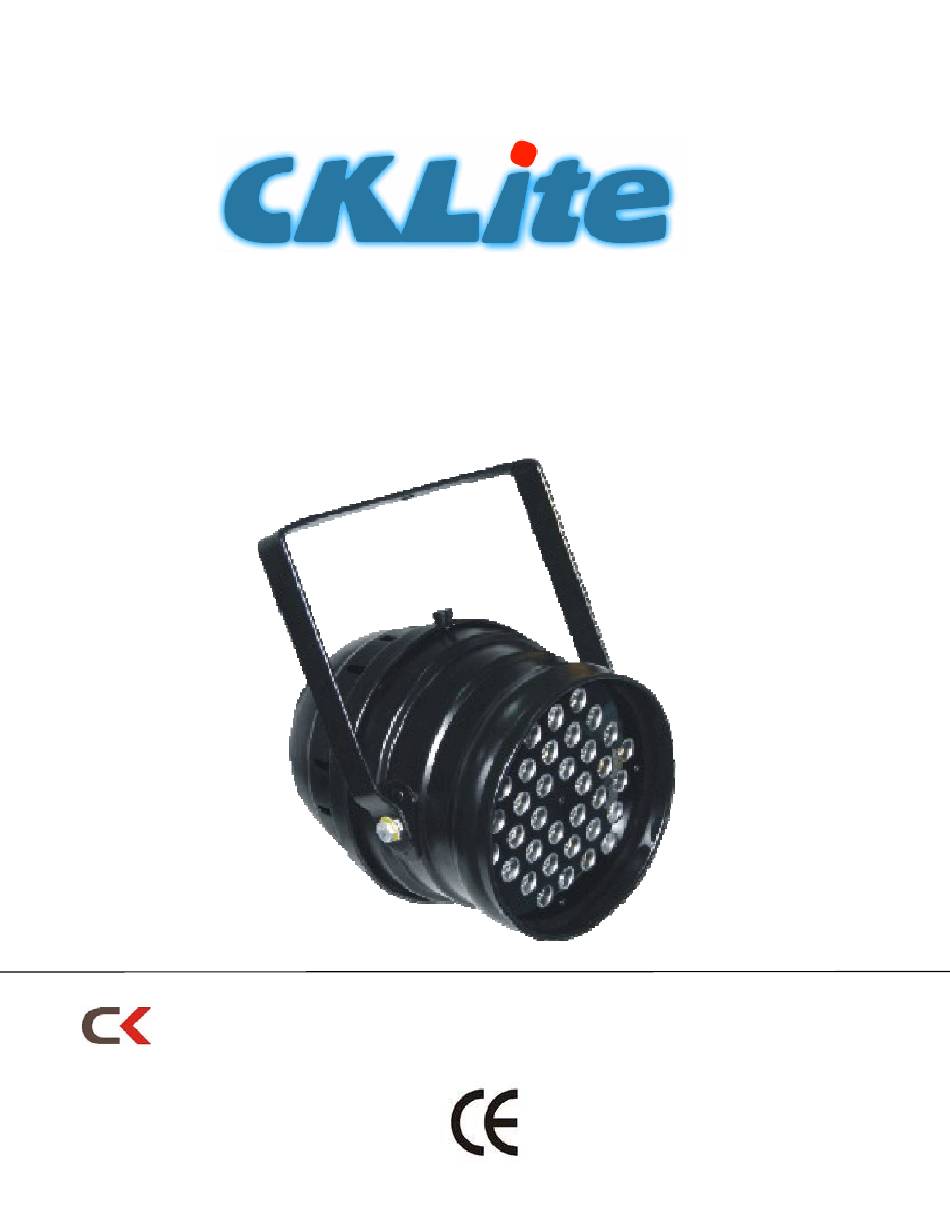

- Page 1 HIGH POWER LED PAR 64 Item No： CK-809 USER MANUAL www.cklight.com.cn ©Copyright...
- Page 2 CAUTION! Keep this device away from rain and moisture! Unplug the mains cable before opening the casing.! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! INSTRUCTIONS SAFETY Every person involved with the installation, operation and maintenance of this equipment must: be qualified follow the instructions of this manual...
- Page 3 This equipment falls under protection-class 1. The power plug must only be plugged into a protection class 1 outlet. The voltage and frequency must be exactly the same as stated on the equipment. Incorrect voltages or power outlets can lead serious damage and electrical shock. Always plug in the power plug last.
- Page 4 Introduction Features • 6-channel DMX-512 • Blackout/Dimmer/Strobe • Individual control of Red, Green and Blue leds • Digital Display • Ultra bright LED’s,low power consumption • RGB colour mixing • Built-in colour change programs • Up to 100,000-hour LED life span •...
- Page 5 Verify that the power requirement printed on your unit matches the line voltage applied. All fixtures must be connected to circuits with a suitable Earth Ground. FUNCTIONS: There are 2 options for using the LED Par 64: Stand-alone DMX Mode Stand-alone In Stand-alone mode, you can use the menu button on the back of the device to scroll through the options.
- Page 6 DMX Address choose Choose any DMX Address from The LED Par 64 will automatically detect the presence of a DMX signal.If a DMX signal is present, the DMX LED will blink. In order to receive a DMX signal, the controller must be attached to a DMX controller by a 3-pin DMX cable and the DMX controller must be turned on.
- Page 7 3. Mechanically moving parts like axles, eyes and others may not show any traces of wearing. 4. The electric power supply cables must not show any damages or material fatigue. The LED Par 64 requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced.
- Page 8 3. If all of the above appears to be O.K., plug the unit in again. 4. If you are unable to determine the cause of the problem, do not open the LED Par 64, as this may damage the unit and the warranty will become void.
