IQ DefinePro Manual page 2

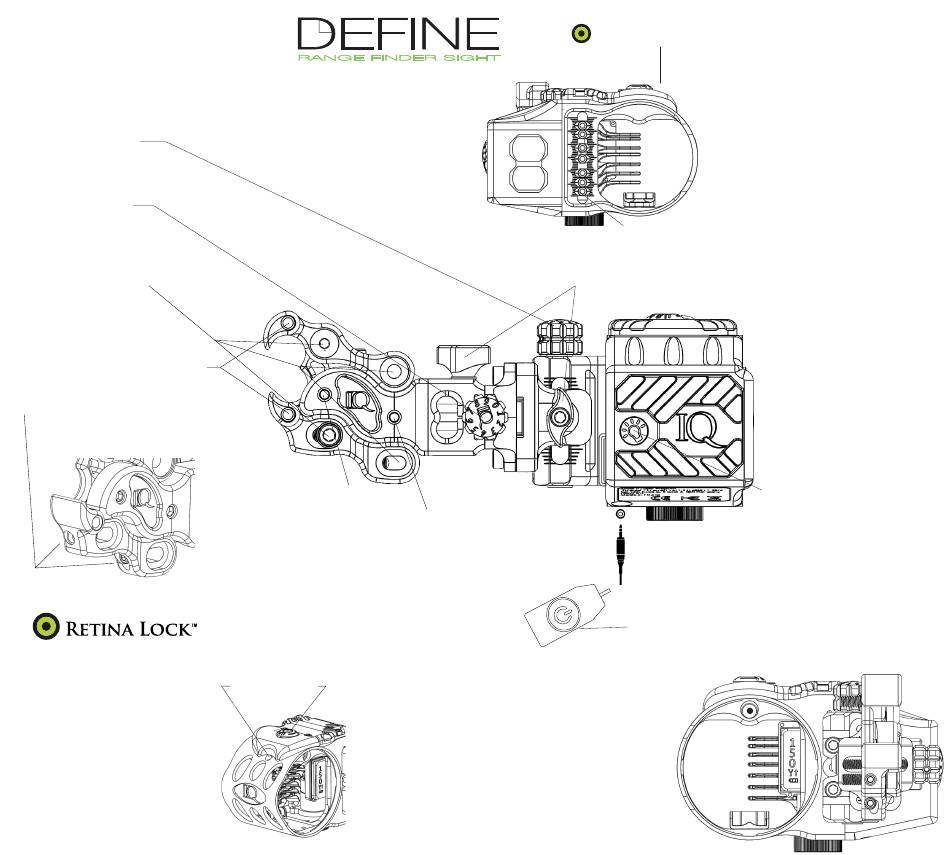

Micro adjust Windage and Elevation dials
The Micro Adjust Windage and Elevation Dials allow
the shooter to make small, consistent, and accurate
adjustments as needed. They are also useful tools for
precision sight in.
Elevation dial
The laser etched Elevation Dial
precisely adjusts the pins up and
down. (clockwise moves pins down,
counterclockwise moves pins up)
Windage dial
The laser etched Windage Dial
precisely adjusts the pins left and right.
(clockwise moves pins right,
counterclockwise moves pins left)
Mounting holes
Quiver mounting holes
Vertical adjust set screw
Used to align 20 yard pin to laser during mounting and set up.
- Adjust clockwise to move laser down.
- Adjust counterclockwise to move laser up.
Set Up
Once your top pin and range finder are
accurately calabrated, it's time to adjust
your Retina Lock™.
Draw your bow using the same
form/anchor point used to set your top pin
and look for the green Retina Lock™.
a) If you see the green Retina Lock™,
adjust the green Retina Lock™ until the
black dot is centered within the green
Retina Lock™ using the micro adjustments
located on the top and side of sight.
Remember you are adjusting the green
Retina Lock™ to fit your form/anchor point.
Repeat this step until the black dot is
centered in the green Retina Lock™ – at
your form/anchor point.
1
5
0
Left adjust
Right adjust
Used to align 20 yard pin to laser during mounting and set up
These are adjusted at the same time.
Adjust Left
rear set screw clockwise.
front set screw counterclockwise.
Adjust Right
rear set screw counterclockwise.
front set screw clockwise.
b) If you don't see the green Retina Lock™
at your form/anchor point you will need to
micro adjustments
move your anchor point up or down and
Left/Right Up/Down
possibly left or right until you find the
green Retina Lock™. Once you've
determined the direction of the green
Retina Lock™, use the micro adjustments
located on the top and side of sight to
adjust the green Retina Lock™ to fit your
form/anchor point. The micro adjustment
on the top of the sight is to move the green
Retina Lock™ up and down and the micro
adjustment on the side of sight is to
move the green Retina Lock™ left and
right – REMEMBER YOU ARE MOVING
THE GREEN Retina Lock™. Repeat this
step until the black dot is centered in the
green Retina Lock™ – at your form/
anchor point.
PRO
PRO
Fully captured .019" pins
*Pins can be removed if archer prefers more open optics
by completely removing the machine screw on the
preferred pin and gently removing the pin housing
from the bezel.
Tool-free locking knobs
Adjust Micro adjust Winadge and Elevation dials without tools.
Trigger plug in port
Trigger
Depress the trigger once to activate the range finder to standby mode
Depress the trigger a second time to put the range finder into scan mode.
Once your black dot is centered in
the green Retina Lock™
AT YOUR FORM/ANCHOR POINT you can
now sight your pin in at other distances
and make your distance marks.
Built in LED pin light
The built in pin light features
4 different intensities. Each
successive click brightens the
pins.
