Unpack the table
onto a soft level
surface and identify
the listed items.
Catalina Four Leg Extension Tables:
Tools required

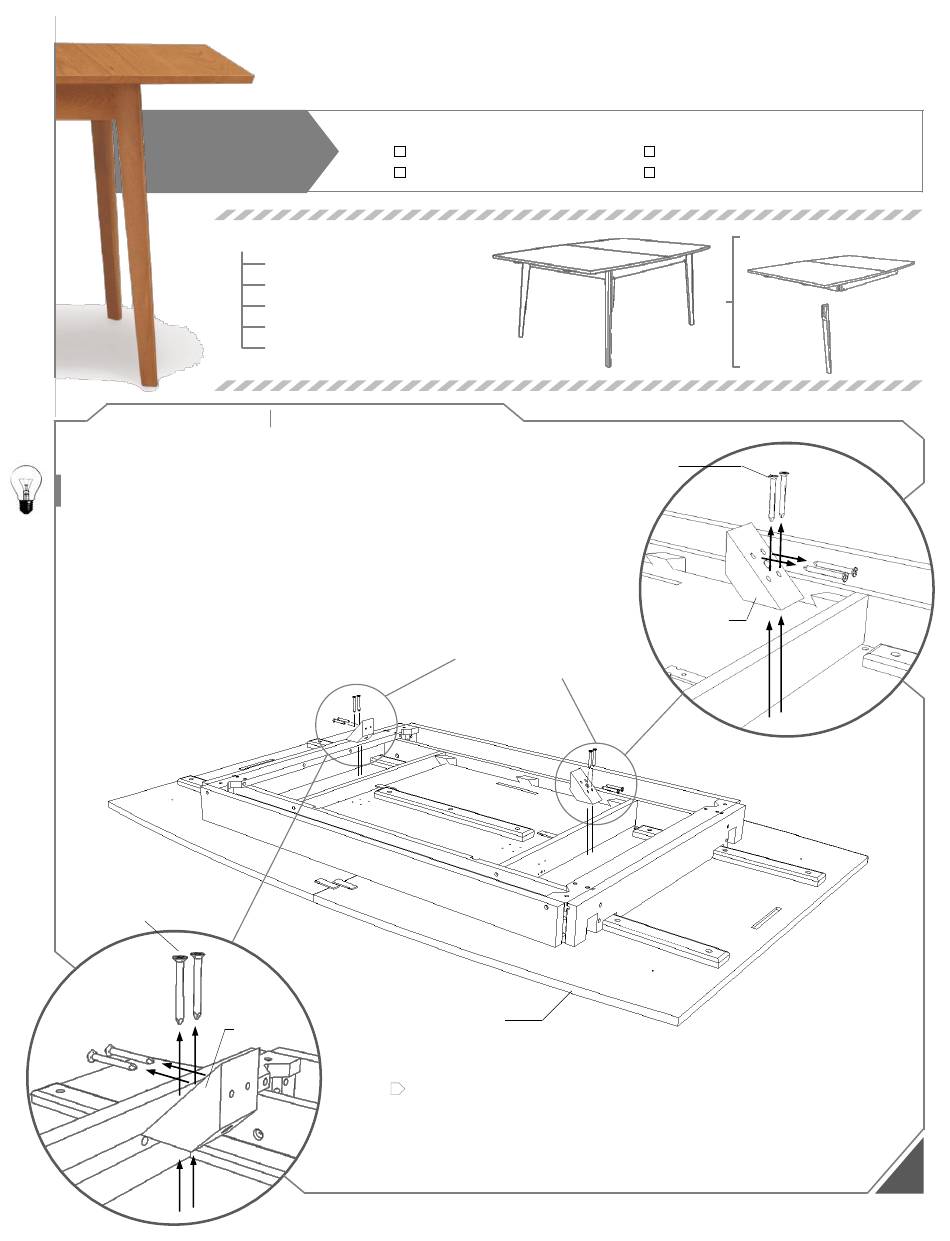

Step 1:
Remove the shipping blocks
Lay the table top sub-assembly face
down on a soft level surface. Use a
Philips head screw driver to remove
blocks under the table top assembly by
detaching all the flat head screws from
the shipping blocks (Figure 1).
Flat head screws
Shipping
block
Instructions for Catalina Four Leg
Extension Tables
Hardware included:
#20 x ¼" nuts (8)
Washers (8)
46" x 72" Extension Table
46" x 66" Extension Table
40" x 72" Extension Table
40" x 66" Extension Table
40" x 60" Extension Table
Philips head screw driver
shipping blocks
Table top
assembly
Figure 1.
Components included:
Flat head screws
Remove the
Remove the shipping blocks from
the table top sub-assembly
Table top assembly with leaf (1)
Legs (4)
Table top sub-assembly
Table leg
Shipping
block
1
Advertisement
Summary of Contents for STATED HOME Catalina Series
- Page 1 Instructions for Catalina Four Leg Extension Tables Unpack the table Hardware included: Components included: onto a soft level #20 x ¼” nuts (8) Table top assembly with leaf (1) surface and identify Washers (8) Legs (4) the listed items. Catalina Four Leg Extension Tables: Table top sub-assembly 46”...
- Page 2 7/16” wrench Tools required Wrench Leg bolt Step 2: Install the table leg Table leg Washer Slide a washer and a nut over each leg bolt and hand tighten. Then use the 7/16” wrench to tighten the nuts securely. Repeat this to attach the other legs (Figure 2).
- Page 3 How to open and close table top in use Scan to watch Open Close the table top the table top operation video Unlock the table (if locked). Unlock the table (if locked). Pull out the table top from either end. Pull out the table top from either end.
- Page 4 How to Operate Extension Table Lock Mechanism Tools required None Locking locations One leaf extension tables usually have two locking locations (Figure 1). The inner position is for locking the table when the leaf is unfolded (Figure 1-2). The outer position is for locking the table when the leaf is folded (Figure 1-1).
