Summary of Contents for DMC SCU80P

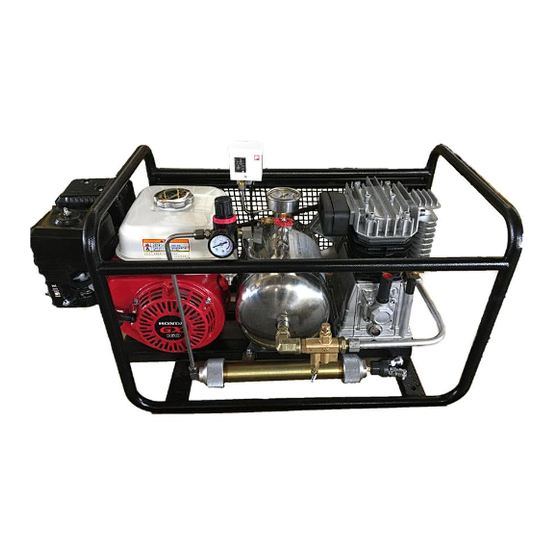

- Page 1 Operation Manual Air Compressor for Diving Gas Engine Driven Series SCU80P...
- Page 2 INDEX 1. GENERAL 2. TECHNICAL DATA 3. STRUCTURAL PRINCIPLE 3.1 COMPONENTS 3.2 COMPRESS PROCESS 3.3 PUMP UNIT 3.4 GAUGE, SAFETY VALVE 3.5 PRESSURE SWITCH 3.6 ELECTRIC STARTER 3.7 DRAIN VALVE 4． OPERATE 4.1 INSTALLATION 4.2 BEFORE OPERATION 4.3 RUNNING 5. MAINTAINENCE 5.1 LUBRICATE 5.2 AIR FILTER 5.3 PURIFY FILTER...
-
Page 3: Safety Cautions
SAFETY CAUTIONS Please read this operation manual carefully before installation and operation This series are high pressure air compressor. It compresses atmosphere air go to pressure 0.3/0.8Mpa, 45/110psi, after be purified and separated by the filter and separator. It discharge clean air accords to GB18435-2001 breathing air standard. It is widely be used for breathing of diving and fire fighting;... - Page 4 ￭ Check the electric voltage in nameplate is same as your local electric supply ￭ Check the lubricate oil has been put in before running ￭ Increase rated pressure setting is forbidden ￭ There is potential danger of pipe burst or connect fitting blow off under high pressure, please avoid body too near compressor when it running ￭...
-
Page 5: Technical Data
TECHNICAL DATA SCU80P / Gasoline Engine Driven Diving air compressor Charging Rate: 250L/min; 8cfm Suction pressure: atmosphere Working pressure: 0.8MPa， 8bar, 110psi Media: air No.of stage and cylinder: 1 Engine power: 5HP / HONDA Cooling: air Driven: belt driven Shout down：Automatic stop by pressure switch Pressure indicate：Gauge... - Page 6 STRUCTURE 3.1 Main Components 3.2 Working process Atmosphere air is sucked into cylinder of the compressor, and compressed to reach 0.3Mpa/0.8MPa 40/110 psi pressure, through regulator with water separator , then purified by filter. Discharge clean air for diving breathing. 3.3 Pump unit The pump block unit is composed of crankcase, crankshaft, cylinder, piston, intake and discharge valves, connect rod , bearing etc.
- Page 7 3.4 Gauge & safety valve The pressure gauge is installed in final stage of the compressor to display discharge pressure. The safety valve is installed at the place of discharge to take the overpressure protection. If the discharge pressure is higher than preset value, the safety valve will open and release pressure.
-
Page 8: Install And Operation
INSTALL AND OPERATION 4.1 Installation The compressor must be mounted on a firm, level base Where is with well-ventilated and rain-proof , non-hazardous locations The environment temperature is required to be lower than 40 degree C. 4.2 Check before running Oil level check Check the oil level which must be keep between max. -
Page 9: Maintenance
Oil level must be checked every 25 hours; oil must be replaced after 100 working hours or annually, and 50 working hours to change oil for the first time. DMC SYNTHETIC oil, MOBIL SPECIAL 20W50, MOBIL RARUS 827-829, ANDEROL 755 SYNTHETIC are recommended. - Page 10 6×400 6×600 Note: Filter elements must be replaced at once if people feel particular smell. Replacement: open the filter cover; replace the active carbon in bottle...
-
Page 11: Troubleshooting
TROUBLESHOOTING Fault Reason Over Over Over Over low P high P noise heat start leak Pressure switch damage √ √ Motor capacitor damage √ safety valve damage √ √ √ drain valve damage √ √ Discharge valve damage √ √ √... -
Page 12: Circuit Diagram
CIRCUIT DIAGRAM...
