Summary of Contents for Sercel GRC SPS-1500P

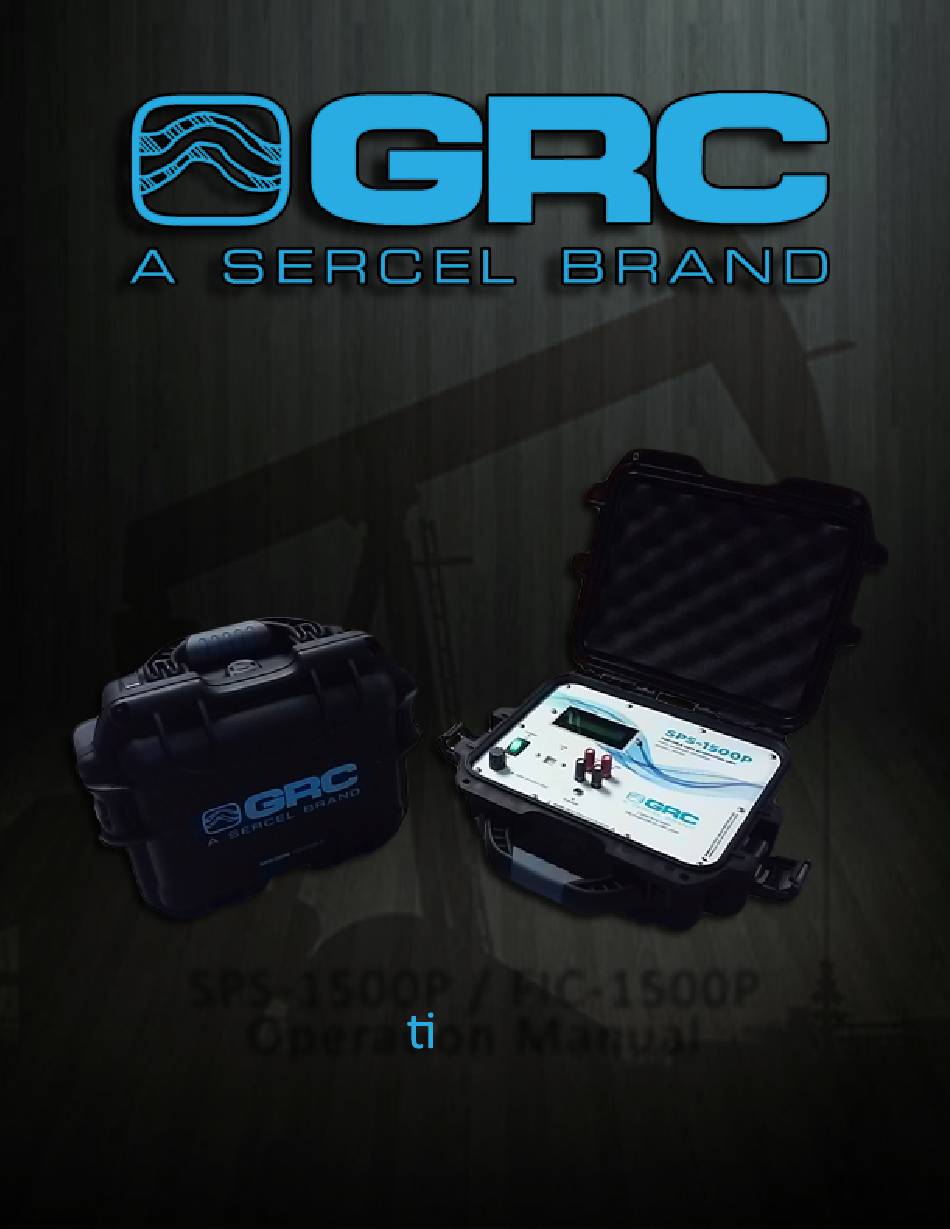

  • Page 1 S P S - 1 5 0 0 P / F I C - 1 5 0 0 P O p e r a o n Ma n u a l...
  • Page 2 Portable Data Acquisition Test Equipment OPERATION MANUAL Sercel-GRC Corp. 6540 East Apache Street, Tulsa, Oklahoma 74115-3616 USA P.O. Box 581570 Tulsa, Oklahoma 74158-1570 USA E-Mail: sales@Sercel-GRC.com or support@Sercel-GRC.com Telephone: (1) 918-834-9600 / Fax: (1) 918-838-8846 Visit our web page at www.Sercel-GRC.com...
  • Page 3 Sercel-GRC Corp, and with the further understanding that this manual is for informational purposes only and that suggestions and recommendations contained herein shall not be understood or construed as a guarantee or warranty of any method, product or device.
  • Page 4: Table Of Contents

    Table of Contents Overview ....................... 5 Accessories ......................5 Interface Panel ...................... 6 Module Display ....................7 Power Switch ....................7 USB Port ......................7 Gauge Output ....................7 RS 485 ......................7 Charge Port ...................... 7 Fuse Holder ...................... 7 Connections ......................
  • Page 5: Overview

    Overview The SPS1500P and FIC1500P are the latest edition to the GRC portable surface equipment family. These portables provide reliable and easily serviceable operation. The products are designed to be a robust addition to any tech service. The compact design and SLA battery allow the portable to be taken anywhere.
  • Page 6: Interface Panel

    Interface Panel The SPS1500P and FIC1500P Interface Panel. Interfaces are: 1. Module Display 2. Power Switch 3. USB Port 4. Gauge Output 5. RS 485 6. Charger Port 7. Fuse Holder Figure 2 SPS1500P / FIC1500P DOC: 10040534 Rev AA Operation Manual Page 6 of 13...
  • Page 7: Module Display

    3.1 Module Display The module display is the internal SPS1500 or FIC1500 gauge connection display. This display provides visual indication regarding the connection and well parameters. 3.2 Power Switch The power switch is the main power to the SPS1500P or FIC1500P. The power switch allows the user to power the unit on when connecting to gauge, and off to conserve battery.
  • Page 8: Connections

    Connections 4.1 Gauge Connection Connect the red and black wire to gauge device to be tested. The red wire “Signal” will connect to the gauge or module signal input, and the Black wire “Ground” should connect to the gauge housing or ground pin. When connecting to surface choke equipment the red “Signal”...
  • Page 9: Charging

    4.2 Charging The charger port is a 5.5mm x 2.1mm barrel connection. The charger allows the SLA smart battery charger to be connected at any time. The SLA smart charger provides the user with a red/green indicator led for the indication of charge completion. LED Indications: ...
  • Page 10: Sps1500 And Fic1500 Module

    All enabled parameters on the tool will be displayed. The FIC1500P surface controller is designed to read all Sercel GRC FSK gauges including theQTIEG-4000 and the C4000/4500/5000/5500 line of gauges. The FIC1500P can read up to six channels at the same time using FSK technology.
  • Page 11: Specifications

    Specifications Certifications: CE Compliance Tested Approved for transport by air. DOT, IATA, FAA, and CAB certified Display: 16x2 Backlit LCD Polling Interface: RS-485/RS422 Isolated Modbus PC Interface: Isolated USB COM Port for Modbus/Firmware Update Supported Baud Rates: 1200, 2400, 4800, 9600 (default), and 19200 bps Modbus ID 1 (default) Internal Gauge Module Fuse: 100mA, GRC P/N 043-0047-00 7.0AH Valve regulated, spill proof Absorbent Glass Mat(AGM) technology...
  • Page 12: Troubleshooting

    Troubleshooting The SPS1500P or FIC1500P may experience communication problems due to noisy environments, grounding problems, or installation issues. The LCD on the SPS1500P or FIC1500P will display error codes depending on the failure it is detecting. Below is a list of common error codes and possible solutions to assist with troubleshooting the SPS1500P or FIC1500P.
  • Page 13 Low Amps Possible Reason(s)  Cannot get voltage signal to tool  Disconnected from tool  Blown Signal fuse  Low amp setting set to high Indicators  Continuous Low amp error  SyncPhs keeps restarting Correction  Check Downhole readings (P-P & P-Gnd (Reverse Polarity Megger)) ...
  • Page 14 Analyzing Possible Reason(s)  Cannot get voltage signal to tool  Disconnected from tool  Blown Signal fuse Indicators  Continuous Analyzing / SyncPhs Correction  Check Downhole readings (Phase to Phase & Phase-Ground (Reverse Polarity Megger)  Check all connection(s) ...
  • Page 15 A n y w h e r e . A n y me . E v e r y me . S e r c e l - G R C C o r p . i s a w o r l d w i d e l e a d e r i n d o w n h o l e d a t a a c q u i s i o n a n d t h e l e a d e r i n p r o p r i e t a r y t e c h n o l o g y f o r me a s u r i n g , r e c o r d i n g a n d d e l i v e r i n g r e l i a b l e a n d a c c u r a t e w e l l d a t a w i t h e x t r e me l y h i g h r e s o l u o n s .
