SmartPay Till2Go Connecting Manual

With a printer (and cash draw)

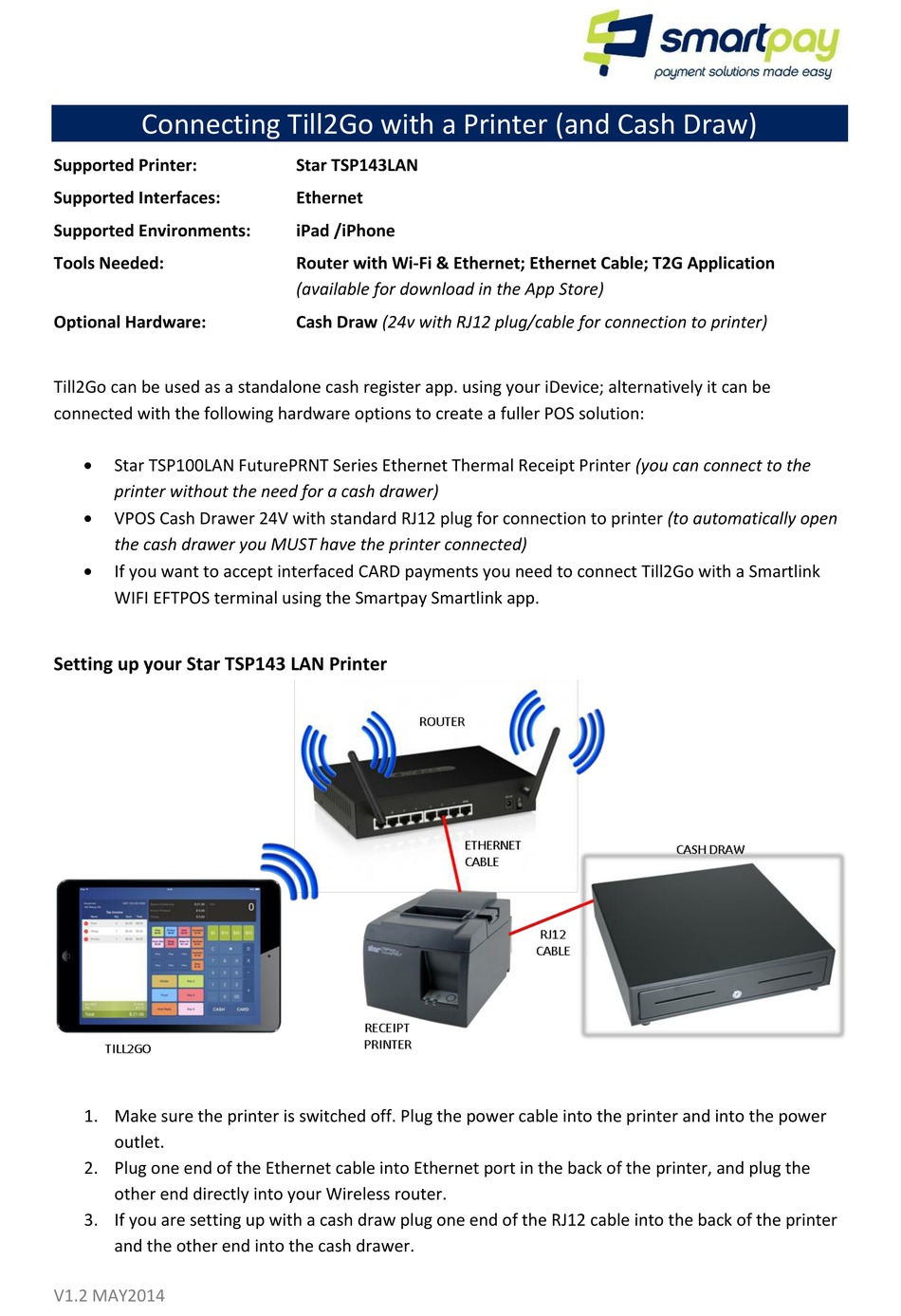

Connecting Till2Go with a Printer (and Cash Draw)

Supported Printer:

Supported Interfaces:

Supported Environments:

Tools Needed:

Optional Hardware:

Till2Go can be used as a standalone cash register app. using your iDevice; alternatively it can be

connected with the following hardware options to create a fuller POS solution:



Star TSP100LAN FuturePRNT Series Ethernet Thermal Receipt Printer (you can connect to the

printer without the need for a cash drawer)



VPOS Cash Drawer 24V with standard RJ12 plug for connection to printer (to automatically open

the cash drawer you MUST have the printer connected)



If you want to accept interfaced CARD payments you need to connect Till2Go with a Smartlink

WIFI EFTPOS terminal using the Smartpay Smartlink app.

1. Make sure the printer is switched off. Plug the power cable into the printer and into the power

outlet.

2. Plug one end of the Ethernet cable into Ethernet port in the back of the printer, and plug the

other end directly into your Wireless router.

3. If you are setting up with a cash draw plug one end of the RJ12 cable into the back of the printer

and the other end into the cash drawer.

V1.2 MAY2014

Star TSP143LAN

Ethernet

iPad /iPhone

Router with Wi-Fi & Ethernet; Ethernet Cable; T2G Application

(available for download in the App Store)

Cash Draw (24v with RJ12 plug/cable for connection to printer)
