Automatic Technology Smart Phone Control Kit Installation Instructions

Smart Phone Control Kit
Garage Door Openers
NETWORK SMART HUB KIT - ORDER NO. 14880
ITEM DESCRIPTION

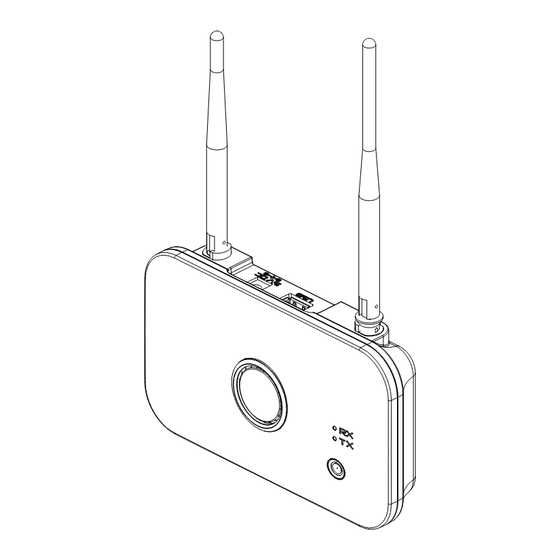

1 WIRELESS HUB100 WT B&D
2 POWER SUPPLY AU 240V
3 WALL BRACKET HUB100
4 PLASTIC WALL PLUG 6.9 X 25
5 SELF TAPPING SCREW 6 X 25
This device must be connected to power at all
times. DO NOT disconnect power after setup.
This device allows for operation of the door/gate when not in line-of-sight of the door/
gate and opener.
The door/gate may operate unexpectedly, therefore do not allow anything to stay in or near the path
of the door/gate. When the door/gate is not operating automatically, watch the door/gate when it is
moving and keep people away until the door/gate is completely opened or closed. Contact with the
moving door/gate can cause serious personal injury or damage to property.
It is our strong recommendation that your opener be fitted with SAFETY BEAMS. Safety
Beams detect any obstructions in the door/gate's path and override automatic operation if one
presents. These must be installed as in accordance with AS/NZS 60335-2-95:2012.
This is in addition to regular professional servicing, and monthly obstruction tests as detailed in your
opener's Home Owners Manual.
Important Safety Instructions
WARNING!
ELECTROCUTION!
CAUTION:
Fall from ladder
Burns
Doc # 160069_02
Part # 13449
Released 14/12/17
Smart Hub Installation Instructions
QTY
1
1
1
2
2
• DO NOT attempt to disassemble, repair or modify the product. This will invalidate
the warranty.
• DO NOT install product on openers that control J-Type or Single Piece Doors.
• Do not allow children to play with the Smart Hub or your smart phone if the B&D
phone app has been installed.
• Keep the device away from water and other liquids. In the event that water or
other liquids enter the device, power off he product immediately and clean the
device.
• To reduce the risk of fire or electric shock, do not expose this device to rain or
moisture. The device should not be exposed to dripping or splashing.
• DO NOT remove the cover as there are no user-serviceable parts inside.
• Ensure ladder is the correct type for job.
• Ensure ladder is on flat ground.
• Ensure user has 3 points of contact while on ladder.
• DO NOT handle damaged or leaking batteries
• The battery backup kit contains sealed lead-acid batteries that must be disposed
of properly at the end of their useful life.
TRANSCEIVER KIT NTR-1V1 - ORDER NO. 14818
ITEM DESCRIPTION
6 NETWORK TRANSCEIVER NTR-1V1 AY
7 TIMING HARNESS 400MM VR12 AY
8 TAPTITE SCREW "P" M4 X 12
9 VELCRO 20 X 50
Installation Video
To view step by step installation guide
video, download a QR Code Reader App
from your App Store and scan this code.
QTY
1
1
2
1
