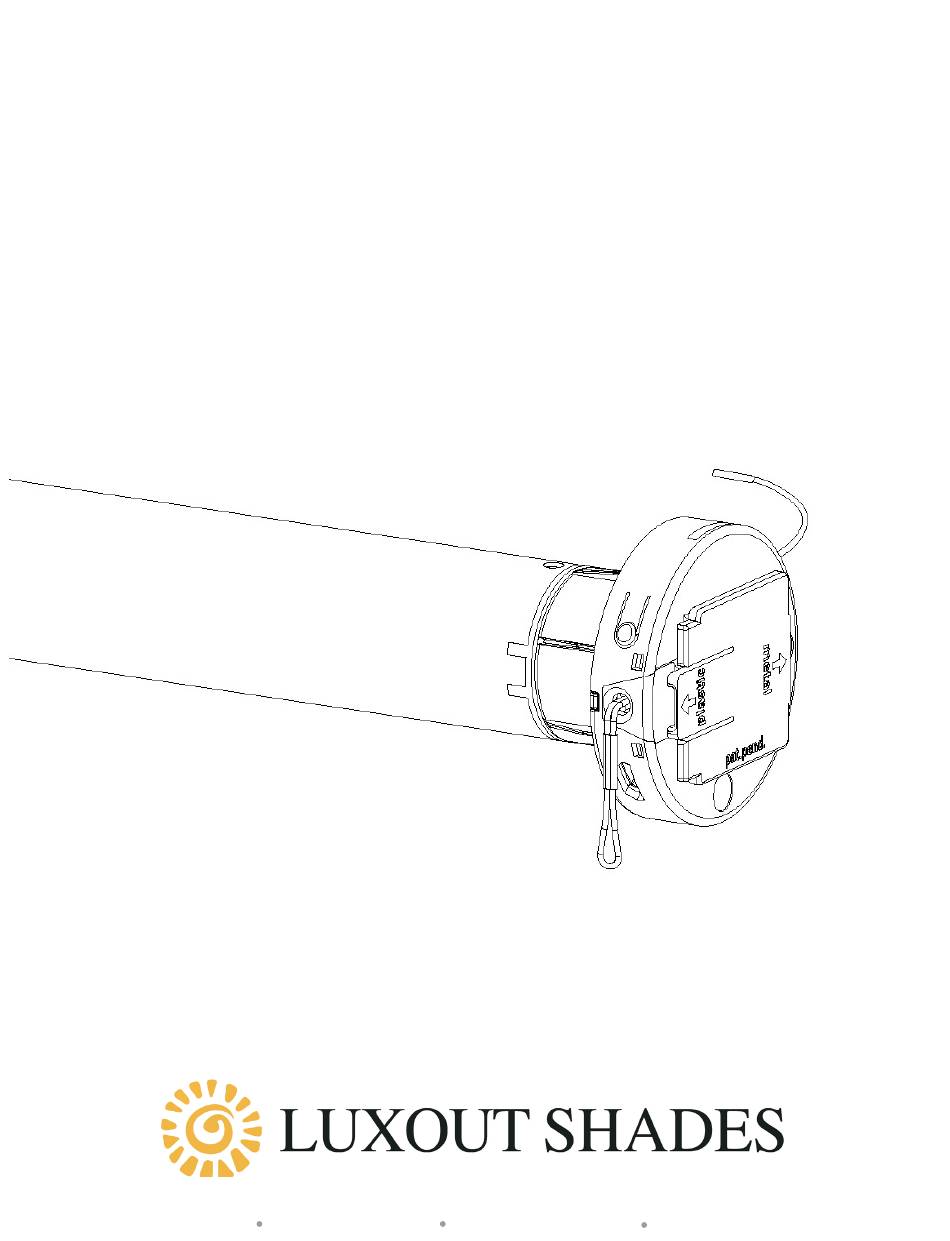

- Page 3 MOTION MOTORIZATION M OTIO N C M- 03 / 0 5 L I- IO N TUB ULA R MO TO R M O TI O N CM - 0 3 / 0 5 LI - I O N TU B U L A R M O T O R...
- Page 4 MOTION MOTORIZATION 800.817.1204 1221 Admiral Street Richmond, VA 23220 LuXoutShades.com...
- Page 5 MOTION MOTORIZATION M O T I O N C M - 0 3 /0 5 L I- I ON T U B U L A R M OT O R MO T I O N C M -0 3/0 5 L I- I ON T U B U LA R MO TO R...
- Page 6 MOTION MOTORIZATION 1 CHANNEL WALL CONTROLLER 1 CHANNEL PULL CONTROLLER MOTION BRIDGE Center (Stop/Favorite) Left Right Down Pair Button SEE MANUAL Pair Button 800.817.1204 1221 Admiral Street Richmond, VA 23220 LuXoutShades.com...
- Page 7 MOTION MOTORIZATION Install the shade brackets Bracket Covers Wall Mount Ceiling Mount Jamb Mount Install the idle end and idle end bracket cover Install the shade idle end first Install the operator end to bracket and bracket cover Activate the motor Activate the motor by charging it with a micro USB cable.
- Page 8 MOTION MOTORIZATION Pair a controller Pair a controller control that is able to program shades. See pages 4 and 5 for controller control details. In this manual, 5 Channel Controller is displayed. Shortly press the program button on the motor. The shade will start stepping,...
- Page 9 MOTION MOTORIZATION Set or adjust bottom limit position. If adjusting limits only, press the programming button on the motor. Motor will start stepping and is now in limit adjusting mode. Press and hold the down button until the shade reaches the desired bottom position.
- Page 10 MOTION MOTORIZATION Set top position Press and hold the up button until the shade 10.1 reaches the desired top position. WARNING: risk of damage. Slowly approach the top position. Simultaneously hold the center and the down 11.1 button until the shade stops stepping and starts stepping again.
- Page 11 MOTION MOTORIZATION Set favorite position (optional) Center 12.1 Move the shade to a desired favorite position. Hold the center button to save this Favorite 12.2 position. The shade shortly stops stepping indicating the favorite position has been saved. Deactivate program mode 13.1...
-
Page 12: Operate The Shade
MOTION MOTORIZATION Operate the shade Pull control: pull once to move the shade to the end positions. Pull again to stop the shade. Controller operation: Choose the channel Center with which the shade has been paired using the channel button. Press the up or down button to operate the shade. - Page 13 MOTION MOTORIZATION Reset favorite position 16.1 Move the shade to a desired favorite position. Press the program button on the motor to activate 16.2 Center program mode. The shade starts stepping. Hold the center button to save this favorite position.
-
Page 14: Recharge The Battery
MOTION MOTORIZATION Reset the shade It is possible to only delete end limits or to do a factory reset. Factory reset will delete the end limits and remove the connection to any paired controller. 18.1 Press the program button on the motor to activate program mode. -
Page 15: Advanced Options
MOTION MOTORIZATION Advanced Options Manual control In case there is no controller or pull control, the shade can be operated with the program button on the motor. 20.1 Hold the program button to manually operate the shade. The shade will move as long as the button is being pressed. - Page 16 MOTION MOTORIZATION Single Select (15 Channel Controller) Single select makes it possible to activate program mode on a single shade through a controller, without having to physically press the program button on the shade. 22.1 22.2 To activate Single select,...
- Page 17 MOTION MOTORIZATION Channel Select (5 Channel Controller) Channel select makes it possible to copy shades in between channels/controllers without having to physically press the program button on the motors. 23.1 23.2 Select the channel To activate channel from which the shades select, simultaneously must be copied.
-
Page 18: Frequently Asked Questions
MOTION MOTORIZATION Activate/Deactivate the motor To prevent the shade from getting damaged, the motor has a transport mode that makes sure the shade will not be activated before installation. Hold the program button and pull twice to activate or deactivate the motor. The motor can also be 25.1...
