Summary of Contents for Zoom Single

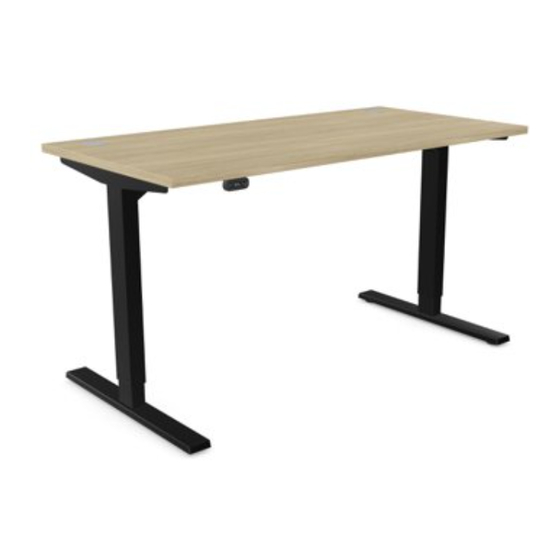

- Page 1 ZOOM ZOOM Single Desk Assembly & User Instructions...
- Page 2 Standing just 15 min per hour provides great health benefits...
- Page 3 Contents ZOOM Single Use/Liability Parts List/Tools Assembly Trouble Shooting Specifications...
- Page 4 Assembly Make sure no obstacles are in the desk’s path. WARNING Make sure the desktop is not touching any walls. Pinch Point Make sure all cords are appropriate length to Keep hands and fingers clear. accommodate the change in height. Keep children away from electric height-adjustable desks, control units and handsets.
- Page 5 Parts List Tools Phillips Head Screwdriver Tape Measure 4mm Allen Wrench (included) and/or Power Drill Parts List Part Part Part Side Bracket M6x14 Machine Screw Foot Control Box M6x10 Machine Screw Frame End-CB Handset M5x20 Wood Screw Frame End Power Cord M5x16 Wood Screw Centre Rail Cable...
- Page 6 Assembly Lay out all components and hardware to ensure that you have all items listed on the parts page. Slide the Control Box (part 7) off the Frame End-CB (part 3) and set aside. Fully separate Frame End (part 4) from Frame End-CB (part 3). You will find the Centre Rail (part 5) inside.
- Page 7 Assembly Slide the two (2) Centre Rails (part 5) into the two Frame Ends (parts 3 & 4) ensuring: a} the slots in the Centre Rail (part 5) face inward b} the slots in the Centre Rail (part 5) are closer to the top edge when the assembly is upside down (see inset).
- Page 8 Assembly Double check that the wood screws are not too long for your desktop and won’t puncture the surface when screwed all the way in. We recommend that you pre-drill any holes needed for fasteners. Never use countersunk screws. Double check that the desk base is properly positioned on the underside of the desktop.
- Page 9 Assembly Turn the assembled desk right-side up. With at least two people, grab the DESK BASE (not the desktop) and turn the desk right-side up. Adjust the pre-installed glides on the Feet (part 2) as needed. Plug the Power Cord (part 9) into a 230v outlet. RESET PROCEDURE Press and hold the DOWN button on the Handset (part 8) until the desk reaches its lowest height.
- Page 10 Specifications Trouble Shooting Height Range 685 - 1185 mm (without desktop) Base Width 1200 - 1800 mm Travel Speed 40 mm per second (no load) Distributed Load 125Kg Duty Cycle After 2 min. continuous use rest for 18 min to prevent overheating Soft start/stop Adjustable leveling studs...
- Page 11 Increase productivity Prolong life expectancy Improve circulation Burn fat Standing just 15 min per hour provides great health benefits.
- Page 12 ZOOM...
