Summary of Contents for AgriEid Smart Stick

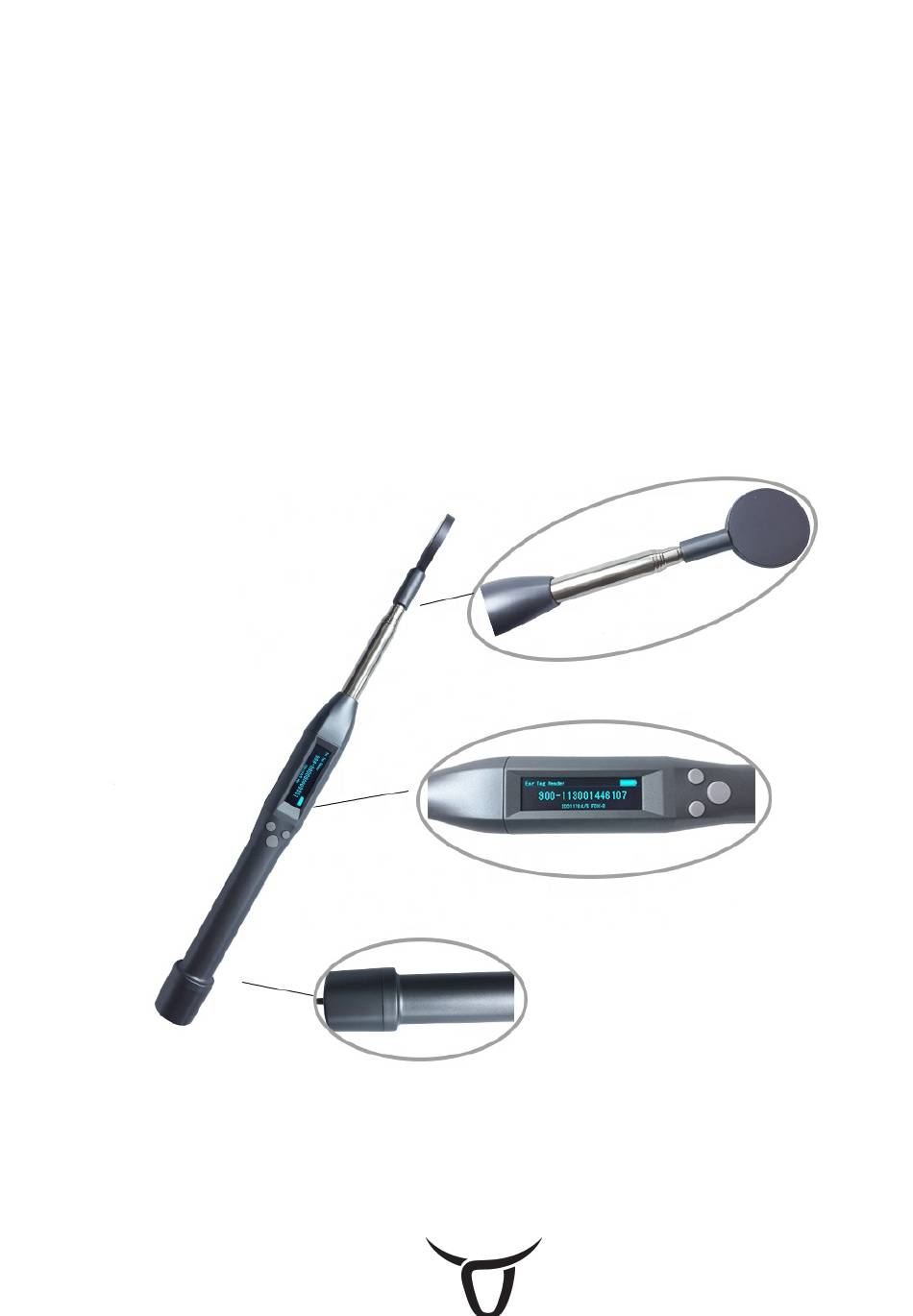

- Page 1 AgriEid Smart Stick Reader Operation Manual...
-
Page 2: Table Of Contents
Introduction ..................2 Features ..................3 2.1. Intended Use ............. 3 2.2. Physical characteristics ..........3 2.3. Environmental ............3 2.4. Electronic ..............4 Getting Started ..................4 3.1. Unpacking ..............4 3.2. Key Board Functions ..........5 3.3. Bluetooth connection ..........7 Scanning .................. -
Page 3: Features
Including Apple, iOS, Windows and Android operating systems. This manual is intended to provide a complete overview of the AgriEid Smart Stick Reader and should be carefully read before operating the device. 2. Features 2.1. Intended Use RFID Animal Identification and Tracking Management (NLIS) 2.2. -
Page 4: Electronic
FOR YOUR PROTECTION, please read these safety instructions completely before applying power to, or operating the system. 3.1. Unpacking The following table lists the items which should be received : ITEMS INCLUDED AgriEid Smart Stick Reader √ USB Cable for Charging √ AgriEid Smart Stick Reader √... -
Page 5: Key Board Functions
Each item should be examined for any noticeable defects or damage that may have occurred during shipment although it is packed carefully. If any defect or damage exists, please contact AgriEid. 3.2. Key Board Functions The handheld keyboard is multifunctional. In different modes, it has different functions. - Page 6 You can scan by pressing the ‘Power/Scan’ button and quit the scanning operation by pressing the ‘Enter’ button. The device will shut down automatically after 15 minutes, when not in use. 3.2.2. General Settings Press the ‘Set’ button to enter the menu setting interface, there are 4 options you can choose (see Table 1 below).
-
Page 7: Bluetooth Connection
Android Smartphone and Tablets etc. Open the Bluetooth function of the mobile device, and then connect the AgriEid device called ‘Ear Tag Reader’. Open the notes app on an iPad (for example), then create a new or open an existing note, the blinking cursor confirms the scanner is ready for... -
Page 8: Scanning
Scanning 1) Press the ‘Power/Scan’ button to detect (see figure4-1). Figure 4-1 scanning 2) If there is no tag detected in 20 seconds, the information ‘NO Tag’ and ’ press the Power/Scan button to scan’ will be shown on the screen(see figure 4-2). You can press the ‘Power/Scan’ button to detect again. - Page 9 4) If the Bluetooth connection is secure, the tag number will transmit to the mobile device automatically (see figure 4-4) 999-000000000069 Figure 4-4 data transmission in ‘notes’ mobile app...
-
Page 10: Maintenance
5. Maintance 5.1. Charging When battery goes down, it is necessary to recharge the reader. Unscrew the back cover, and then connect the USB Charger and USB Cable with the reader to charge the reader as shown in figure 5-1. When in charging, the battery indicator light will be green. -
Page 11: Cleaning
When not in use the device should be protected from dust, water and temperature extremes. 5.4. Maintenance 1) The AgriEid Smart Stick Reader needs to be taken good care of during and after use. 2) Do NOT drop it from high level.
