Summary of Contents for Zoox Altima Series

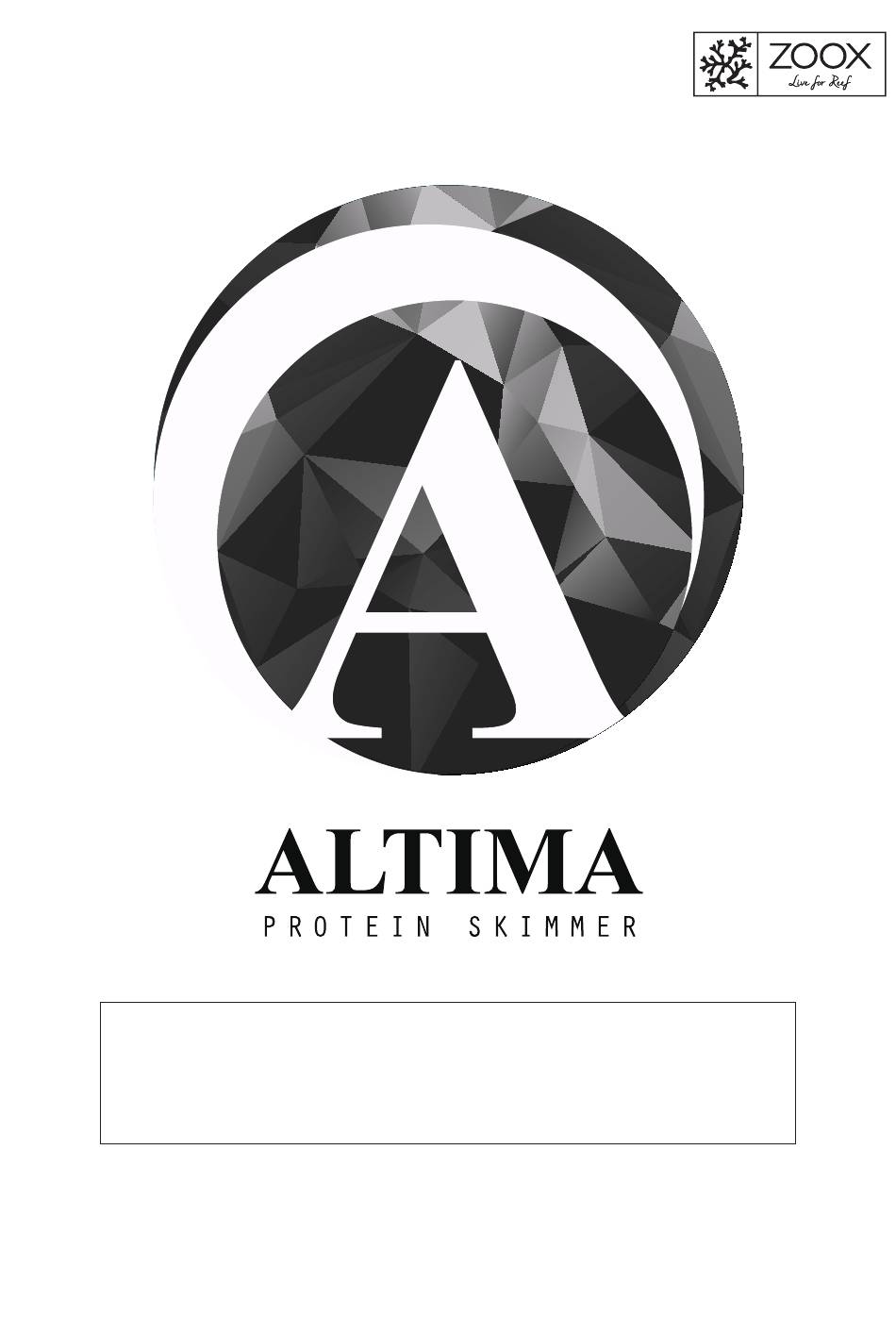

- Page 1 3 0 0 S , 5 0 0S, 800S 1 2 0 0 P , 2 500 P ,3500P User Manual...
- Page 2 Thank you for purchasing the ZOOX Altima DC Protein Skimmer. This manual supports Altima DC Protein Skimmer 300S, 500S, 800S, 1200P, 2500P, 3500P. Please read this instruction manual carefully and understand the usage and structure before use. After reading, keep it in a place where you can read it again at any time.
-
Page 3: Safety Guide
SAFETY GUIDE HANDLING OF POWER PLUG, POWER CORD & SOCKET WARNING Unplug the power adapter when putting When pulling out the power adapter your hands in the aquarium or from the outlet, hold the power performing maintenance adapter first, then pull it out. It may cause electic shock. - Page 4 ●Before use ･This product is an internal protein skimmer. ・We do not compensate for living bodies by stopping the pump or some other reasons,please be carefully. Attention Please read it carefully and use the pump according to the following precautions. ・Be careful not to let the pump run idle due to a drop in water level.
- Page 5 ●Specification ※ Model Power Consumption Air intake(L / h) Flow rate (L / h) Dimension (cm) Aquarium capacity Ideal for SPS dominated 300L 1200P 15W(±5％） 300L 100-400 200-600 W21×D16×H45.5 2500P 25W(±5％） 500L 500L 100-600 200-1000 W24×D19×H47.5 500L W24×D19×H47.5 3500P 25W(±5％） 500L 100-600 200-1000...
- Page 6 ●Filtration Tank The sump in which the protein skimmer is installed should have a structure that allows the breeding water to pass through a physical filter (such as a wool mat),please make sure it can pass through the inside of the protein skimmer without any trash.
- Page 7 Remove the screw at the center of the bubble plate and divide it into four parts (A, B, C, D). Screw Part A Part B Part C Part D Place the parts D on top of the pump, and fix it with the fixing screw. After that, stack parts C, B and A and fix them with screws.
- Page 8 Attach the silencer to the body by using screws. Attach the air tube below the silencer. Pass the tube through the hole Attach with screws Air Tube The side with screw holes is below Attach the pump suction port part to the pump suction port, and attach the air tube.
- Page 9 ●Controller Connection Please connect the joint part of the pump and the controller with the following connection method. Tighten the connection cover Align the protrusions then insert Check that the main unit is under the water, so that the inside of the main unit is filled with water before connecting the plug to the outlet.
- Page 10 ② Flow Control Controller for 300S,500S,800S,2500P,3500P The flow rate of the pump can be adjusted from 1 to 9 using the controller. Power Button Turn the power ON / OFF. －Button Reduce pump power and reduce flow rate. DC24V PUMP ＋Button Increase pump power and increase flow rate.
- Page 11 Note that if the water level at the installation site drops due to evaporation or some other reasons, not only will the skimmer's Attention capacity be reduced, but also the pump will draw in air and cause damage. It is recommended to use the pump at an output of 60 to 70% with good pump operation efficiency.
- Page 12 Guide for maintenance the pump of 1200P ,2500,3500P Guide for maintenance venturi intake for all model. Always to maintenance the air intake parts are not clogged by dusts , salt crystal , lime , snails ..etc. It will affect the balance between flow and air intake and caused performance down.
- Page 13 ●In case of trouble If you have any troubles or problems, please contact us from our homepage, fill in your name and problems and your E-mail, or contact the shop where you purchased. Contact US E-mail：info@zooxaquarium.com ZOOX AQUARIUM LTD http://www.zooxaquarium.com...
- Page 14 ZOOX AQUARIUM LTD Web Site: http://www.zooxaquarium.com Email : info@zooxaquairum.com Facebook : http://www.facebook.com/zooxjp Instagram : http://www.instagram.com/zoox_aquarium 181116...
