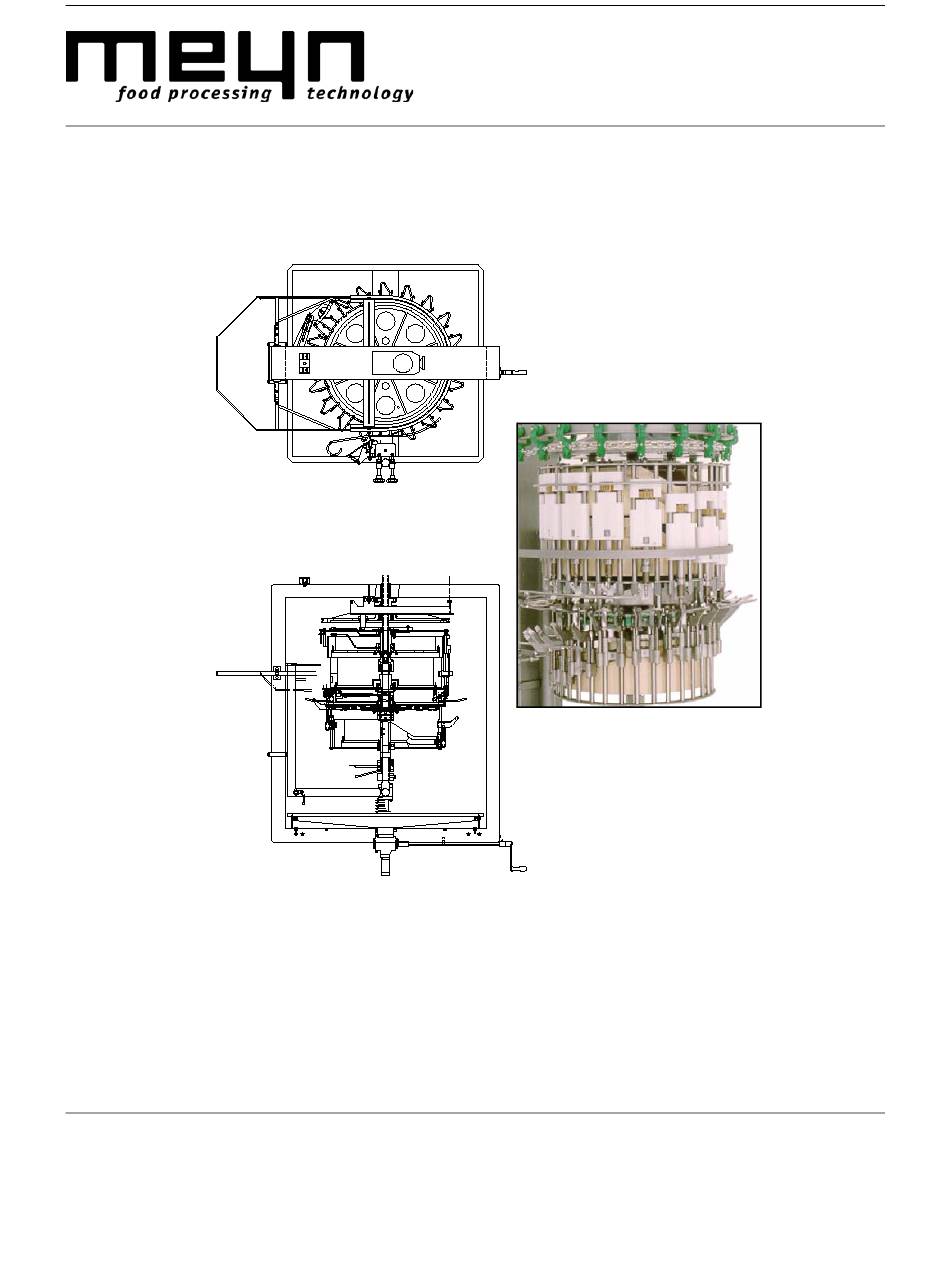

Vent Cutter
User- and Maintenance manual
0100-5
Meyn Food Processing Technology B.V., Noordeinde 68, 1511 AE Oostzaan, the Netherlands,
P.O. Box 16, 1510 AA Oostzaan, the Netherlands,
Phone: +31 (0) 75 684 3355, Fax:+31 (0) 75 684 4150,
E-mail: sales@meyn.nl, Website: www.meyn.nl,
Chamber of Commerce Zaandam nr. 35015165

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 0100-5 and is the answer not in the manual?

Questions and answers

Summary of Contents for Meyn 0100-5

  • Page 1 Vent Cutter User- and Maintenance manual 0100-5 Meyn Food Processing Technology B.V., Noordeinde 68, 1511 AE Oostzaan, the Netherlands, P.O. Box 16, 1510 AA Oostzaan, the Netherlands, Phone: +31 (0) 75 684 3355, Fax:+31 (0) 75 684 4150, E-mail: sales@meyn.nl, Website: www.meyn.nl,...

  • Page 3: Table Of Contents

    3 Installation........................17 3.1 Installing the Meyn vent cutter ................17 3.1.1 Required floor area.................. 17 3.2 The connection of the Meyn vent cutter.............. 18 4 Operation........................19 4.1 The manual controls ................... 19 4.2 Preparing for the starting-up procedure .............. 19 4.3 Start-up procedure ....................
  • Page 4 7.2.8 High pressure nozzle ................49 7.2.9 Length of the intestines ................50 7.2.10 Removing units..................51 7.2.11 Torque switch (if applied) ..............52 7.3 Adjustments with machine running ..............53 7.3.1 Height of the Machine................53 © Meyn Food Processing Technology B.V.

  • Page 5: Foreword

    Meyn to supply today's customers with the solutions of tomorrow. Regardless of the size or complexity of the process, Meyn will supply its customers with situation specific solutions that are critical in reaching their objectives.

  • Page 6: This Manual

    Meyn Food Processing Technology B.V. Whilst every care is taken to ensure that the information in this document is correct, no liability can be accepted by MEYN for loss, damage or injury caused by any errors in, or omissions from, the information given.

  • Page 7: Introduction

    Water connection 3/4” Shackle pitch 12” Water consumption ** 0.6 m³/h Length (L) 1,745 mm Drain connection DIN100 Width (W1) 1,295 mm Noise level 70 dB(A) Width (W2) 680 mm Table 1.1 Technical specifications. © Meyn Food Processing Technology B.V.
  • Page 8 Number of units Water connection 3/4” Shackle pitch 8” Water consumption 0.6 m³/h Length (L) 2,335 mm Drain connection DIN100 Width (W1) 1,640 mm Noise level 70 dB(A) Width (W2) 970 mm Table 1.4 Technical specifications. © Meyn Food Processing Technology B.V.
  • Page 9 Number of units Water connection 3/4” Shackle pitch 6” Water consumption 0.6 m³/h Length (L) 2,335 mm Drain connection DIN100 Width (W1) 1,640 mm Noise level 70 dB(A) Width (W2) 970 mm Table 1.6 Technical specifications. © Meyn Food Processing Technology B.V.

  • Page 10: General Arrangement Drawing

    Introduction 1.2 General arrangement drawing Figure 1.2 Meyn Vent cutter outside and inside detail. Meyn Vent cutter The machine consists of the following main components: Evisceration frame. Main shaft. Drive wheel (180° bend). Hand wheel. Drill unit. Lift-up unit. Capstan wheel.

  • Page 11: What Is A Meyn Vent Cutter

    Removing the vent and the bur- sa is a processing step to prepare the bird for Meyn open cutter. The purpose of the Meyn vent cutter is removal of the vent and the bursa and hang them over the back of the bird.

  • Page 12: The End Product

    (if applied). 1.6 Performance of the machine The Meyn vent cutter is suitable for various types of poultry. The machine gives a continuous performance if the machine is maintained and adjust according to the given directives.

  • Page 13: Safety

    This chapter contains a description of safety aspects relating to the machine. It is par- ticularly important that you are fully aware of the contents of this section. The Meyn Food Processing Technology B.V. has taken all possible steps to provide you with all the necessary information concerning any dangers that may exist when the machine is used.

  • Page 14: Safety Devices (If Applied)

    Figure 2.3 The pull cord tensioner window. Tension of the pull cord • The stripe (A) must be in the middle of the window. • If necessary change the tension of the cord by turning the cord tensioner. © Meyn Food Processing Technology B.V.

  • Page 15: Safety Measures To Be Taken

    • Modify the machine in any way, will endanger the safe and proper functioning of the machine. © Meyn Food Processing Technology B.V.

  • Page 16: Safety Measures During Operation

    Never keep your hands or any other part of your body close to rotating parts while the machine is in use. Keep the covers on the machine closed during production. © Meyn Food Processing Technology B.V.

  • Page 17: Know The Pictograms

    Safety 2.4 Know the pictograms Machines manufactured by Meyn Food Processing Technology B.V. are provided with safety and protective devices. Even so, it is important to be careful when you are performing any operation on the machine. The following pictograms indicate possible dangers.
  • Page 18 Safety © Meyn Food Processing Technology B.V.

  • Page 19: Installation

    1.1 “Technical specifications”. Nevertheless, it is desirable to install the ma- chine on a floor area that makes it easy to clean and maintain. Meyn advises you to keep a clear space of 1 meter on all sides of the machine.

  • Page 20: The Connection Of The Meyn Vent Cutter

    Installation 3.2 The connection of the Meyn vent cutter After installing the vent cutter, the water must be connected. © Meyn Food Processing Technology B.V.

  • Page 21: Operation

    4.4 In production When the machine is correctly adjusted it will continue to function independently. While producing with the Vent cutter, regularly check the result of the machine see also chapter 7. 4.5 The stop procedure © Meyn Food Processing Technology B.V.

  • Page 22: The Emergency Stop

    “Tension of the pull cord” and figure below. • Check that the emergency situation has been resolved. • Switch the blue switch to “RUN” (B) to reset the emergency stop pull cord. See figure. © Meyn Food Processing Technology B.V.
  • Page 23 Figure 4.5 The pull cord tensioner window. Tension of the pull cord • The stripe (A) must be in the middle of the window. • If necessary change the tension of the cord by turning the cord tensioner. © Meyn Food Processing Technology B.V.
  • Page 24 Operation © Meyn Food Processing Technology B.V.

  • Page 25: Cleaning

    Remove coarse dirt. Switch off the main switch of the machine before disassembly for cleaning. 5.1.1 Disassembly/assembly for cleaning The Meyn Vent cutter is so designed that daily cleaning can be performed without disassembly. © Meyn Food Processing Technology B.V.

  • Page 26: General Cleaning Schedule

    • During cleaning, never point the high-pressure water jet to the control panel or motor. • For proper functioning, after cleaning the moving parts of the machine should be sprayed with a vegetable oil. © Meyn Food Processing Technology B.V.

  • Page 27: High-Pressure Water Cleaning

    The pressure should not be too high, to avoid unnecessary mist, and to protect e.g. bearings. The unit kPa (kilopascal) is SI standard for pressure: 100 kPa 14,5 PSI 1 bar 3000 kPa 435 PSI 30 bar 10000 kPa 1450 PSI 100 bar Table 5.2 © Meyn Food Processing Technology B.V.

  • Page 28: Alkaline Foam Cleaning

    It is advisable not to use a combination of detergents and disinfectants ('detergent sanitizers"). This leaves the machine too dirty to be disinfected effectively. A combination of these two methods is of no use at all. © Meyn Food Processing Technology B.V.

  • Page 29: Disinfection

    • The used disinfectant should not affect the materials which it will contact. Consult your detergent supplier to know which detergents will fulfill these specific requirements and which cleaning directions to follow. Obey these instructions. Incorrect application may be dangerous. © Meyn Food Processing Technology B.V.

  • Page 30: Acid Foam Cleaning

    An incorrect application may be dangerous. It is advisable not to use spring water for the production of foam; this water may con- tain a high degree of chloride. Tap water reduces the chance of rust. © Meyn Food Processing Technology B.V.

  • Page 31: Advising Cleaning Chemicals To The Customer

    • Do not buy unknown (cheap) products. • To follow all user instructions carefully. • Meyn Food Processing Technology does not recommend to use specific cleaning chemicals, because we do not know which chemicals are available in each specific country. We can not know the (secret, complex) composition of the products.
  • Page 32 Cleaning © Meyn Food Processing Technology B.V.

  • Page 33: Maintenance And Trouble Shooting Table

    • H1 lubricants, are used when incidental contact with food products cannot be excluded. • H2 lubricants, are used for all other applications in a food plant. For all bearings and moving parts Meyn advises to use a multi purpose NLGI 2 H1 grease with the following characteristics; • Excellent water resistance.

  • Page 34: Checklist

    Monthly, sleeve-bearing bush Check for wear. If necessary replace the sleeve- bearing bush. Yearly, Bearings on slide Replace. blocks. Yearly, Main bearing Check clearance. If necessary replace the main bearing. Table 6.1 Checklist © Meyn Food Processing Technology B.V.

  • Page 35: Lubrication-Point List

    Bearings drive wheel. Every two weeks, See section 6.1 Bearings upper plate. Every two weeks, See section 6.1. Bearings lower plate. Every two weeks, See section 6.1. Bearings lift-up drum. Table 6.2 Lubrication-point list © Meyn Food Processing Technology B.V.

  • Page 36: Trouble Shooting Table

    • Lower the position of the bird. tines. deep. • Probes not adjusted right. • Adjust probes. Back or kidneys • Birds are not correctly po- • Put the machine into the cor- damaged. sitioned. rect position. © Meyn Food Processing Technology B.V.
  • Page 37 • Raise bottom cam . off birds. • Back plates out too far. • Adjust back plate cam. • Back plate cam not in • Adjust back plate cam. right position. Table 6.3 Trouble shooting table. © Meyn Food Processing Technology B.V.
  • Page 38 Maintenance and trouble shooting table © Meyn Food Processing Technology B.V.

  • Page 39: Disassembly/Assembly And Adjustments

    Put marks on the parts to be readjusted before changing the basic settings. This will save you a lot of time and annoyance. Tip! Place warning signs with the control panels of the machine and the overhead conveyor. © Meyn Food Processing Technology B.V.

  • Page 40: Adjustments With Machine Not Running

    • Adjust the bars in height by means of the sleeves (G). • Tighten the nuts (E). Horizontal adjustment: • Loosen the serrated knobs. • Put the guides in the desired position. • Tighten the serrated knobs. © Meyn Food Processing Technology B.V.

  • Page 41: Adjust The Cams

    • Top cam (A) • Knife unit cam (B). • Tail clip cam (C). • Back plate cam (D). • Bottom cam (E). Figure 7.8 View back plate cam. • Back plate cam (D). © Meyn Food Processing Technology B.V.

  • Page 42: Top Cam

    • Loosen four bolts (A). • Loosen four nuts (B). • Turn the cam in the desired position. • Tighten the bolts (A) and nuts (B). Figure 7.11 Adjust the knife unit cam. B (4x) © Meyn Food Processing Technology B.V.

  • Page 43: Tail Clip Cam

    Change the distance To change the distance of the back plates • Move bolt (B) clockwise: The back plate will slide out less. • Or move bolt (B) counter clockwise: Back plate will slide out more. © Meyn Food Processing Technology B.V.

  • Page 44: The Bottom Cam

    7.2.3 Position of the cams 7.2.3.1 In feed side Figure 7.15 Out feed side • The bend (A) in the curve must be in line with the centre line (B) of the water pipe. © Meyn Food Processing Technology B.V.

  • Page 45: Out Feed Side

    Disassembly/assembly and adjustments 7.2.3.2 Out feed side Figure 7.16 In feed side • The bend in the curve of the three cams must be in line (A) with each other. © Meyn Food Processing Technology B.V.

  • Page 46: Back Plate Cam

    7.2.3.3 Back plate cam Figure 7.17 Back plate cam Back plate cam • The back plate should start to come out (A) when the distance leg loop, top lifting unit (X) is approximately 2 inch (51 mm). © Meyn Food Processing Technology B.V.
  • Page 47 Disassembly/assembly and adjustments Figure 7.18 Tail clip cam Tail clip cam • The tail clip should start to go in when the distance bottom leg loop: Top lifting unit is approximately 3 inch (76 mm). © Meyn Food Processing Technology B.V.

  • Page 48: The In Feed

    • Turn shaft (D) right to move probe (E) deeper in nylon clamp bush (A). • Turn shaft (D) left to move probe (E) less deep in nylon clamp bush (A). • Tighten nut (C). © Meyn Food Processing Technology B.V.

  • Page 49: Vent Knife

    ∅ 29 Left turning 0338.0001.332.00 0595.0000.038.00 0595.0000.022.00 ∅ 32 Right turning 0338.0000.316.00 0595.0000.038.00 0595.0000.022.00 ∅ 32 Left turning 0338.0001.331.00 0595.0000.038.00 0595.0000.022.00 ∅33,5 Left turning 0338.0000.317.00 0595.0000.038.00 0595.0000.022.00 ∅ 33.5 Right turning 0338.0001.333.00 0595.0000.038.00 0595.0000.022.00 © Meyn Food Processing Technology B.V.

  • Page 50: Position Of The Back Plates

    • If the back plates are not cut out far enough the bursa of fabricius won´t be cut out (bursa). © Meyn Food Processing Technology B.V.

  • Page 51: High Pressure Nozzle

    If the vents are not sprayed of the probes by the first nozzle there will be more vent pulled off. If not all the vents are sprayed of the probes after the second nozzle the performance of the machine will be bad. © Meyn Food Processing Technology B.V.

  • Page 52: Length Of The Intestines

    • To make X shorter the shaft needs to be turned against the running direction of the machine. • To make X longer the shaft needs to be turned with the running direction of the machine. © Meyn Food Processing Technology B.V.

  • Page 53: Removing Units

    Figure 7.25 Remove a top unit. Top unit • Remove four bolts (A). • Remove. • Replace four bolts (A). Figure 7.26 Remove a tail clip Tail clip unit • Remove two bolts (C). • Remove tail clip. © Meyn Food Processing Technology B.V.

  • Page 54: Torque Switch (If Applied)

    If the machine is not turning stable it might be necessary to change the spring tension. • Loosen nut (A). • Turn bolt (B) to obtain the desired spring tension. • Tighten nut (A). © Meyn Food Processing Technology B.V.

  • Page 55: Adjustments With Machine Running

    7.3.1 Height of the Machine. The height of the machine is adjustable by using a handwheel (A). The height of the curve is adjustable by using a capstan wheel (B). Figure 7.29 Height adjustments. © Meyn Food Processing Technology B.V.
  • Page 56 Disassembly/assembly and adjustments © Meyn Food Processing Technology B.V.
  • Page 57 The data published correspond, under reservation of all our rights, to the most recent information at the moment of publication and are subject to future 09-08-05 modifications. Meyn reserves the right to modify the construction and the execution of its products at any time. No rights can be derived from this publication.
  • Page 58 Meyn vent cutter • Curve driven units. • High pressure water needed only. • Easy to adjust.
