Summary of Contents for Cybertek PS202

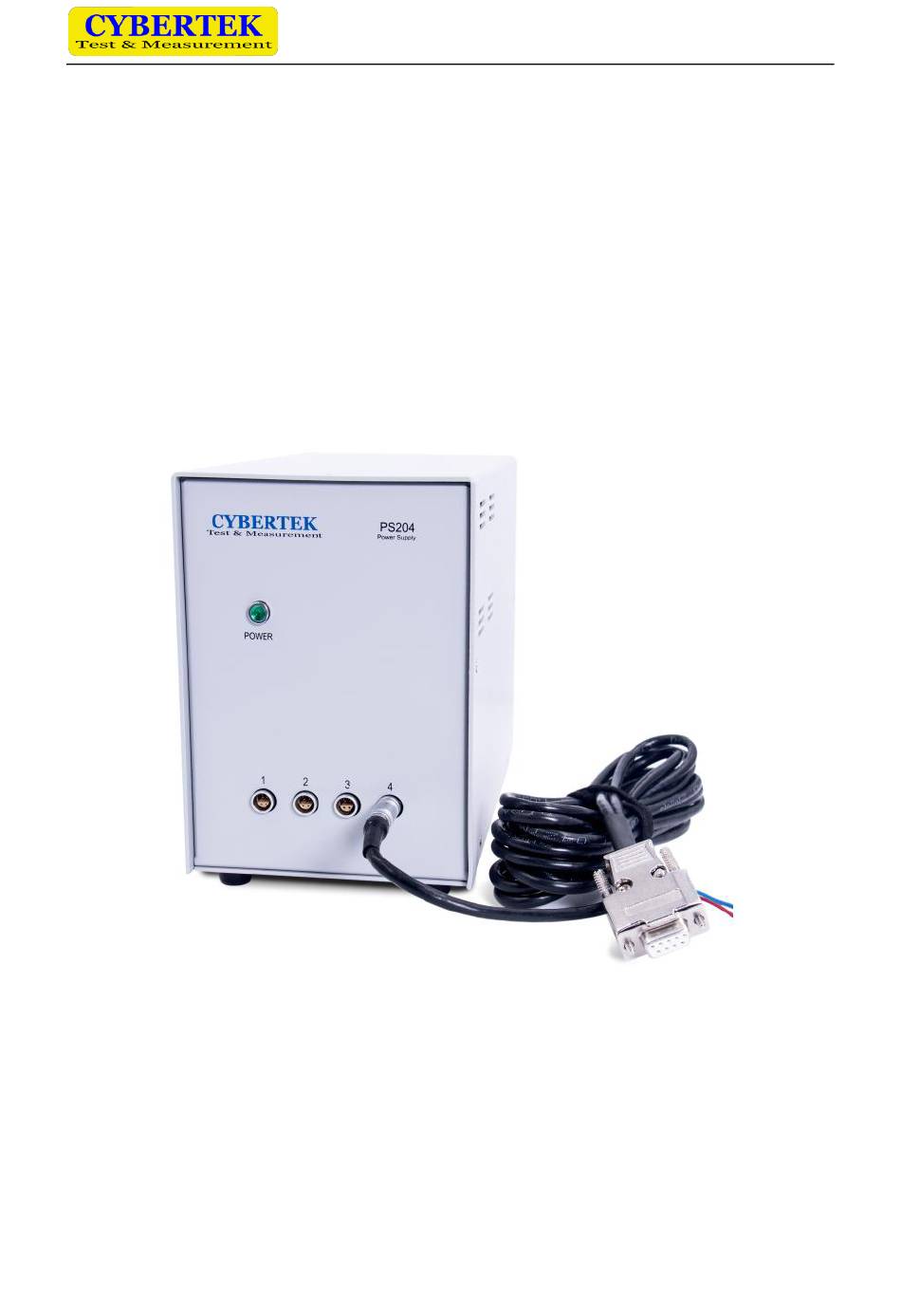

- Page 1 Shenzhen Zhiyong Electronics Co., Ltd Current Transducer Power Supply PS202/204 Shenzhen Zhiyong Electronics Co., Ltd www.cybertek.cn...
- Page 2 Shenzhen Zhiyong Electronics Co., Ltd Preface First of all, thank you for purchasing our products, this instruction manual is the description about the function, usage, operation attention points, etc. Before use, please read the instructions carefully and use correctly. Manual annotation will use the following symbols to distinguish. This symbol means it is harmful to the machine and human body;...
- Page 3 Shenzhen Zhiyong Electronics Co., Ltd 1. Summary PS202/204 is the power supply designed for CTA series high accuracy current transducer. PS202 has two channels and can power up two CTA series at max. PS204 has four channels and can power up four CTA series at max.
- Page 4 3.2. Test Diagram of PS202/204 and CTA60/200 4. Accessories 5. Steps of Test Installation Plug in the LEMO connector before testing and turn on the power of PS202/204 The output connector of CTA series transducer cannot be open circuit. ...
- Page 5 Packing list Name Number Power Supply AC Power supply cable Instruction Manual Warranty Card CYBERTEK SHENZHEN ZHIYONG ELECTRONICS CO., LTD Addr： Room A1702, Building 4, TianAn Cyber Park, HuangGe North Road, LongGang District, ShenZhen City, China Tel: +86-400 852 0005 +86-755-86628000...
