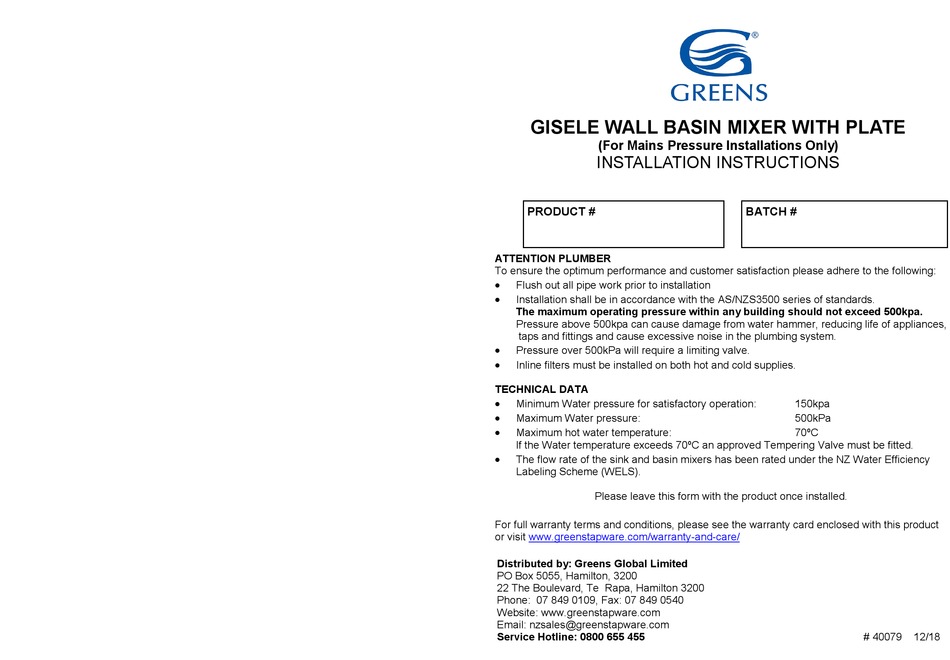

GREENS Gisele Installation Instructions

GISELE WALL BASIN MIXER WITH PLATE
(For Mains Pressure Installations Only)
Installation Instructions
PRODUCT #
ATTENTION PLUMBER
To ensure the optimum performance and customer satisfaction please adhere to the following:

Flush out all pipe work prior to installation

Installation shall be in accordance with the AS/NZS3500 series of standards.
The maximum operating pressure within any building should not exceed 500kpa.
Pressure above 500kpa can cause damage from water hammer, reducing life of appliances,
taps and fittings and cause excessive noise in the plumbing system.

Pressure over 500kPa will require a limiting valve.

Inline filters must be installed on both hot and cold supplies.
TECHNICAL DATA

Minimum Water pressure for satisfactory operation:

Maximum Water pressure:

Maximum hot water temperature:
If the Water temperature exceeds 70ºC an approved Tempering Valve must be fitted.

The flow rate of the sink and basin mixers has been rated under the NZ Water Efficiency
Labeling Scheme (WELS).
Please leave this form with the product once installed.
For full warranty terms and conditions, please see the warranty card enclosed with this product
or visit www.greenstapware.com/warranty-and-care/
Distributed by: Greens Global Limited
PO Box 5055, Hamilton, 3200
22 The Boulevard, Te Rapa, Hamilton 3200
Phone: 07 849 0109, Fax: 07 849 0540
Website: www.greenstapware.com
Email: nzsales@greenstapware.com
Service Hotline: 0800 655 455
BATCH #
150kpa
500kPa
70ºC
# 40079 12/18
