Summary of Contents for PureLink VIP-CAM-20-10x-USB2

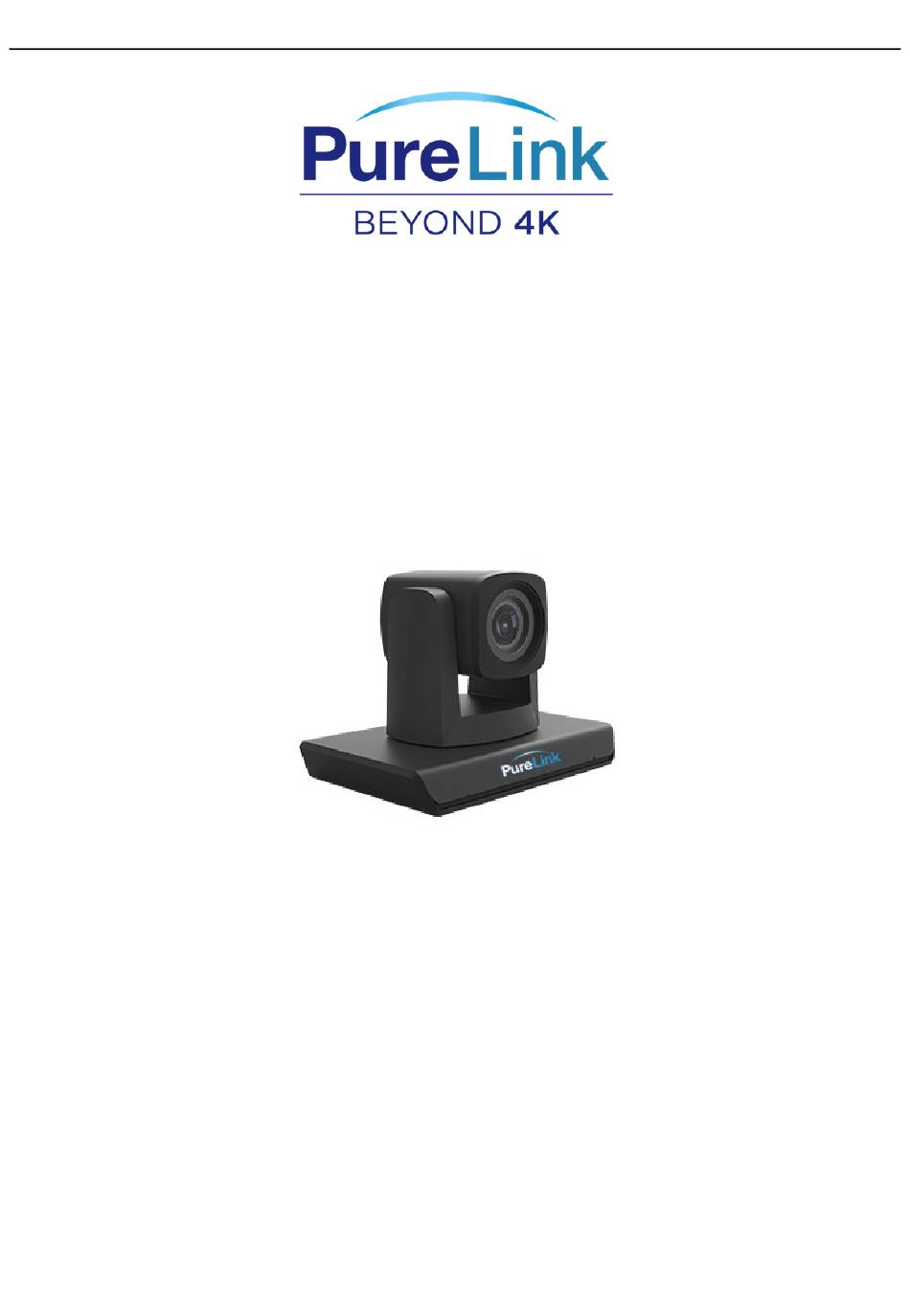

  • Page 1 VIP-CAM-20-10x-USB2 PTZ CAMERA w/HDMI & USB Output USER MANUAL PureLink™ 22-10 State Route 208 Fair Lawn, NJ 07410 USA Tel: +1.201.488.3232 Fax: +1.201.621.6118 E-mail: sales@purelinkav.com For order support, please contact your local dealer. For technical support, please contact us at support@purelinkav.com...
  • Page 2 Safety Precautions n Before installing the device, please read this manual carefully and follow instructions indicated to ensure proper operation. Please keep this manual for future reference. n Before powering on the device, please check the input power voltage carefully, the camera accepts DC5V, otherwise, it may cause damage to the camera.
  • Page 3: Table Of Contents

    Table of Contents PRODUCT OVERVIEW ------------------------------------------------------------ 1 --------------------------------------------------------------------------------------------------------- 1 FEATURES ----------------------------------------------------------------------------------------------------- 1 PACKING -------------------------------------------------------------------- 2 MAIN PARTS AND CONTROL INTERFACES ----------------------------------------------------------------------------------------------- 3 REMOTE CONTROL INSTALLATION -------------------------------------------------------------------- 5 ------------------------------------------------------------------------------ 5 DESKTOP MOUNT INSTALLATION ----------------------------------------------------------------------------------- 5 WALL MOUNT INSTALLATION CONNECTIONS ------------------------------------------------------------------- 6 ON SCREEN DISPLAY MENUS -------------------------------------------------- 7 ANNEX 1 TECHNICAL SPECIFICATIONS -------------------------------------- 11 ANNEX 2 SIZE AND DIMENSION ----------------------------------------------- 12...
  • Page 4: Product Overview

    Packing List PRODUCT OVERVIEW When you open the package, please make sure below items are included. If any items are missing, please contact your supplier. Features PTZ Camera (1) n 2.12MP, 1/2. 9” CMOS sensor; n Standard UVC protocol; n USB2.0 high speed output, up to 1920x1080P30;...
  • Page 5: Main Parts And Control Interfaces

    Main Parts and Control Interfaces Bottom View PTZ Camera Front View 4 Power 5 HDMI 6 USB interface 1 Camera Module 7 RJ45 Control Port (RS232) 2 Power Indicator 8 Tripod Mounting hole 1/4” Rear View Pin Definition of Control Port Pin No Definition VIP-CAM-CTRL1 USER MANUAL...
  • Page 6: Remote Control

    2 Camera Selection Button Used to switch among 4 cameras, press 1-4 number buttons to control cameras with 1-4 address respectively. For Remote Control example, press button 1 to control the camera with address 1. 3 Focus Press for near focus. Press for far focus.
  • Page 7 After the camera has been connected to Input number key(s), and press to call a power source, press this button to turn on preset. / off the camera. “ ”button to set a preset. 10 Reserved buttons(F1, F2, F3, F4) Move the camera to PTZ value etc., and These buttons are reserved for future use.
  • Page 8: Installation

    Wall Mount Installation INSTALLATION (Bracket optional) The camera has 3 installation types: desktop, wall mount, and ceiling mount. Note Make sure the installed place is strong and safe enough to hold the 1. According to diameter and position of camera and relative parts. the 2 installation holes (As shown below) on the bracket, drill 2 holes on the wall Desktop Mount Installation...
  • Page 9: Connections

    Connections USB: Video and control Connect the supplied USB-A to USB-A cable. RS232 control Please see the diagram for correct wiring of the RS232 control using the RJ45 jack. Power Connect the supplied 12VDC power adapter HDMI Connect an HDMI cable VIP-CAM-CTRL1 USER MANUAL VERSION 1.0...
  • Page 10: On Screen Display Menus

    On Screen Display Menus Top Level Menu VIDEO EXPOSURE WHITE BALANCE PAN TILT ZOOM SYSTEM STATUS RESTORE DEFAULT VIDEO Menu VIP-CAM-CTRL1 USER MANUAL VERSION 1.0...
  • Page 11 EXPOSURE Menu WHITE BALANCE Menu (COLOR) VIP-CAM-CTRL1 USER MANUAL VERSION 1.0...
  • Page 12 Pan Tilt Zoom Menu System Menu VIP-CAM-CTRL1 USER MANUAL VERSION 1.0...
  • Page 13 Status Menu RS232 wiring Blue Ground Green TX Green/White RX VIP-CAM-CTRL1 USER MANUAL VERSION 1.0...
  • Page 14: Annex 1 Technical Specifications

    TECHNICAL SPECIFICATIONS VIDEO Image Sensor 1/2.9” CMOS, 2.12megapixel Video Format 1080P30 fps Compression H.264\MJPEG\YUY2 Focal Lens f=3mm-10mm Iris F1.4 Optical Zoom Field of View 80°~28° Focus System Sync focus Exposure Control Auto/ Manual, White Balance Auto/ Manual, Min. illumination 0.5 lux (color),0.1Lux (B/W) Support S/N Rate ≥50dB...
  • Page 15: Annex 2 Size And Dimension

    SIZE AND DIMENSIONS Front Rear Top Side Bottom...
  • Page 16: Troubleshooting

    TROUBLESHOOTING Solution Problem Possible Cause No action or image Power supply failure Check power supply Power adapter damaged Replace power adapter after powered on, Power cable connection got loosen Check & reconnect No self-testing after Repair Mechanical failure powered on, or with motor noise Not controllable from Low battery of remote controller...
  • Page 17: Warranty

    TERMS & CONDITIONS PureLink shall repair or replace the Product if it develops a material fault during the period of warranty, on condition that i) the Product has only been subject to normal use in a domestic or...
  • Page 18 Advance replacement requests must be validated by a member of PureLink’s Technical Support Team. Replacement units may be new or refurbished and is subject to availability. PureLink is responsible for shipping the Replacement Unit to your designated location by standard ground service.
