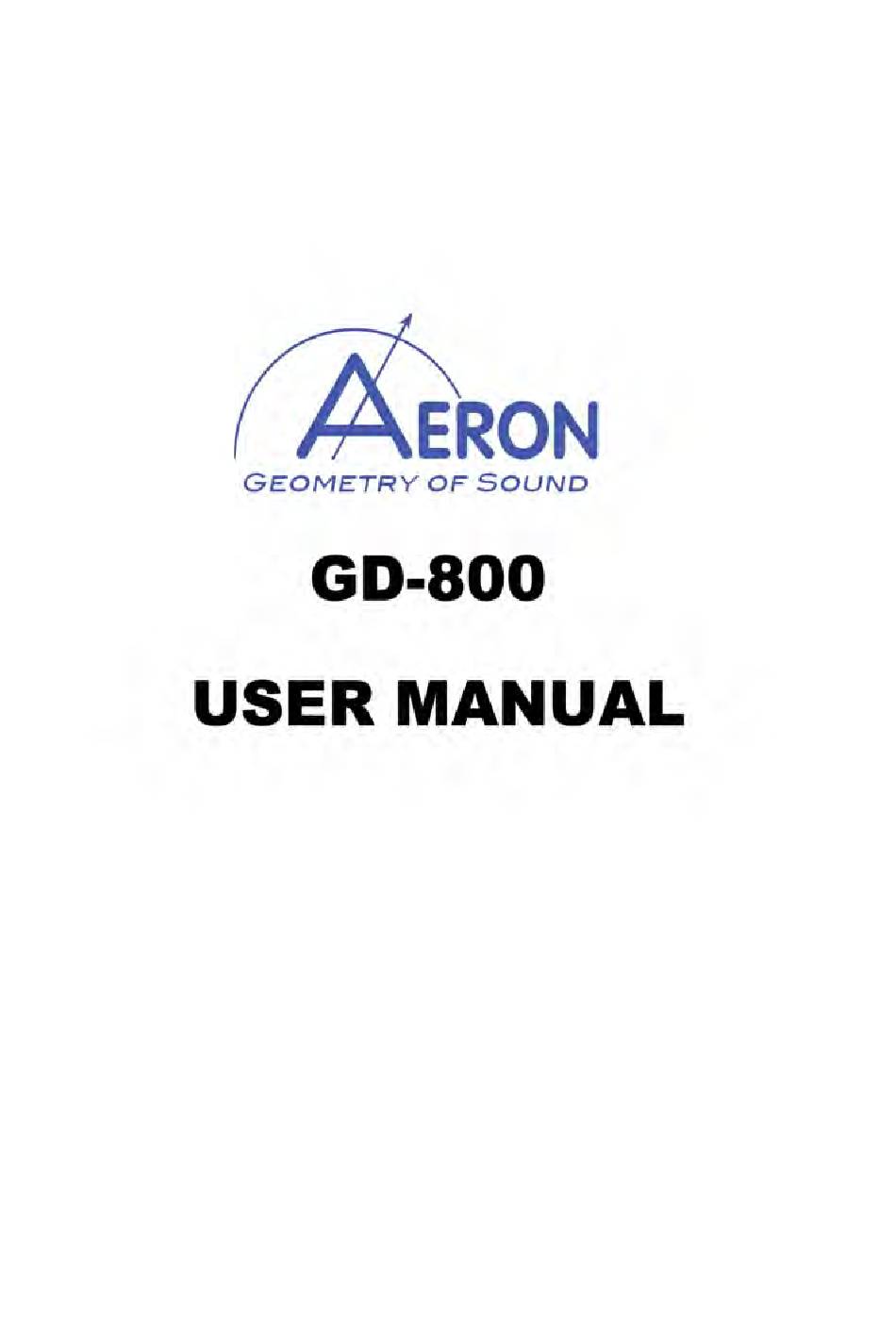

Aeron GD-800 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Summary of Contents for Aeron GD-800

  • Page 4 AERON GD-800 CONTROLS, FEATURES AND CONNECTIONS 1 Stepped Dive Pulley 2 Drive Belt * 2a Belt Hook* 3 Sub-Platter 4 Turntable Platter 5 Tonearm Counterweight * 5a Down force Scale 6 Tonearm Lift Lever 7 Tonearm Rest 8 Tonearm 9 Lid*...
  • Page 5 AERON GD-800 **The following instructions for adjusting the cartridge are provided in case the cartridge is replaced by a different model at a later date. Set-Up -Make sure the surface you wish to use the turntable on is flat and level before placing the turntable on it.

  • Page 6: Connection To The Amplifier

    Connection to the Amplifier uses a moving magnetic cartridge. Connect the phono out cables to AERON GD-800 the phono input on your amplifier of pre-amplifier (phono stage). Line inputs such as CD, Tuner, Tape, or Video are not suitable for phono inputs. Make sure the amplification of the selected input matches the type of cartridge being used.

  • Page 7: Changing Playback Speed

    Changing Playback Speed To play records at 45 RPM, first remove the platter (4). Using the belt hook (2a) provided, hook the belt (2) over the larger diameter part of the motor pulley (1). Refit the platter. To revert to 33 1/3 RPM repeat the proceedings using the smaller step on the pulley.

  • Page 8: Installing New Cartridges

    Installing New Cartridges All cartridges with half inch mounting holes can be installed on this turntable. To install a new cartridge, start by removing the two screws on the head shell, then remove the factory installed cartridge. Carefully remove the wire leads from the factory cartridge, taking care not to damage the wire leads.

  • Page 9: Strong Hum On Phono Input

    Potential Incorrect Use and Fault Conditions turntables are manufactured to the highest standards and undergo strict quality Aeron controls before leaving the factory. Faults that may possibly occur are not necessarily due to material or production faults but can sometimes be caused by incorrect use or unfortunate circumstances.

  • Page 10: General Specifications

    MM - input Amplifier connection Channel separation ＞18dB Recommended tracking force 3.5±0.5 g Output voltage 2.5mV Weight Technical Specifications: AERON GD-800 Nominal Speeds 33 1/3 & 45RPM Speed Variance ±0.8% Wow and Flutter ≤0.15% Signal to Noise -68dB 3.0-6.0g Down force Range 8.6”...
