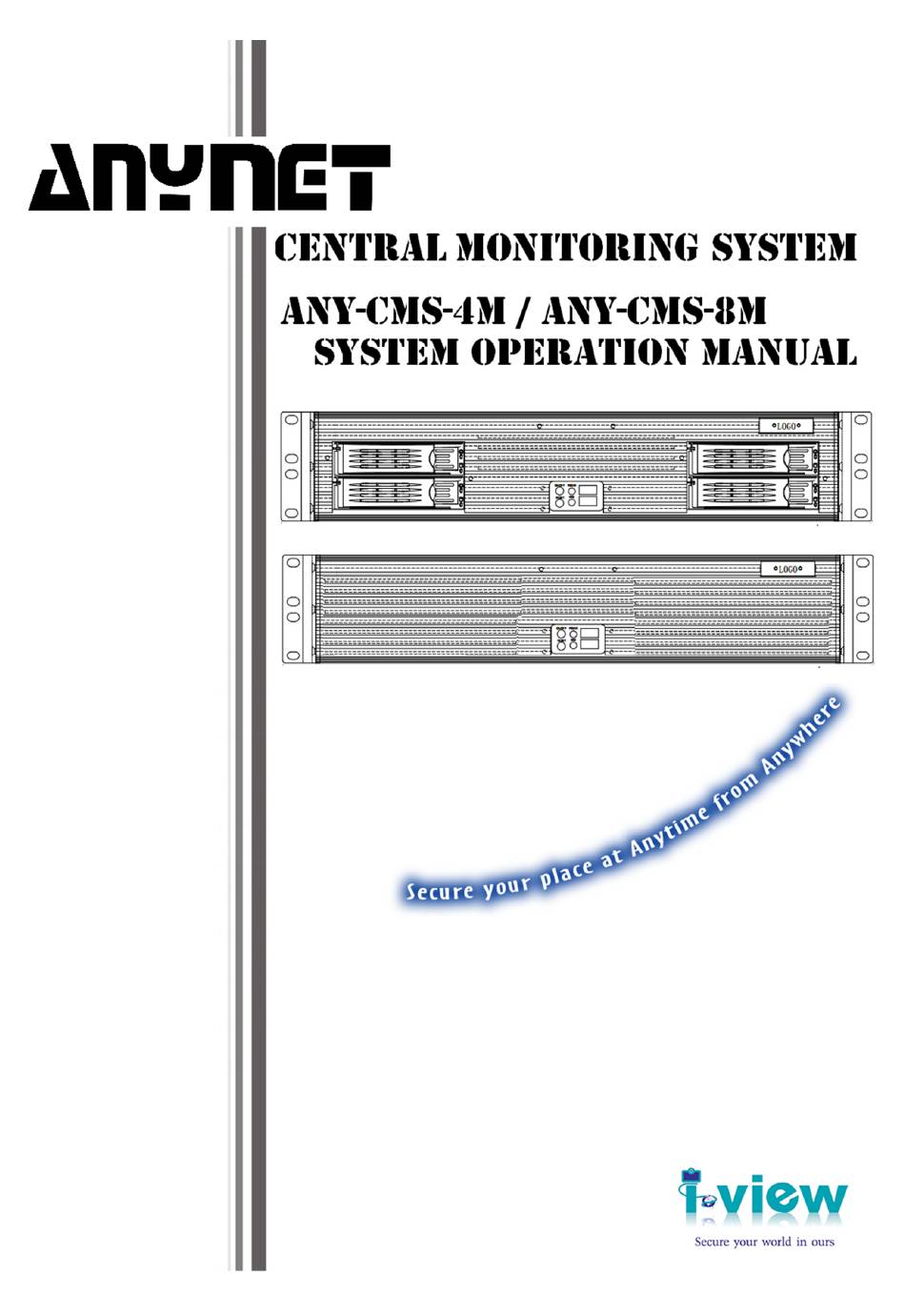

AnyNet ANY-CMS-4M Operation Manual

Central monitoring system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Version: 4.44
Doc No.: 2020033101
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ANY-CMS-4M and is the answer not in the manual?

Questions and answers

Summary of Contents for AnyNet ANY-CMS-4M

  • Page 1 Version: 4.44 Doc No.: 2020033101...

  • Page 2: Table Of Contents

    2-2. How to format the HDD from the NVR system? --------------------------------------- 18 2-3. How to rebuild the Raid HDD? ----------------------------------------------------------- 21 Chapter 3. AnyNet CMS Operating System ------------------------------------------------------------- 22 3-1. CMS Server Control Panel Configuration ----------------------------------------------- 22 3-2. CMS Server Program Overview ---------------------------------------------------------- 34 Chapter 4.
  • Page 3 4-10. Group view mode ----------------------------------------------------------------------- 100 4-11. Stop alarm siren ------------------------------------------------------------------------- 101 4-12. Setup Storage configuration ------------------------------------------------------------ 101 4-13. Remote control setup -------------------------------------------------------------------- 104...

  • Page 4: About This Guide

    About This Guide Conventions used in this guide to make sure that you perform certain tasks properly, take note of the following symbols to use throughout this manual. WARNING: Information to prevent injury to yourself when trying to complete a task. CAUTION: Information to prevent damage to the components when trying to complete a task.

  • Page 5: License Agreement

    License Agreement Notice to end-user: please read the following legal agreement carefully. Use of the Witness or any of the software provided with this agreement constitutes your acceptance of these terms. If you do not agree with the terms of this agreement, PROMPTLY RETURN the Witness system, Witness, AnyView Pro and FreeView Pro, any related software and the included items (including the Witness video system, written materials and containers) to the location where you purchased them for a full refund.
  • Page 6 days from the date of purchase. Some countries do not allow the disclaimer of implied warranties, limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so such limitation as or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights, which vary, from state to state.

  • Page 7: Trademark

    Trademark DigiCap II, DSecu, AnyNet, e-Witness, AnyNet, u-Witness XP, x-Witness, FreeView Pro, AnyView Pro, PDAView, MobileView, QuickPark and QuickFace are registered trademarks of I-View Communication Inc. Microsoft, Windows 95, 98, ME, Windows2000, XP, Vista and 7 are registered trademarks of Microsoft Corporation.

  • Page 8: Chapter 1 Product Introduction

    Embedded CMS server provides 8 HDMI Monitors display and up to 40TB HDD storage capability (10TB x4). Embedded CMS server provides Mirror O.S., 3 Monitors display and 4 hot- AnyNet-CMS Raid swap SATA drive bays up to 40 TB HDD storage capability (10TB x4) with Raid 0, 1, 5, 6,10 function.

  • Page 9: Product Package Content

    1-2. Product Package Content Thank you for choosing the I-View Embedded NVR system. Before you start installing the hardware devices with the NVR, please check the items of the product package with the list below, Recover USB Flash disk User manual & Power cable Screws for HDD installation Mouse If any of the above items is damaged or missing, contact your retailer.

  • Page 10: Product Overview

    1-4. Product Overview Front Panel of AnyNet Embedded CMS System AnyNet-CMS/AnyNet-CMS-8M CMS Front Panel 1. 19” Rack mount panel 2. Remove Hot swap HDD 3. Power On/Off switch 4. System Reset switch 5. Power LED 6. HDD LED 7. USB port...
  • Page 11 14. RJ-45 LAN port#2: Connect to Switching HUB. The default IP address is 192.168.0.1 15. Display card#1: Provide 4 ports Mini display connect to HDMI monitor. (AnyNet-CMS-8M). 16. Display card#2: Provide 4 ports Mini display connect to HDMI monitor. (AnyNet-CMS-8M).

  • Page 12: Chapter 2. Hardware Installation

    Chapter 2. Hardware Installation Recommend to use the Enterprise HDD which supports 7200 RMP or above and the same model when you use the Raid mode. (Optional) Install Hard Disk Drive (For Hot swap model Optional) ① Remove protect tray from the tray. ②...

  • Page 13: How To Build Up The Raid Hdd Function? (Optional)

    2-1. How to build up the Raid HDD function? (Optional) This process which you can setup the Raid card from Raid application Program, you can follow up the steps as below: Click button from Control panel of NVR to enable the Raid setting diagram. As this process which you can modify the Raid card setting from NVR’s O.S.
  • Page 14 Step 2. Select the ”Logical” section, then select “Virtual Device” item. Right-click Mouse and then choice the “Set Virtual Drive Properties” icon. Step 3. Setup Raid 5 or 6 or others mode, then Ctrl + HDD list to choose multi HDDs at a time. Click the “...
  • Page 15 Step 4. Click the “ Create Drive Group” icon and then click the “ Next ”. Step 5. Check the parameters of setting same as below or not? If yes, please click the “Next“ icon.
  • Page 16 Step 6. Click “Yes” to confirm the Raid parameters setting and then the Raid mode will show as below.
  • Page 17 Step 7. Click the “ Finish” icon and “Ok” to confirm the Raid setting.

  • Page 18: How To Format The Hdd From The Nvr System

    2-2. How to format the HDD from the NVR system? You need to format the HDD from the NVR system when you use the Raid HDD or standard HDDs. The O.S. of NVR is Embedded 7 and the format HDD processes the same as Windows 7. You can follow up the process Step 1.
  • Page 19 Step 3. Specify volume size which you want to the format for the HDD. Step 4. Assign drive letter or path. Step 5. Format the HDD partition; you can refer the setting as diagram setting as the right side.
  • Page 20 Step 6. Click the “Finish” button to finish HDD format. Step 7. Press the “Save System Setting” ( ) icon and reboot the system to complete the changes.

  • Page 21: How To Rebuild The Raid Hdd

    2-3. How to rebuild the Raid HDD? To rebuild the Raid HDD from Witness Pro program, please, follow the steps shown as below: Step 1. The Witness Pro program will pop up an error message and Sound warning. Step 2. Click “Raid HDD status” icon from “Storage configuration” field, you will find out the defect HDD number and click “Silence alarm”...

  • Page 22: Chapter 3. Anynet Cms Operating System

    Chapter 3. AnyNet CMS Operating System 3-1. CMS Server Control Panel Configuration Once user has finished the d HDD installation, please click the Control Panel icon ( from the right-side bottom corner of the CMS Server main screen to configure the CMS.
  • Page 23 CMS Server Control Panel Control Panel Function Description: File Explore – To select the folder or file. Device Manager – To check the device driver. Setup Network Connections– To set up the system network configuration. Display Properties– To set up the system monitor display. Disk Management–...
  • Page 24 Take note of the following precaution before you start to configure the CMS system. 1. The AnyNet-CMS provides a Bar-bond system for the distributor; therefore, it does NOT include the HDD and License of Embedded 7. So, you must install the HDD first by yourself. Especially you MUST buy the license of Embedded 7 from Microsoft, otherwise using the O.S.
  • Page 25 3-1-1. Adjust Date / Time. Please click icon from Control Panel to set CMS system “Date & Time”, “Time Zone” and “Internet Time” Press the “Save System Setting” ( ) icon and reboot the system to complete the changes., if there are no other parameters of Operation System need to modify.
  • Page 26 3-1-2. Setup Network Connections To have CMS remote monitoring and control capabilities, the user needs to connect NVR with the Internet, and set up Network Connections configuration. Please follow the steps below to set up a network configuration.. 1. Click icon on the control panel to enter the Network Connection configuration display Click the mouse right button on the “Local Area Connection”...
  • Page 27 3-1-3. Display Properties To set up the CMS server display property, simply click the icon on the control panel to select the display, resolution and orientation for each monitor. You can drop and drag Mouse to re-arrange the position of Monitors and all monitors should be at the same resolution and Full HD is strongly recommended.
  • Page 28 3-1-4. Disk Management This chapter walks you through the hard drive formatting in CMS system when you install a new Raid HDD or brand-new standard HDDs. The O.S. of CMS is Embedded 7 and the format HDD processes the same as Windows 7. You can follow up the process Step 1.
  • Page 29 Step 3. Specify volume size which you want to the format for the HDD. Step 4. Assign drive letter or path. Step 5. Format the HDD partition; you can refer the setting as diagram setting as the right side.
  • Page 30 Step 6. Click the “Finish” button to finish HDD format. Step 7. Repeat Step 1-6 to format another Hard disk Step 8. Press the “Save System Setting” ( ) icon and reboot the system to complete the changes.
  • Page 31 3-1-5. Setup Share Folders This chapter will show you how to share the system folder (e.g. ClipPro folder) and to-be-view video files for remote network users. Please follow up the steps below to setup system-sharing folders. 1. Click icon from the system control panel screen to display “Shared Folders” interface. 2.
  • Page 32 4. Please click the “Browse” button to select a folder which user wants to share, and fill in the “Share name” section, then press “Next” button and follow the instruction to complete the shared folder sharing. Fig. 3-1-5.3 Browse a share folder 5.
  • Page 33 3-1-6. Adjust Volume Control Please click the icon on the system control panel screen to adjust the system volume. Press the “Save System Setting” ( ) icon and reboot the system to complete the changes., if there are no other parameters of Operation System need to modify. 3-1-7.

  • Page 34: Cms Server Program Overview

    3-2. CMS Server Program Overview 3-2-1. The main function description: FreeView Pro : It is the main CMS server application program that provides the functionality to control and Monitoring NVRs. Multi video files playback - ezLANPlayback: An easier-to-use program allows you to playback the 16 video files at a time.
  • Page 35 Control Panel Button: Press to enter thei-View control panel interface for system configuration. Restart/Power Off Button: Press to select restart or power off the AnyNet-CMS Server. Auto Dialup- ezDialup– Allow you to auto dial up the 3G modem to connect the Internet when turn on the Witness Pro NVR program.

  • Page 36: Chapter 4. Central Monitoring System Software

    Chapter 4. Central Monitoring System Software 4-1. Start Using FreeView Pro (CMS Program) The toolbar operation options on the main screen allow users to easily use the TCP / IP network communication protocol to connect to the NVR through the Internet or local area network, and then control, display, record, play NVR images and display trigger events.
  • Page 37 4-1-1. Function descriptions of toolbar panel toolbar panel Login/Logout Button : You can log out as one user and log in as another with different privileges. The default username is “root” and the default password is “123”. This default user has full privileges. : Enlarge to a full screen, hide the toolbars and control panel.
  • Page 38 Remoter Listen Remote listen to the available audio(s) from the NVR when the live video is connected. Server. The user can also double click the live video from the screen to listen to the audio of this selected channel. Click icon to stop audio listen.
  • Page 39 PTZ control buttons: The description of Remote control the PTZ camera as below. Follow up the process as below to operate the i-View’s IP PTZ camera remotely: 1. Move the Mouse to icon and then click the left button to choose the IP PTZ camera number, and the camera number will be shown on the black circle when the PTZ camera is selected.
  • Page 40 5. Click icon to run the swivel process, the function description as below diagram. Click this icon to start Preset tour scan; there are 8 preset tours. Click this icon to enable 2-point scan; support 8 scan setting Click this icon to enable Pattern scan;...
  • Page 41 Duplicate to: Duplicate the video of this selected video and assign to another monitor. This function just can be enabling when the NVR connected more than 1 monitor. Snapshot: Take a single video of the connected camera and save the picture in the disk. Zoom in: Magnify the live images of selected video channel.

  • Page 42: Logging In The Freeview Pro Program

    4-2. Logging in the FreeView Pro program To log in as a user, click button from the top-right corner of the FreeView Pro surveillance program. You can also change the username and password when you login. To log out, simply click the same button. The default login username and password are “root”...

  • Page 43: Connect To Nvr Site - Quick Remote Connection

    4-3. Connect to NVR site – Quick remote connection 4-3-1. Connect to NVR site: Function description for the diagram of “Connect to NVR site “. 1. Select the communication way via IP address (DNS or DDNS), ID code or Group no. 2.
  • Page 44 7. Select the Compression way from drop-down menu. (This function for DVR, no use for NVR) 8. Setup the NVR connection information; please refer to the detailed setting form the next chapter. 9. Setup the Group connection information; please refer to the detailed setting form the next chapter. 10.
  • Page 45 Please follow up on the steps below for the remote access via the Internet or LAN. Remote Access- Live view Step 1. Connect the remote AnyNet-CMS Server to the Internet or Intranet first. Step 2. Click icon from the Toolbar bottom of FreeView Pro.
  • Page 46 parameters must match the NVR which you want to remote access. a.) Select “ID Code” at the top of the window. b.) Enter the “ID Code”. Please contact the vendor for the optional “ID Code” service. c.) Click icon to test if the ID code is registering successfully or not. Please note there should be one Identify Server connected successfully at least.
  • Page 47 Remote Access – Remote Playback video clip Step 1. Follow up the process Step 1~ Step 5 of Remote Access -Live view. Step 2. Select the “Remote playback video clip” mode from the drop menu of “Initial” field. Step 3. Click the “Connect“ icon to link the NVR, then will pop up the pop up the “Search video clips”...
  • Page 48 Remote Access – Remote download video clip Step 1. Follow up the process Step 1~ Step 5 of Remote Access -Live view. Step 2. Select the “Remote download video clip” mode from the drop menu of “Initial” field. Step 3. Click the “Connect“ icon to link the NVR, then will pop up the pop up the “Search video clips”...
  • Page 49 4-3-2. Connect to camera: You can select the remote connection cameras directly. This chapter will descript how to use this function. ① A l l t h e c a m e r a s w i l l b e l i s t e d o n t h e a v a i l a b l e c a m e r a s e c t i o n w h e n t h e c a m e r a s A A A A v a i l a b l e c a m e r a : v a i l a b l e c a m e r a : v a i l a b l e c a m e r a :...
  • Page 50 ⑤ S e l e c t t h e c a m e r a s f r o m t h e s e c t i o n t h e n c l i c k t h e S a v e S a v e t h e S h o r t c u t t h e S h o r t c u t : : : :...

  • Page 51: Communication Book _Advance Operation

    4-4. Communication book _Advance Operation This chapter will let the user know how to edit and store the necessary database on the Communication book for remote access to the NVRs. The build-up database will be including build up the user list (login user name and password), edit the NVR connection setting (such as basic information, connection parameters, and eMap edit), setup the NVR group connection (Such as NVR/NVRs in a group, group parameters, group view mode, and eMap tree topology setup) and Sound alarm setup…etc.
  • Page 52 Step 7. Click the “ ” icon to find out the user quickly. The search method can be by “No” or “User name” from the “Search in column” field. 4-4-2. Setup the remote connection parameters of NVR Setup the eMap parameters of NVR: Section 1: Remote access Parameters setup for NVR Information: Set up the NVR’s basic connection information.
  • Page 53 Step 4. Select the “DNS/IP Address” or “ID Code” from the “Connect with “field, then fully fill them. Step 5. Click icon to select an audio file from C:/Program(x86)/FreeView Pro folder (pre-setup) or click icon to record sound alarm. (Need to plug in the microphone and speaker to CMS server) if you want to enable the alarm sound function.
  • Page 54 Event status: Set up the Event status table to the CMS (FreeView Pro) can automatically detect the status of events from the NVR and show all event status from “Network Status” in e-Map screen. Step 1. Type the port number which must be matched with the “Event notification Port”...
  • Page 55 Event notify: Set up to “Event notify” when CMS software receives the triggered events. Email notify: The system will send out the warning message to the assigned email account when received the event trigger after you set up the E-mail notify function. Step 1.
  • Page 56 FTP notify: The system will send out the warning message to the assigned FTP server when received the event trigger after you set up the FTP notify function. Step 1. Entry the DNS of FTP server, FTP port (The default port number is 21.), the Account and Password of the FTP server.
  • Page 57 Phone call notify: The system will call out and send the pre-record audio file to the assigned Phone number when received the event trigger after you set up the Phone call notify function. Step 1. Entry the phone number which you want to notify when the event is triggered. Step 2.
  • Page 58 SMS: The system will send out the warning message to the assigned Phone number when received the event trigger after you set up the Phone call notify function. Step 1. Entry the phone number in which you want to send the SMS when the event is triggered. Step 2.
  • Page 59 Program: The system will enable third party program when received the event trigger after you set up the Program notify function. Step 1. Browse a third-party program file name from the CMS’s HDD Step 2. Entry the command code of program arguments. (Please contact the vendor) Step 3.
  • Page 60 eMap edit (NVR): The user can create an eMap to locate the cameras and peripherals devices of NVR from the CMS server then sync to NVR or sync the created eMap of CMS server to NVR. he detailed process will descript the next chapter. The cameras and peripherals devices are triggered then the icons of eMap will be flash on the map at the same time.
  • Page 61 icon to set up the alarm audio file for the device when the camera, sensor, relay and access control device is triggered. 6.) Select the available devices to locate on the eMap from the device toolbar, press and drag the devices to a suitable location with the left mouse button.
  • Page 62 1. Before synchronizing the data, please do make sure that the NVR no (See Chapter “eMap setup”), IP address, port number and login user are the same in the NVR. 2. The login user should have the privilege of eMap and authorized (should be all) cameras. There are the error messages shown below when the synchronization is failed: Fail (1): NVR does not exist.
  • Page 63 4-4-3. Setup the remote connection parameters of NVR Group Setup the eMap parameters of Group: Section 1: Remote access Parameters setup for NVR Group Information: Set up the Group’s basic connection information. Step 1. Type the Group no for the NVR Group and fill the NVR name and Note filed. Step 2.
  • Page 64 Live video: Select the NVR for viewing group live video Step 1. Type the password for the live video of the group connection. If you set up the password for this NVR group, then need to enter the password when you remote connect this group Step 2.
  • Page 65 View mode: Set up the connection method of the NVR group. Step 1. Check the “Enable group view mode” and the live videos of Group will display on the specify monitor when clicking the Group view icon. Step 2. Check the “Group rotation” and set up the duration period from the “Stay period” field, then each NVR’s split live video will rotate one by one when the group view is connected.
  • Page 66 eMap edit (Group): The user can create an eMap with the location of NVR. Step 1. Select the eMap edit filed and then click icon to browse the map file from the local folder and click the “Update” icon after the user selects the Map file. (The map file can be a BMP., PNG, or JPG format file.) Step 2.
  • Page 67 4-4-4. Assign the specify monitor for the live video of NVR Group display This chapter will descript how to assign the live video display to specify the monitor automatically. Step 1. Select the “Monitor” filed to setup the specify monitor for the live video display of NVR Group Step 2.
  • Page 68 4-4-5. Setup the eMap tree topology This chapter will descript how to set up the eMap tree topology of Group and NVR. The setup result will display on the eMap control window. Please follow up on the steps below to edit the eMap tree topology. Step 1.
  • Page 69 4-4-6. Event sound alarm and event video setup This chapter descript the sound alarm and video action set up when receiving the event trigger. Alarm setup Please follow up on the steps to set up the Sound alarm when received the event triggered. Step 1.
  • Page 70 Video setup Please follow up on the steps below to set up the video parameters when receiving the event trigger. Step 1. Check the “Video streaming from IP camera” field ((It is not suitable for the Internet system configuration), the CMS server will get the video streaming from the IP camera directly when the event is trigger.

  • Page 71: How To Use The Emap Function

    4-5. How to use the eMap function 4-5-1. Display the eMap, check the Network status and CMS health Please click “ ” icon from the video control panel to bring out the eMap screen as below. eMap tree: The is eMap tree list window, you can find out the NVR Group and NVR list here. ①...
  • Page 72 Network status: Click this field to show the connection status of all NVRs here. You can click ⑤ ⑤ ⑤ ⑤ the Scan or Scan all icon to check the connection status manually. CMS health: Click this filed to check the CPU usage, Network traffic, and HDD information of ⑥...
  • Page 73 4-5-2. Monitoring and control the operation status of connected NVRs This chapter will display the working status and control the induvial NVR. Select the NVR which you want to check from the NVR list table. NVR status: Select the NVR no from the list table, then choose the NVR status filed. All the ①...
  • Page 74 NVR health: choose the NVR health filed to check the CPU usage, Network traffic, and HDD ② ② ② ② information of NVR. Video display control: Choose the Video display control filed to control the video display ③ ③ ③ ③ window from the CMS server site.
  • Page 75 NVR control: Choose the NVR control filed, you can find out the NVR software model and ④ ④ ④ ④ version, also can restart the NVR software, reboot the NVR or restart the ezVideoTrans software from CMS server site.
  • Page 76 4-5-3. Remote Access the NVR Group and NVR from eMap This chapter will descript how to remote access live video, remote playback, and remote control the NVR from the eMap of CMS server. NVR Group remote access: Choose NVR Group from the table and then right-click Mouse or ①...
  • Page 77 It also allows clicking the icon from the eMap of NVR Group as the below diagram window. Live video: Click this field, the live video of NVR will follow up the NVR Live video setting to display on the main monitor, the detail set can refer to Communication Book Live video section.
  • Page 78 4-5-4. Remote Access the camera from eMap This chapter will descript how to remote access live video and remote playback of the camera via eMap and camera list table from the CMS server. Select the NVR and then the connected cameras will be listed and eMap will show on the right ①...

  • Page 79: Video Playback On The Freeview Pro Site

    4-6. Video playback on the FreeView Pro site The chapter will descript the video playback function, the detailed operation process description as below. 4-6-1. Search the storage path of video clips Playback video clips which recording on the FreeView Pro CMS server: Click icon to playback or delete the video files, while those videos of NVR had been connected and recorded onto the CMS server.
  • Page 80 1. Searching calendar: Search the video clips by date. The red color button of the date indicates recorded video data or select the time period which you want to select for playback. 2. Select NVR site: The CMS server records the video into the HDD when remote connect the NVRs. You should identify the playback video files from which NVR connected cameras at this drop- down menu.
  • Page 81 quickly which you want to play. The maximum setting is 32 bookmark points. Playback from: This section just can use when this program uses alone (i.e. the playback program run with alone PC). You can choose the video clips from NVR/HYBRID NVR server, CMS server, Network HDD or User specify the path.
  • Page 82 You must share the HDDs right for this PC first; which installs the ezPlayback program. User specify path: You can playback the video clips of the user-specified path (Such as DVD); the process same as “Playback with Network HDD”. But you need to click the “Renew database”...
  • Page 83 4-6-2. Video playback At the playback screen, you can playback multi videos. Double click on any video screen to enlarge a single video. Move the mouse to any video screen to show the video toolbar and information of the single video.
  • Page 84 Minimize Button - Minimize this program into the taskbar. If a crossed-hand icon appears instead, you must first log out and log in again as a user with exit privilege. Hide tools bar Button - Hide the tools bar and click again to display the tools bar.
  • Page 85 Last frame – Jump to the last frame of the selected range of video clips. Synchronize – Synchronize playback all video channels with the selected video channel. Bookmark – Bookmark playback point which you want to start to playback. There is 32 Bookmark point for user setup to find out the checkpoint of video quickly.
  • Page 86 Previous video clip –Jump to the previous video clip. Next video clip –Jump next video clip. Smart search video: Mark the objects in a selected region for searching in a recorded video clips. The events will be listed in the right-side window. Please follow the introduction below to perform this function.
  • Page 87 sensitivity with the large selected search area, the system may display very tiny changes on the list, oppositely, if it is set as low sensitivity with the small search region, nothing might be found as the result. Speed: Set the searching speed for the smart search function, a higher degree represents faster speed; oppositely, a lower degree represents slower speed.
  • Page 88 How to make the merge video clip file? Please follow up the process as below: 1. Mark a start frame and an end frame of the individual video clip then click “Save” while the playback video is located at the desired point of the Start frame and click “Goto” to go back to the desired point of the Start frame.
  • Page 89 3. Browse the path and enter the file name, then click the “Merge file” icon to export the video clips. 4. Enter the edit video comment text in the start text and end text fields. Function descriptions: 1. Click & to switch video clips from the selected time range.

  • Page 90: System Configuration / Connection Ezdispatch Server Setup/ Save & Load Configuration

    4-7. System Configuration / Connection ezDispatch Server setup/ Save & Load configuration/ PTZ joystick setup ow to use the eMap function The section of System configuration, Connection ezDispatch server setup, Save/Load configuration operation, and PTZ joystick setup, the detailed operate function will descript as below. 4-7-1.
  • Page 91 Pop-up event notification Check this function the event notification message will pop up on monitor automatically when the selected events are triggered. You can select the event from the drop-down menu of Event filter field that is included “Detected motion”, Triggered sensor”, “Video loss”, “IVA functions”, “License recognition”, “Face recognition”, “Unstable video signal”, and “Triggered access controller”.
  • Page 92 Select language You can s select a different language from this section and the software will reboot after you change the language. NVR Rotation stay period Set up the stay period of rotation. Click icon the system will start to rotate base on your setting time when there are multi NVR sites remote connection. Auto login Check this function and set up the login user name and password, the software will auto- login the FreeView Pro software.
  • Page 93 4-7-2. Connection ezDispatch Server setup The ezDispatch can allocate all the notifications from the following events automatically to the standby CMS (FreeView Pro) to dispatch the CMS loading when there is more than 2 CMS server on the controller center. The ezDispatch program will arrange live video to the CMS server to balance the loading of CMS.
  • Page 94 4-7-3. Save & Load configuration It might be annoyed to repeat all steps for the system configuration if the user must install several CMS at one time. Therefore, the user can click “Save” to back up the configuration setting as “.set” file in local disk and click “Load”...

  • Page 95: User Assess Setup

    4-8. User assess setup Click icon to create usernames, passwords, and the user’s privilege to login FreeView Pro in different access levels from “User assess setup”. Supervisor username and password The default supervisor name and password is root / 123 Connect to NVR site: Allow the user to access the NVR site.
  • Page 96 Connect to multi-group: Allow enabling multi-group connection function. Storage configuration: Allow to setup the storage configuration function. Setup date and time: Allow to adjust the date/time of platform. Controller panel access: Allow to use control panel of FreeView Pro, such as remote control the I/O and PTZ camera..

  • Page 97: Application Log

    4-9. Application log Click icon to check the system logs by the date and different events types. Event types Log list Function Description of application logs: Save log button: Save the log list as a txt or xls format file. Clear log button: Clear current log list.
  • Page 98 information. 7.) Connection: Show the Network connection status of NVRs. 8.) Storage devices: Show the status of the health condition of HDD. 9.) Trigger relays output: Show the status of relays if any event is triggered. 10.) Access controller: Show access status and information. 11.) Operation: Show the record of operation modification.
  • Page 99 Please follow up the process as below to search the vie log of CMS server. 1.) Click the “ Search Log ” section to search the logs. 2.) Select the duration time to searching for the logs. 3.) Select the NVR number or none (all NVRs) from Site filed. 4.) Select event type from the drop-down menu of “Log type”...

  • Page 100: Group View Mode

    4-10. Group view mode You need to set up the NVR groups from the “Communication book “ field before running the Group view mode. You can set up the parameters of connection password, assign the specified monitor, split video mode and auto-rotation Group video from “Communication book “ field, then the system will follow up the pre-configuration to display the Group video on the screen automatically when you enable “...

  • Page 101: Stop Alarm Siren

    4-11. Stop alarm siren Click icon to stop alarm and adjust the audio volume or check “Mute”. 4-12. Setup Storage configuration 4-12-1. Storage configuration Click “Storage configuration “icon to setup the video recording on the storage device and the setting diagram will show as right site. Storage devices setup: Generally speaking, C: \ hard disk is the storage Operation System.
  • Page 102 Please setup about 3~5% free space at least before start to erase the file and delete the file about 30G per time when HDD less the setting volume of space for theCMS server.. b.) Limited recording day(s): The system will start to delete the oldest video clips when the recorded videos are over the set period.
  • Page 103 The HDD size should be the same as the existed HDD when you replace the Raid’s HDD; otherwise, it may cause the error.

  • Page 104: Remote Control Setup

    4-13. Remote control setup Click “Remote control setup “icon to setup the remote control function – Remote configure NVR via ezRClient program and 2-way audio via ezCTalk program. 4-13-1. Remote configure NVR via ezRClient program The function of ezRserver program of Witness Pro is to allow full access NVR for remote technical assistance, or to remotely setup the NVR’s configuration.
  • Page 105 4-13-2. 2-way audio via ezCTalk program This function will show how to set up the communication of the real-time audio from designated locations (NVR site) to the control center (CMS site) simultaneously. NVR site CMS server site Follow the steps below to set up audio communication: On CMS server site Step 1.
