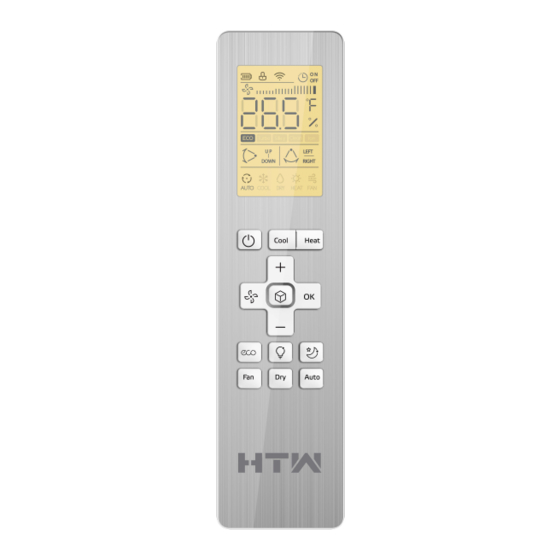

- Page 1 OWNER’S MANUAL REMOTE CONTROL RG10 HTWS026IX21DPLUS | HTWS035IX21DPLUS HTWS052IX21DPLUS | HTWS071IX21DPLUS Please, read carefully this manual before using the product. T h a n k y o u...
-
Page 3: Table Of Contents
Table of Contents Remote Controller Specifications ............02 Handling the Remote Controller ............03 Buttons and Functions ..............04 Remote Screen Indicators ..............06 How to Use Basic Functions ............07 How to Use Advanced Functions ..........10... -
Page 4: Remote Controller Specifications
Remote Controller Specifications RG10A3(F)/BGEF, RG10A3(F1)/BGEFU1, RG10A3(F1)/BGCEFU1, RG10A1(F)/BGEF, RG10A2(F)/BGCEF, RG10A10(F)/BGEF,RG10A3(H)/BGEF RG10A3(H1)/BGEFU1, RG10A3(H1)/BGCEFU1, RG10A1(H)/BGEF, RG10A2(H)/BGCEF, RG10A10(H)/BGEF, RG10A3(G)/BGEF, RG10A3(G1)/BGEFU1, RG10A3(G1)/BGCEFU1, RG10A1(G)/BGEF, RG10A2(G)/BGCEF, RG10A10(G)/BGEF. 3.0V( Dry batteries R03/LR03×2) -5°C~60°C(23°F~140°F) Quick Start Guide AUTO COOL HEAT FIT BATTERIES SELECT MODE SELECT TEMPERATURE AUTO HIGH SELECT FAN SPEED PRESS POWER BUTTON POINT REMOTE TOWARD UNIT NOT SURE WHAT A FUNCTION DOES? -
Page 5: Handling The Remote Controller
Handling the Remote Controller Inserting and Replacing Batteries NOTES FOR USING REMOTE CONTROL Your air conditioning unit may come with two The device could comply with the local national batteries(some units). Put the batteries in the regulations. remote control before use. In Canada, it should comply with •... -
Page 6: Buttons And Functions
Buttons and Functions Before you begin using your new air conditioner, make sure to familiarize yourself with its remote control. The following is a brief introduction to the remote control itself. For instructions on how to operate your air conditioner, refer to the How to Use Basic Functions section of this manual. - Page 7 MODE ON/OFF Scrolls through operation modes Turns the unit on or off. as follows: AUTO COOL DRY HEAT FAN TEMP Increases temperate in 1°C increments. ECO/GEAR Press this button to enter the Max. temperature is 30°C. energy efficient moce in a sequence of following: Scrolls through operation...
-
Page 8: Remote Screen Indicators
Remote Screen Indicators Information are displayed when the remote controller is power up. Fresh feature display(some units) (No displays when Fresh feature is activated) Sleep mode display Follow me feature display Wireless control feature display Transmission Indicator Low battery detection display(If flashes) Lights up when remote sends signal to indoor MODE display... -
Page 9: How To Use Basic Functions
How to Use Basic Functions Basic operation ATTENTION! Before operation, please ensure the unit is plugged in and power is available. SETTING TEMPERATURE The operating temperature range for units is 17-30°C (62-86°F)/20-28 C(68-82 F). You can increase or decrease the set temperature in 1°C (1°F) increments. - Page 10 DRY Mode (dehumidifying) 1. Press the MODE button to select AUTO. 2. Set your desired temperature using the TEMP or TEMP button. 3. Press the ON/OFF button to start the unit. NOTE: FAN SPEED cannot be changed in DRY mode. FAN Mode Press the MODE button to select FAN mode.
- Page 11 Setting the TIMER TIMER ON/OFF - Set the amount of time after which the unit will automatically turn on/off. TIMER ON setting Press TIMER button to initiate Press Temp. up or down button for Point remote to unit and wait 1sec, the ON time sequence.
-
Page 12: How To Use Advanced Functions
How to Use Advanced Functions Swing function Press Swing button Swing Swing The horizontal louver will swing up and down Keep pressing this button more than 2 seconds, automatically when pressing Swing button. the vertical louver swing function is activated. Press again to make it stop. - Page 13 ECO/GEAR function Press X-ECO button to enter the energy efficient mode in a sequence of following: GEAR(75%) GEAR(50%) Previous setting mode ECO..Note:This function is only available under COOL mode. ECO operation: Under cooling mode, press this button, the remote controller will adjust the temperature automatically to 24 C/75 F, fan speed of Auto to save energy (only when the set temperature is less than 24 C/75 F).
- Page 14 Silence function Keep pressing Fan button for more than 2 seconds to activate/disable Silence function(some units). Due to low frequency operation of compressor, it may result in insufficient cooling and heating capacity. Press ON/OFF, Mode, Sleep, Turbo or Clean button while operating will cancel silence function.
- Page 15 SET function Press the SET button to enter the function setting, then press SET button or TEMP or TEMP button to select the desired function. The selected symbol will flash on the display area, press the OK button to confirm. To cancel the selected function, just perform the same procedures as above.
- Page 16 PORTUGAL ITALY info@htwfrance.com info@htw.pt info.it@htwspain.com IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC. At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority deifferentiated waste collection centre or to a dealer providing this service.
