Summary of Contents for TACKLIFE CT03

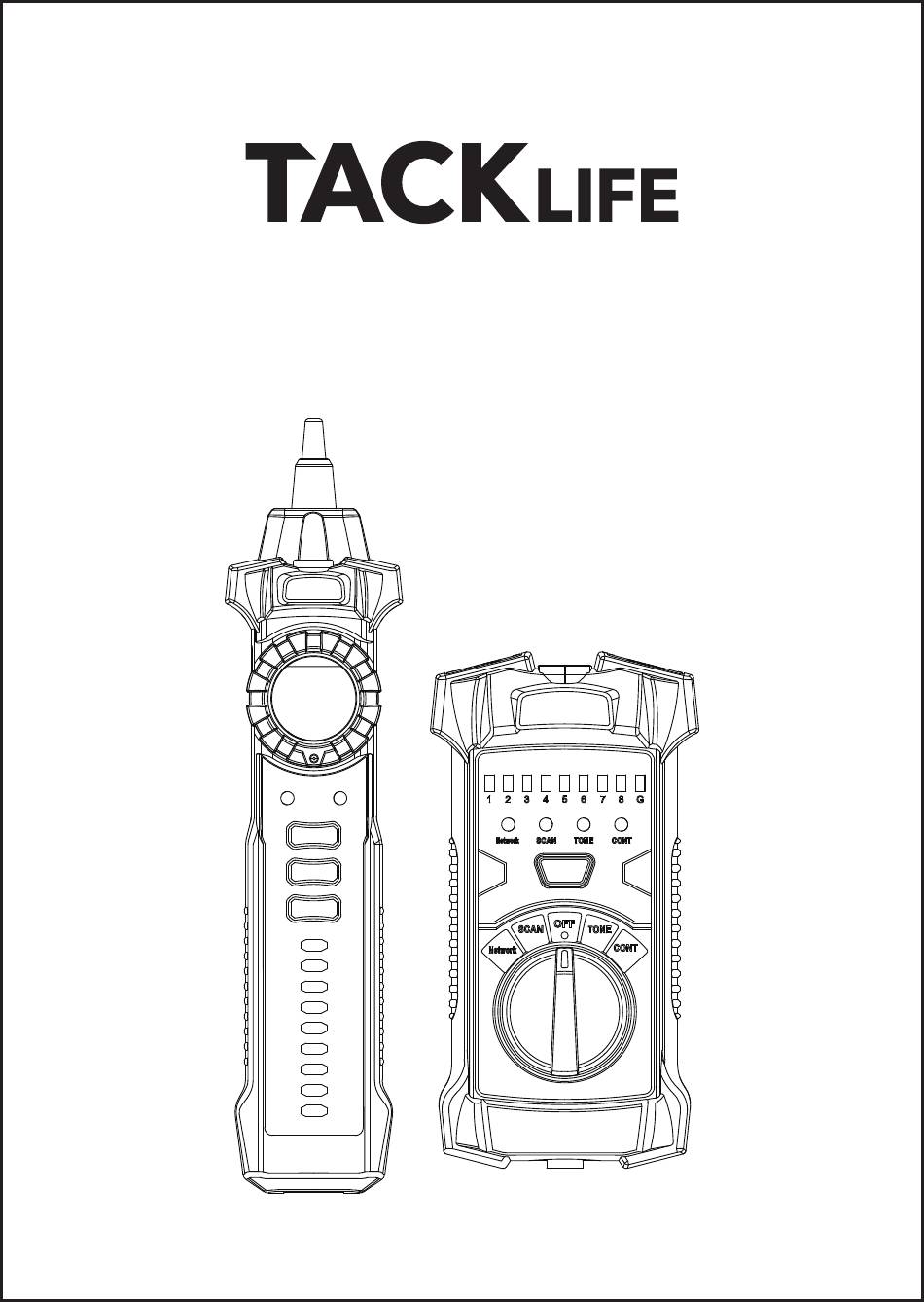

- Page 1 User Manual MULTI-FUNCTION WIRE TRACKER Model: CT03...
-
Page 2: Safety Warning
Safety Warning Attention Improper contact with electrical appliances can result in electric shock, serious injury or death. To avoid and prevent personal injury or death from electric shock, please follow the instructions carefully. ● Please read all the contents of this manual carefully. ●... -
Page 3: Function And Operation
Transmitter Reciever Function and Operation： RJ45 RJ11 Wire Tracking: The function of wire tracking refers to finding the required line quickly among numerous ones. This instrument is suitable for searching RJ45 interface network line and RJ11 interface telephone line. Operating method: Turn the transmitter's function rotary knob to the “SCAN”... - Page 4 audio signals to the line to be tested; Turn on the power of the receiver, hold the receiver and press the wire scan switch button on the receiver, at the other end of the line to be tested (such as the telephone line wiring closet, junction box, hub, switch, etc.) To detect, by compar- ing the size of the sound emitted by the receiver, the line with the loudest sound when approaching the probe is the line to be found.
- Page 5 Attention The eight LED Wire Sequence Lights on the transmitter and receiver correspond to the eight lines in the network cable. Line level or positive and negative polarity detection: Use the transmitter is enough for detection. Operation method: Battery positive and negative judgment: Rotate the transmitter's function rotary knob to the “TONE”...
- Page 6 Level determination: Rotate the transmitter's function rotary knob to the “TONE” function position and the transmitter will start working; Connect the RJ11 interface converter to the RJ11 terminal of the transmitter, and clip the red and black clips to the ends of the battery to be tested; The brighter the “TONE”...
- Page 7 Wire Connectivity detection: Only transmitter can be used to detect the connection status of the line: Rotate the knob of the transmitter to the “CONT” position and the transmitter will start working; Then connect the RJ11 interface converter to the RJ11 terminal of the transmitter, and clip the red and black clips to the ends of the line to be tested;...
-
Page 8: Battery Replacement
Signal transmission distance: about 300m Battery: transmitter 6F22/9V, 1; receiver 6F22/9V, 1 Maintaining Do not attempt to repair this instrument unless you are professional and own relevant calibration, performance testing, and repair information. Clean the case regularly with a damp cloth and a small amount of detergent. Do not use abrasives or chemical solvents. -
Page 9: Warranty Registration
Warranty Registration We are glad to invite to register the warranty information at www.tacklifetools.com.After registration,you may kindly enjoy the exclusive service... - Page 10 Shenzhen Take Tools Co., Ltd. www.tacklifetools.com www.facebook.com/Tacklife.US support@tacklifetools.com No.B714,Niulanqian Building, Minzhi Road, Longhua District, Shenzhen, Guangdong, China 518000...
