Instructions for G5 backplate replacement and motherboard mounting.
See end page.
Instructions.
The case should be stripped of all electrical items and fittings prior to kit installation
so as to avoid problems with drilling swarf. The directions below do not detail the
full stripping process.
BACKPLATE
1. With the G5 stripped and fans removed, offer up the backplate to the rear of the G5 and
do a test fit. Test fitting means simply laying the backplate against the rear of the G5
and ,using the PCI slots as a reference and starting from the upper right hand corner
place the short M3 screws through aligned holes in the G5 backplate.
2. With the new backplate lying against the G5 back, this will show you where you will
need to cut away material. I suggest scribing around the inside of where the fan holes will
be, as well as around the I/O cut out. REMEMBER you must keep the material of the G5
backplate that you are going to secure the screws to, so it is a good idea to mark with a

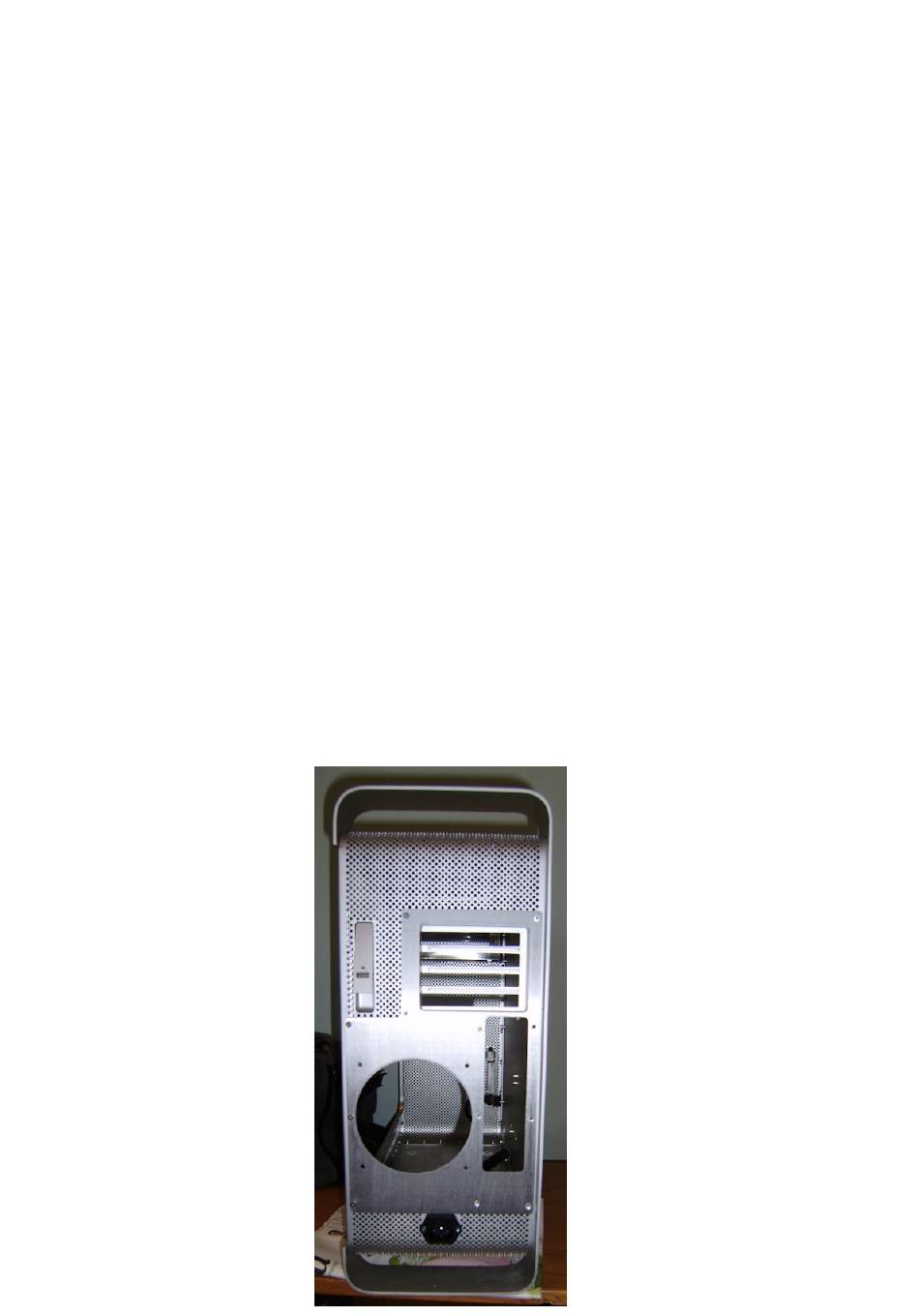

pen or similar the position of the mount holes. The panel should sit like this:
