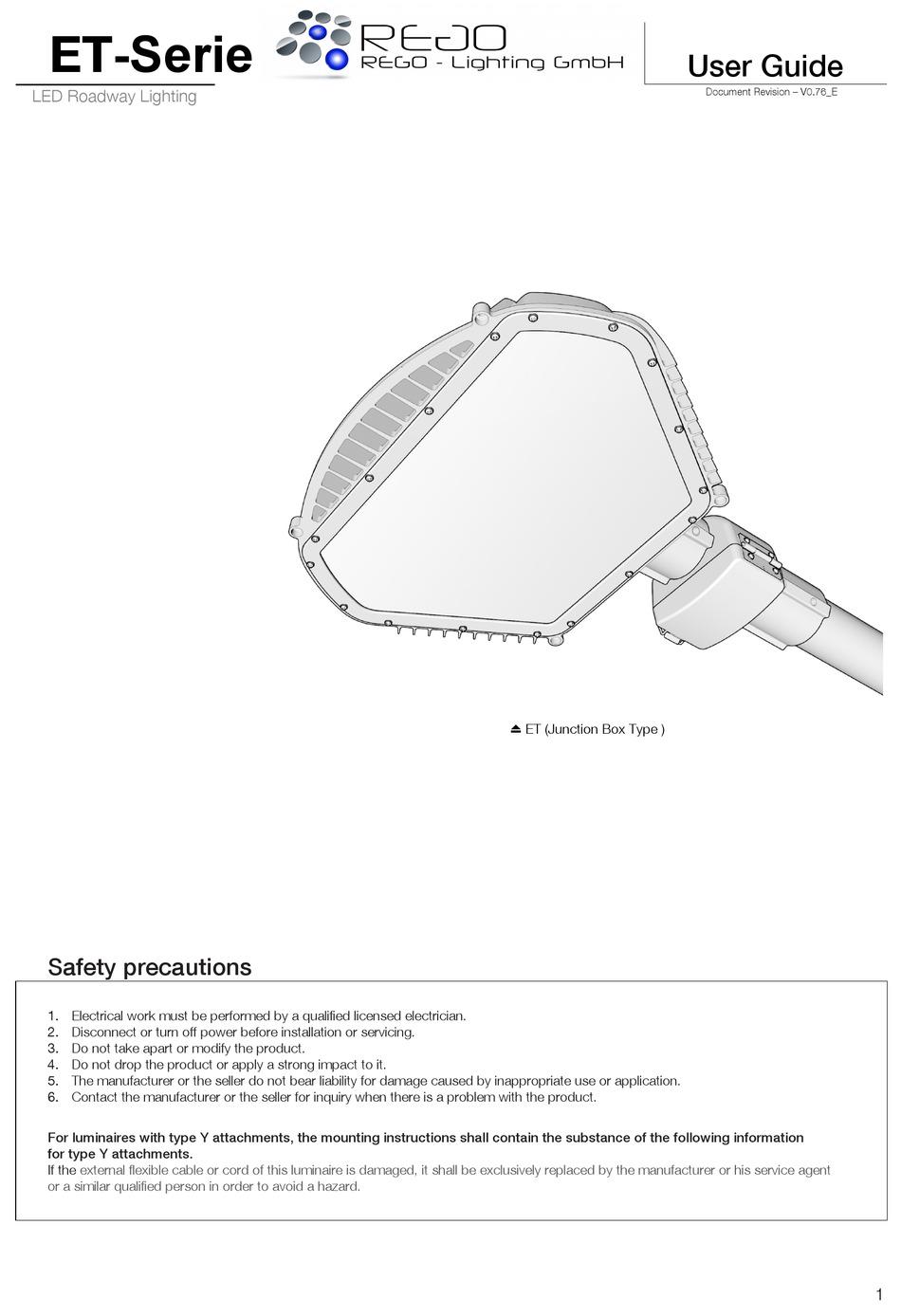

ET-Serie
User Guide
LED Roadway Lighting
Document Revision – V0.76_E
⏏ ET (Junction Box Type )

Safety precautions
1. Electrical work must be performed by a qualified licensed electrician.
2. Disconnect or turn off power before installation or servicing.
3. Do not take apart or modify the product.
4. Do not drop the product or apply a strong impact to it.
5. The manufacturer or the seller do not bear liability for damage caused by inappropriate use or application.
6. Contact the manufacturer or the seller for inquiry when there is a problem with the product.

For luminaires with type Y attachments, the mounting instructions shall contain the substance of the following information
for type Y attachments.
If the
external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent
or a similar qualified person in order to avoid a
hazard.

1

Advertisement

loading
Need help?

Need help?

Do you have a question about the ET Series and is the answer not in the manual?

Questions and answers

Summary of Contents for REGO-Lighting ET Series

  • Page 1 ET-Serie User Guide LED Roadway Lighting Document Revision – V0.76_E ⏏ ET (Junction Box Type )  Safety precautions 1. Electrical work must be performed by a qualified licensed electrician. 2. Disconnect or turn off power before installation or servicing. 3.
  • Page 2: Product Dimension

    User Guide   ET-Serie LED Roadway Lighting   Product Dimension (Junction box type) 573 x 410.5 x 156 (mm) / 22.6 x 16.2 x 6.2 (inch) Ø60.5 (mm) / Ø2.4 (inch) Pipe Applied 5.5 Kg / 12.2 lb   AC Power Cable    ...
  • Page 3 User Guide   ET-Serie LED Roadway Lighting   Installation Instruction   Connect the AC Cable to the main power supply by using a connector. (Refer to “ AC Power Cable”)      ...
  • Page 4 User Guide   ET-Serie LED Roadway Lighting   Installation Instruction    ...
  • Page 5 User Guide   ET-Serie LED Roadway Lighting   Diagram   ...
