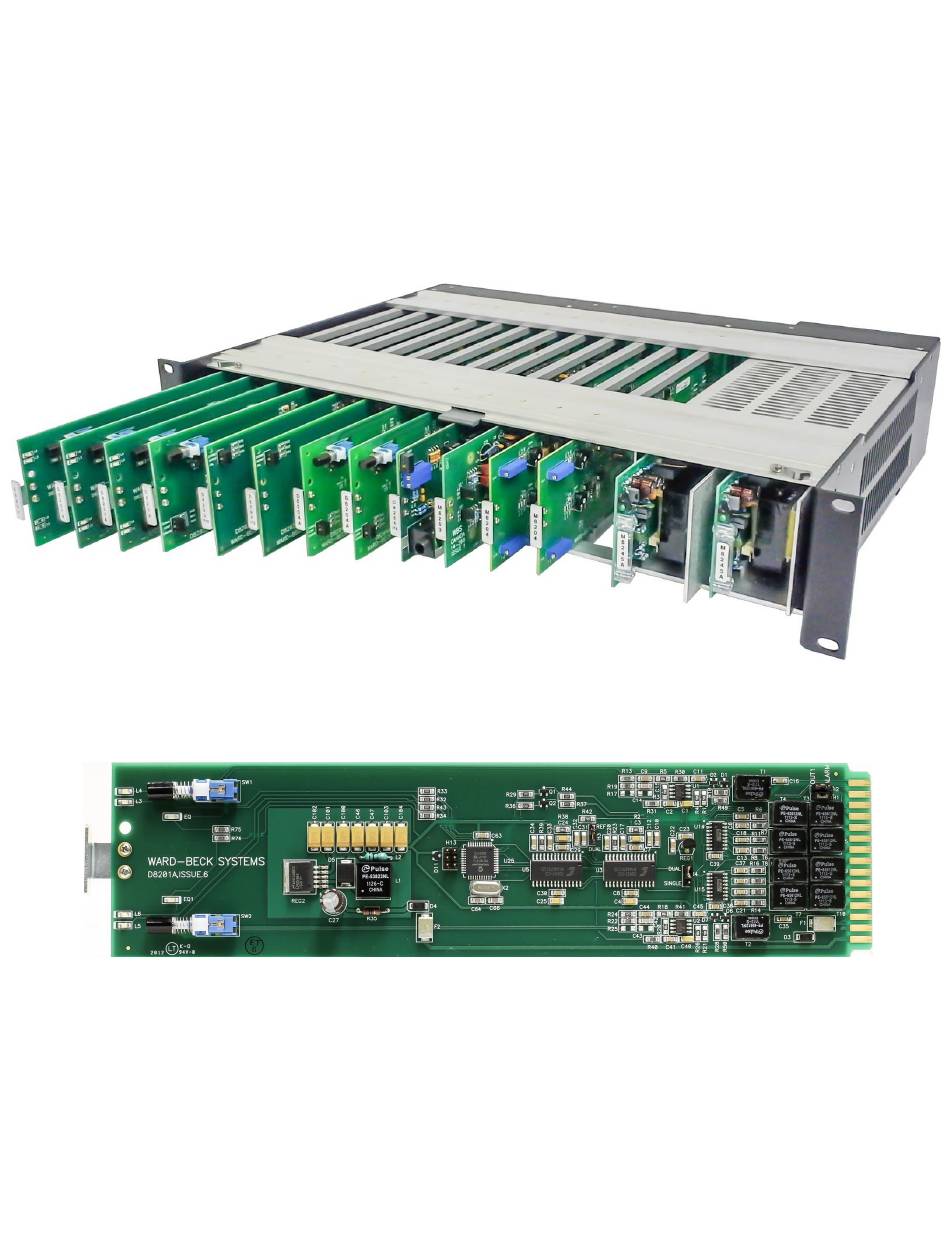

- Page 1 D8201A 8200 SERIES DISTRIBUTION SYSTEM AES/EBU RECLOCKING DISTRIBUTION AMPLIFIER by Ward-Beck Systems Rev:Jan.01 2015...
- Page 2 D8201A AES/EBU RECLOCKING DISTRIBUTION AMPLIFIER GENERAL The D8201A is an eight output AES/EBU distribution amplifier. All inputs and outputs are transformer balanced. Cable equalization and reclocking techniques enable this unit to reliably recover the incoming digital audio signal. Lock and No Lock LED tallies are located on the front edge of the amplifier card. No Lock alarms may be brought out via the rear connector in place one of the eight outputs.
- Page 3 Equalization For most applications, the D8201A only requires installation in the appropriate mounting frame and connection of input and output wiring. Factory calibrated, the D8201A can recover digital audio signals conforming to AES/EBU specifications and transmitted over 110 Ohm, shielded, twisted pair cable up to 250 metres (750 ft) long.
- Page 4 -20 V, 12 mA, MAX Dimensions approx. 1" wide x 2.75" high x 10.06" deep (25.4 mm x 70 mm x 270 mm) Weight approx. 0.255 lbs. (116 grams) Ward-Beck Systems Inc. reserves the right to change performance specifications without prior notice ...
- Page 5 D8201A Terminal Options...
- Page 6 Ward-Beck Systems Inc. will repair or replace, at its option and without charge, all said products or parts thereof which upon factory inspection prove to be defective during the warranty period, provided that: The original serial numbers are intact and have not been tampered with.
