Roger XM-2DR Operating Manual

I/o extension module

Advertisement

Quick Links

Roger Access Control System
XM-2DR / XM-2DR-BRD I/O Extension Module
Operating Manual
Firmware version: 1.0.0
Hardware version: 1.0
Document version: Rev. E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XM-2DR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Roger XM-2DR

  • Page 1 Roger Access Control System XM-2DR / XM-2DR-BRD I/O Extension Module Operating Manual Firmware version: 1.0.0 Hardware version: 1.0 Document version: Rev. E...

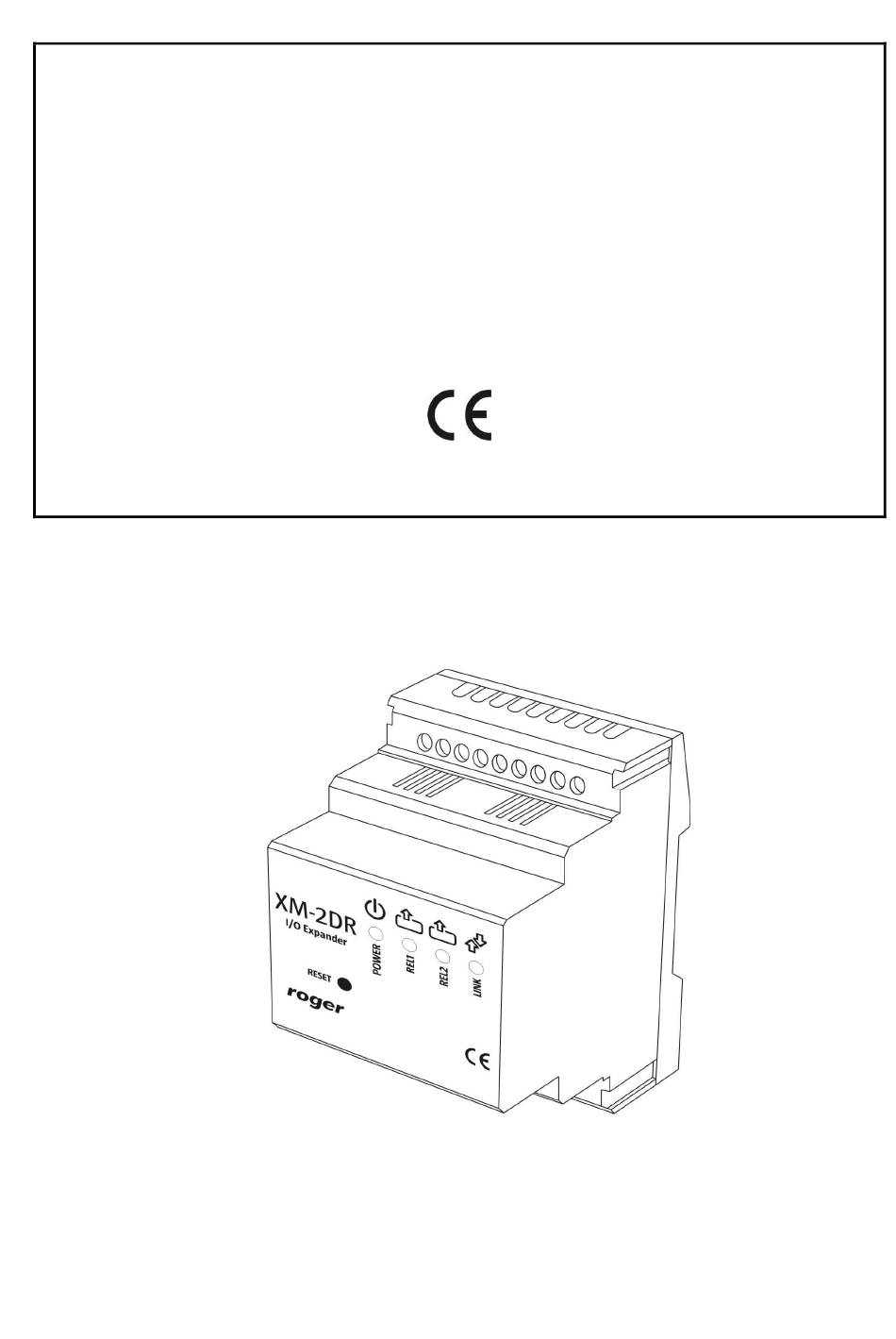

  • Page 2 ESCRIPTION AND PECIFICATION XM-2DR can be used as I/O extension module and it offers two NO/NC input lines as well as two relay outputs with isolated NO/NC contacts. The module is addressable and it can communicate only with devices, which can use RACS Clock&Data standard, namely RACS 4 controllers.
  • Page 3 REL2 relay output, common terminal REL2 relay output, contact normally closed In the fig. 2 there is shown connection diagram for XM-2DR and PR402DR access controller. The communication is performed by means of RACS Clock&Data bus. Page 3 of 7...
  • Page 4 Fig. 2 Connection of XM-2DR expander with PR402DR controller 2.2. LED indicators XM-2DR is equipped with four LED indicators. Two of them are used for signalling the state of relay outputs and they are switched on when respective relay is activated. LED Link is used for signalling the communication between XM-2DR and controller while LED Power can signal four different states according to table 3.
  • Page 5 XM-2DR Operating Manual.doc module contour (by at least 5mm at each side – see fig. 3). The installation of XM-2DR module must be executed in accordance with valid safety rules. Fig. 3 The arrangement of XM-2DR-BRD mounting holes 3. C ONFIGURATION 3.1 Module address...
  • Page 6 JP1 and JP3 signify the address ID=5 (1+4 = 5) while jumpers on all JP1…JP4 pins signify ID=15 (1+2+4+8 = 15). JP7 pins can be used for selection of operation mode. If the jumper is on JP7 then XM-2DR operates in standalone mode and then its relay outputs can be activated by electric signal at corresponding inputs i.e.
  • Page 7 Weight of the equipment is specified in the document. Contact: ROGER sp. z o.o. sp. k. 82-400 Sztum Gościszewo 59 Tel.: +48 55 272 0132 Fax: +48 55 272 0133 Tech.
