Summary of Contents for Wido WD011410130

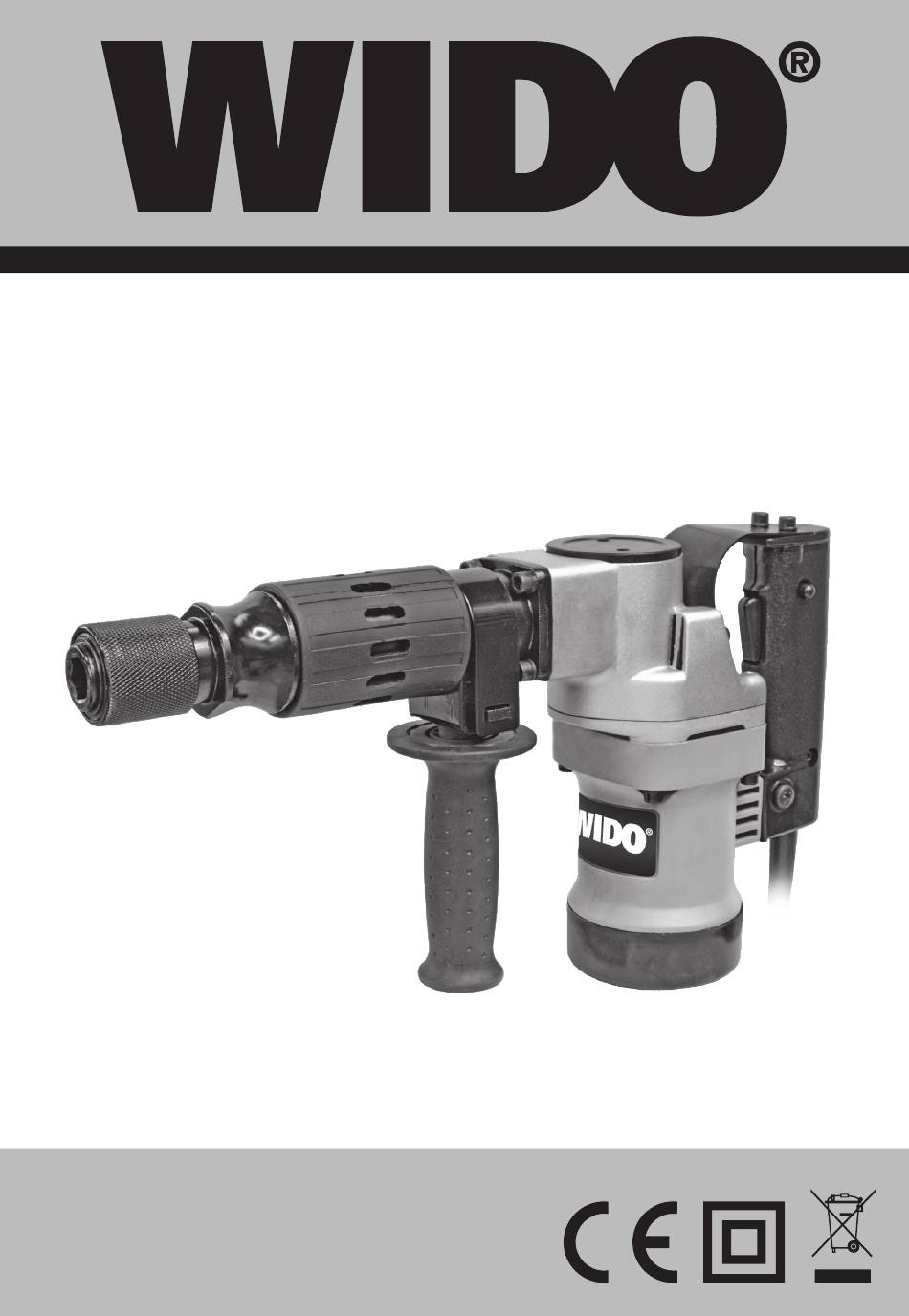

- Page 1 Demolition breaker WD011410130 1100W...
- Page 3 WD011410130 Thanks for you purchasing a WIDO product. We are confident that you will appreciate the quality of the product and you will be entirely satisfied with your purchase. Please read carefully the user safety and operating instruction on how to operate this product correctly...
- Page 4 WD011410130 Tighten...
-
Page 5: Component List
1100W DEMOLITION BREAKER COMPONENT LIST 1) Fastening sleeve 2) Crank case cap 3) Switch 4) Lock on button 5) Handle 6) Auxiliary handle 7) Spanner 8) Grease tube 9) Hex chisels NORMAL ACCESSORIES 1) Auxiliary handle: 2) Spanner: 3) Grease tube: 4) Hex chisels: 2pcs 5) Carbon brushes:... -
Page 6: General Power Tool Safety Warnings
1100W DEMOLITION BREAKER GENERAL POWER TOOL SAFETY WARNINGS: Warning: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool"... - Page 7 1100W DEMOLITION BREAKER of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
-
Page 8: Double Insulation
1100W DEMOLITION BREAKER applications which generate dust. 5) Safety boots are recommended at all times. 6) Use thick cushioned gloves and limit the exposure time by taking frequent rest periods. Vibration caused by hammer action may be harmful to your hands and arms. 7) Always use the auxiliary handles provided with the tool. -
Page 9: Technical Data
1100W DEMOLITION BREAKER TECHNICAL DATA: Model WD011410130 Voltage 110-120V AC 220-240V AC Frequency 50-60Hz 50-60Hz Power input 1100W 1100W Impact rate 2900/min 2900/min Impact force Double insulation Machine weight . 7Kg OPERATING INSTRUCTIONS NOTE: Before using the tool, read the instruction manual carefully. -
Page 10: Maintenance
1100W DEMOLITION BREAKER receptacle while the power switch is in the on position, the power tool will start operating immediately, which could cause a serious accident. 6. CHIPPING / SCALING / DEMOLITION Hold the tool firmly with both hands. Turn the tool on and apply slight pressure on the tool so that the tool will not bounce around, uncontrolled. -
Page 11: Explosive View
1100W DEMOLITION BREAKER EXPLOSIVE VIEW... -
Page 12: Part List
1100W DEMOLITION BREAKER PART LIST Q’TY Q’TY DESCRIPTION DESCRIPTION Insulation coat Ball bearing Cylinder case Shock proof column Screw Fan guide Spring washer Screw O-ring Stator Striker Suspension link O-ring Motor housing X-ring Name plate Piston Washer Piston pin Spring washer Crank case cap Screw O-ring... - Page 13 1100W DEMOLITION BREAKER Screw Holder of handle Left handle Clip band Auxiliary handle Grease box Auxiliary handle nut Spanner...
- Page 16 MADE IN CHINA www.widopt.com Copyright @ WIDO Machinery Co., Ltd. All rights reserved.
