Summary of Contents for Sutera JTJ Electronics Duo

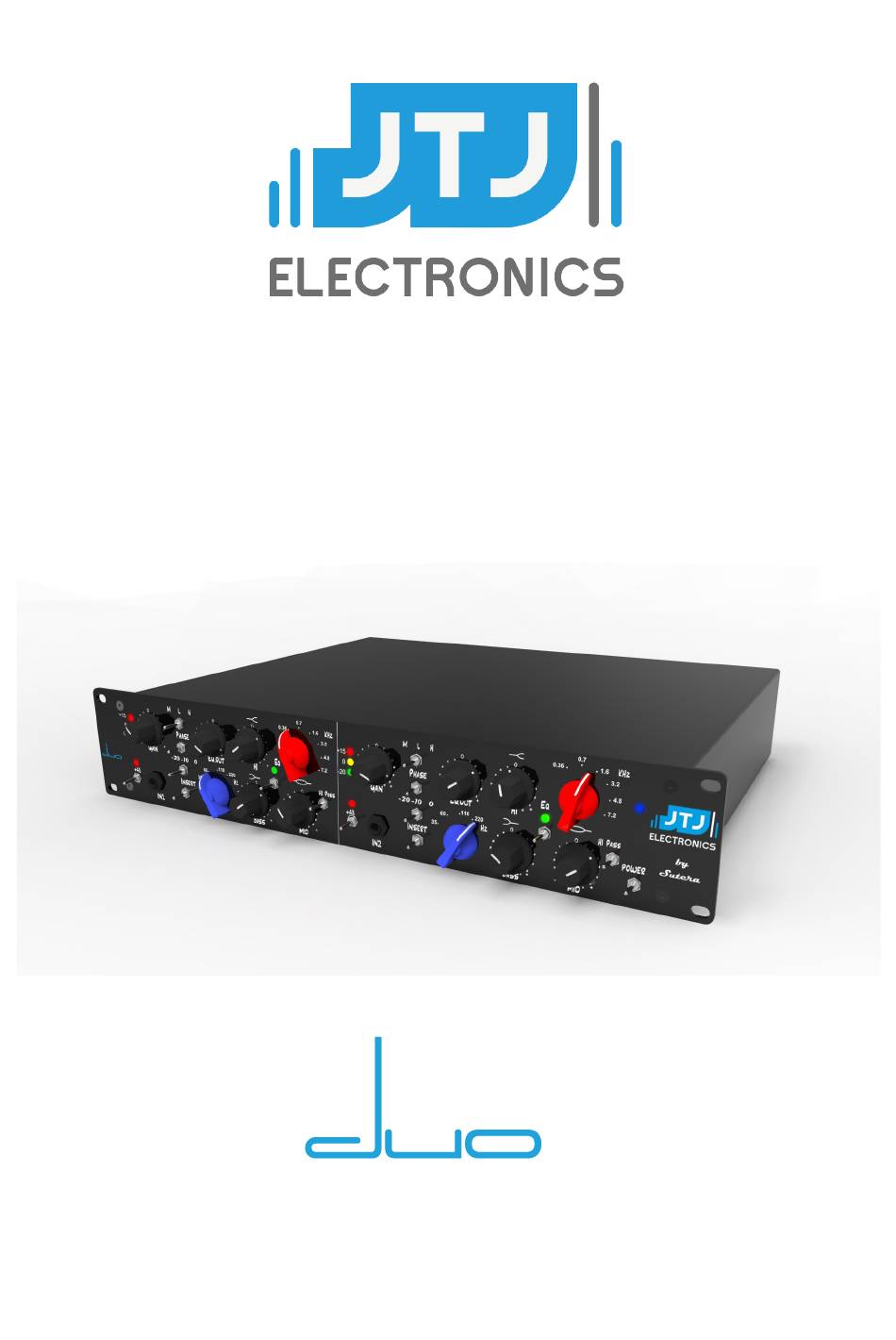

- Page 1 JTJ Electronics duo preamp by Sutera TWO CHANNEL STUDIO PREAMP WITH EQ www.jtjelectronics.com...
- Page 2 Table of contents I. Basic specification:......................4 II. Front panel:........................4 III. Rear panel:........................5 IV. Tips & tricks.........................6 V. Block diagram.......................8 JTJ Electronics sp. z o.o. ul. Wojska Polskiego 138 41-208 Sosnowiec Poland jtj@jtjelectronics.com +48 600545369 www.jtjelectronics.com...
- Page 3 IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6.Clean only with a dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
- Page 4 I. Basic specification: Input HI Z Range gain +40dB/-13db distortions 0,05% 2M impedance. Input Line Range gain +40dB/-13db distortions 0,05% 20k impedance. Input Mic. Range gain +65dB/+11db distortions 0,01% 2k impedance Out Recording +4dB Bal. XLR 50ohm Send (professional) +4dB Bal.XLR 50ohm Send Jack unbalanced -10/-20dB 50ohm Return (professional) +4dB Bal.XLR 20k Return Jack unbalanced.
- Page 5 III. Rear panel: Main Voltage switch 115/230 V 2) Out Recording +4db Bal. XLR (2+/3-/1Com.) CAUTION!!! DO NOT CONNECT TO THIS OUTPUT + 48V PHANTOM POWER FROM A MIXER, PREAMPLIFIER OR AUDIO INTERFACE. IT MAY CAUSE DAMAGE !!! 3) Microphone input balanced XLR (2 + / 3- / 1Com.) Selects when the input mode switch (see No.
- Page 6 IV. Tips & tricks REAMPING and other advantages with LOOP SEND output With the insert you can add a guitar pedal such as a distortion to any source (Mic/Line/Hi Z) and activate it with the insert switch on the front panel. This preamp has been designed to "face"...
- Page 7 Record an instrument in two tracks, one without effect, and one with the distortion or other fx pedal: Connect and Send Jack to Pedal Input and Pedal Out to Return Jack. Out +4dB (recording) to the 1 LINE input of the audio interface. (DO NOT CONNECT TO THIS OUTPUT + 48V PHANTOM) Connect Send, send XLR to the second channel LINE input of audio interface (DO NOT CONNECT TO THIS OUTPUT + 48V PHANTOM)
- Page 8 V. Block diagram CE Certification JTJ Electronics declares under its sole responsibility that all products manufactured by them are in compliance with EC directives 2004/108/EC Electromagnetic Compatibility; 2004/108/EG Electromagnetic Compatibility; 2006/95/EC Low Voltage Equipment Safety. www.jtjelectronics.com...
