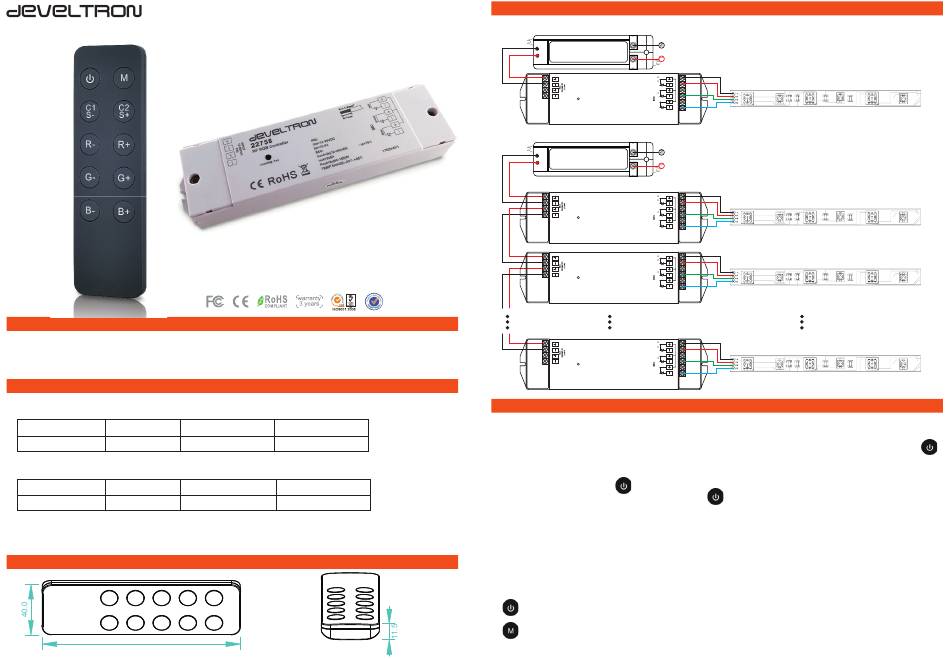

Develtron 22758 Quick Start Manual

One Zone RF Wireless LED RGB Controller
Feature
Its a receiver is a single zone RF wireless RGB controller. 1 remote 22758 can control an endless
number of receivers synchronously. All receivers will share the same ID address, can also work with power
repeater to expand output unlimitedly.
Parameter
Remote
Operation
Operation Voltage
Frequency
3VDC 434MHz/868MHz
Receiver
Input Voltage
Output Current
3x5A
12-36VDC
Product Size
136.5
DIMENSIONS
REMARKS
ø/h (mm)
39x136.5x10.7 RF Wireless
Output Power Remarks
Constant voltage
3x(60-180)W
Wiring diagram
1)Receiver Connection Diagram for Single Unit
Power Supply
110V-230VAC
12-36VDC
22758
RF RGB Controller
Learning Key
2) Receiver Connection Diagram for Multiple Units
Power Supply
110V-230VAC
12-36VDC
22758
RF RGB Controller
Learning Key
22758
RF RGB Controller
Learning Key
22758
RF RGB Controller
Learning Key
Operation
After you have wired all the receivers according to Figure illustration you need to do the following:
1. Pull off the plastic film cover of the battery at the back of remote.
2. Master receiver learning: short press the Learning Key on the receiver, and then immediately press the
.Once you do that, the LED lights will blink once.
Slave receiver learning: short press the Learning Key on the receiver, and then immediately press the any
button on the remote except .
After master and slave learning, please Long Press
Why should there be 2 methods of learning?
When one remote is being used to control multiple receivers that are working together simultaneously after
some time in operation they may lose synchronously. The receiver which is done the master learning will
synchronize all slave receivers automatically.
Notice: there can be only one master receiver, all the others be slave receivers.
Button Instructions:
: short press to turn ON/OFF; long press for 3 seconds to reset.
: 10 built-in dynamic color changing modes; short press to get a dynamic mode, press again to pause to
have a static color, press again to get a next dynamic mode.....
for 3 seconds to reset. (necessory)
