Table of Contents

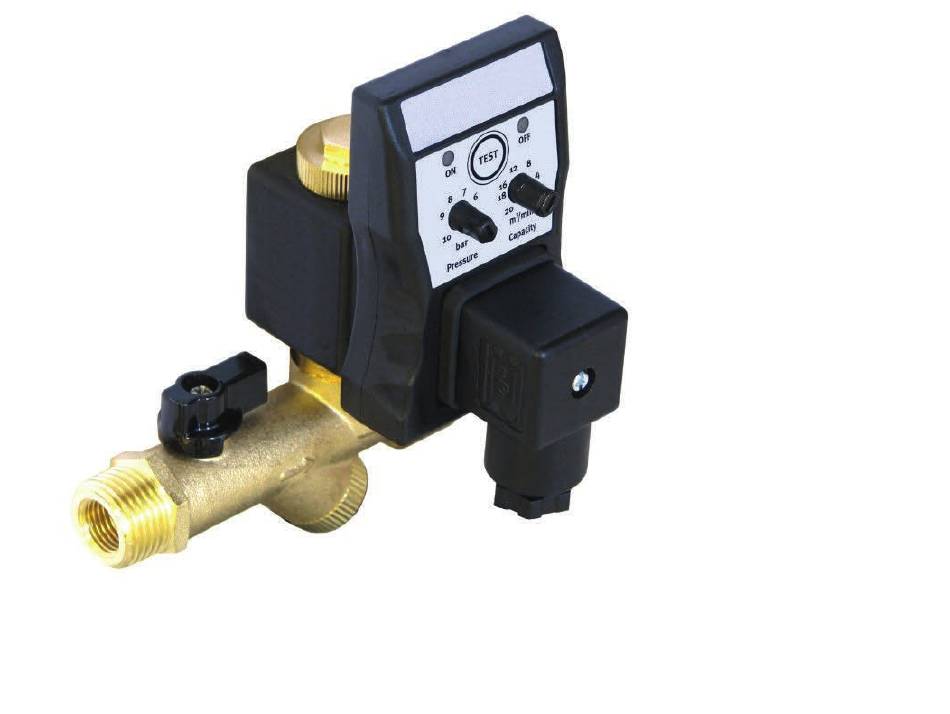

Summary of Contents for Jorc FLUIDRAIN-COMBO-QUICKSET
- Page 1 INSTALLATION & MAINTENANCE INSTRUCTIONS 12-2017...
- Page 2 SAFETY AND PROPER USAGE To ensure safe and enduring performance of this product, you must comply strictly with the instructions enclosed herein. Non-compliance with instructions or improper handling of the product will void your warranty! Usage of this product in conditions not specified in this manual or in contrary to the instructions hereby provided is considered IMPROPER.
-
Page 3: Installation Instructions
INSTALLATION INSTRUCTIONS Before installing this product, make sure it complies with your request and that it suits your application! 1.1 Unpack the unit and visually inspect for any transport damage incurred after leaving our factory. 1.2 Depressurise the system before installation or maintenance is carried out! 1.3 Locate a suitable condensate draining point on your compressed air system and connect your valve using a 22mm wrench. - Page 4 1.10 1.11...
- Page 5 Top nut Gasket Timer gasket Coil Quick-Set Timer Valve Shaft Gasket Small spring Connector gasket Large spring Connector Plunger Screw Valve body...
-
Page 6: Cleaning Instructions
CLEANING INSTRUCTIONS These instructions are for cleaning the drain. If your drain requires maintenance, i.e. replacement of wearing components, please refer to our dedicated maintenance instructions (supplied with the service kit). Depressurise the system before installation or maintenance is carried out! 2.1 Close the condensate supply, i.e. - Page 7 2.10 2.11 2.12...
-
Page 8: Technical Specifications
TECHNICAL SPECIFICATIONS Maximum compressor capacity 20 m³/min. 750 cfm Pressure range drain 0 – 10 bar 0 – 145 psi Supply voltage options 24 – 240 VAC/DC 50/60Hz (see specifications on timer and coil) Medium temperature 1 – 55 °C 34 –... -
Page 9: Service Chart
SERVICE CHART Date Description Name... -
Page 10: Dimensions (Mm)
DIMENSIONS (mm) - Page 11 INSTALLATION GUIDE FOR COMBO VALVE Use a wrench to lock the point of installation. To correctly install a COMBO VALVE. Do NOT turn this wrench! Use a second wrench to install the COMBO VALVE. Keep the first wrench in place! Do not use the Valve Shaft as lever! Proper installation Screw in a hose barb adapter.
