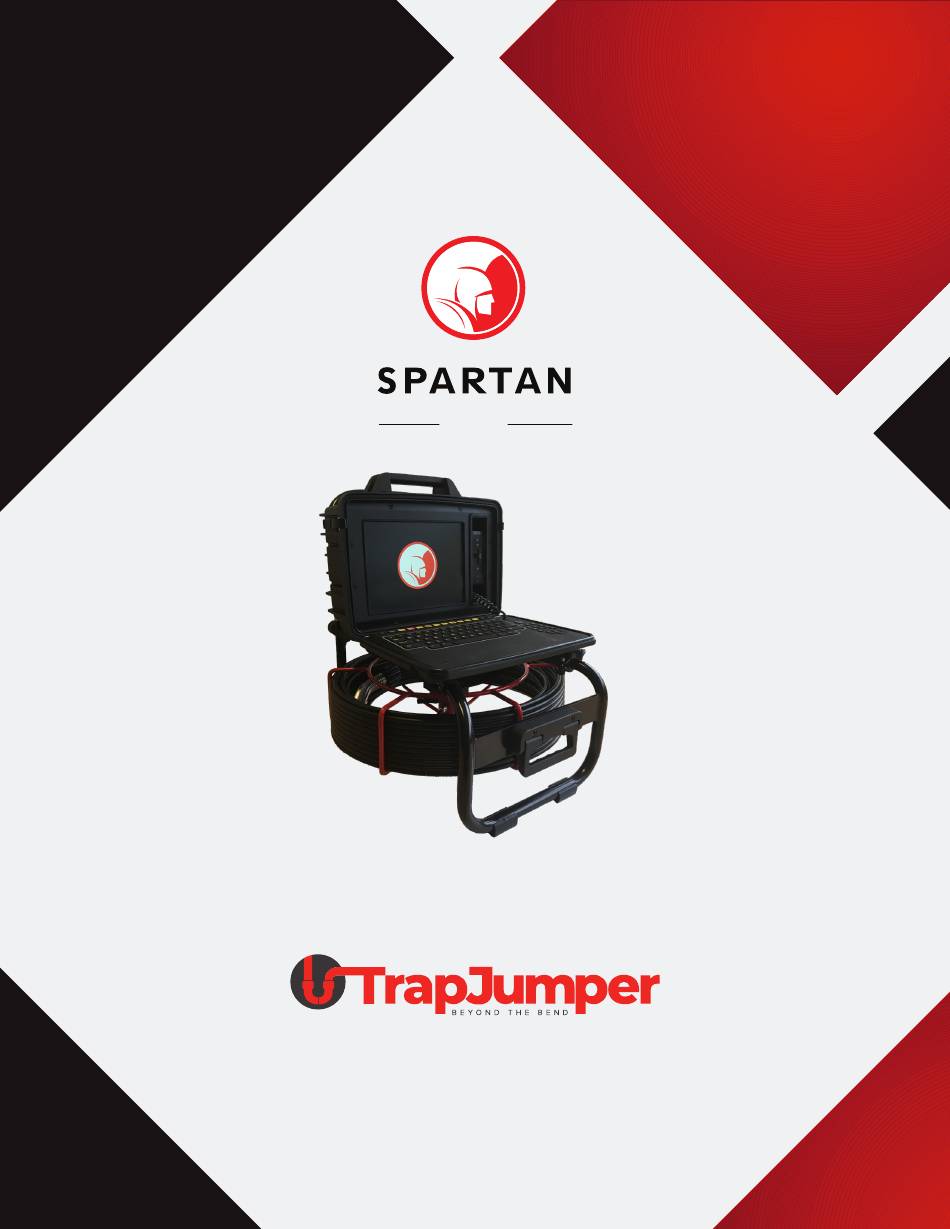

- Page 1 FOR TO U GH CU STO M E RS. SINCE 1943 PRODUCT MANUAL Sewer Inspection Camera Spartan Tool LLC 1618 Terminal Road Niles, Michigan 49120 800.435.3866 SpartanTool.com order by phone order online © 2020 Spartan Tool LLC Part #64052025...
-
Page 2: Table Of Contents
Contents INTRODUCTION ......................4 Important Safety Instructions . - Page 3 Basic Functions for Basic Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Writing text .
-
Page 4: Introduction
Introduction This user manual is a guide on how to use the TrapJumper camera system appropriately, effectively and reliably . With this in mind it is important that you read this carefully before using the TrapJumper system . Please read the “safety instructions” section carefully and follow them precisely to prevent accidental damage to yourself, your colleagues or the TrapJumper itself . -
Page 5: Safety Instructions For All Scanprobe Camera Systems
When using a TrapJumper, it is critical that the user has received the relevant training and has a detailed knowledge of the entire contents of the TrapJumper user manual . They must at all times comply with the instructions in the document . -
Page 6: Intended Use
The TrapJumper system was designed to examine pipework and record/report its findings . We at Spartan Tool, LLC hold no responsibility for further use that is not considered as intended . Do not use the TrapJumper for other purposes . The system cannot be used in pipelines with potentially explosive atmospheres or medium . -
Page 7: About Your Product
Explosive atmospheres can be caused by flammable gases, mists or vapors, or by combustible dusts . If there is enough of the substance, mixed with air, then all it needs is a source of ignition to cause an explosion . Never use a Spartan Tool inspection system in pipelines that may contain these substances . -
Page 8: Further Measures
Spartan immediately . • All work on the electrical system can only be carried out by Spartan Tool, LLC or authorized repair centers . If any work exceeds the tasks described in the Maintenance chapter, please contact Spartan Tool, LLC for assistance . - Page 9 • Be vigilant at all times of your work space and surrounding area Avoid damage to property . As the operator of the TrapJumper system, it is your responsibility for the following: • Do not use the TrapJumper outside the parameters of "intended use" (see page 6) •...
-
Page 10: Product Overview
Product Overview The TrapJumper system consists of the following components: 1. System box 2. Coiler 3. Push rod 4. Camera head The following sketch demonstrates a typical set-up:... -
Page 11: Coiler
Product Overview COILER 1. Push rod 2. Coiler brake 3. Explorer control box mounting plate 4. Nylon rod guide 5. Sonde ON/OFF 6. Monitor lead 7. Handle KEYPAD LAYOUT 1. Help button 2. mina survey 3. Wincan survey 4. General text overlay 5. -
Page 12: Explorer Control Box Display
3. Time 4. Camera connectivity: informs you if there is a camera present 5. Pressure status: (not applicable with TrapJumper) this allows users to determine whether the camera is water-tight 6. LED brightness: indicates the level of brightness 7. Counter placement: allows the user to position the counter anywhere on the screen and change the font/size 8. - Page 13 Product Overview Camera connected Recording Pressure ok Sonde switched ON Sonde frequency...
-
Page 14: Settings Menu
SETTINGS MENU The Settings Menu allows users to access the mainframe of the TrapJumper system . The status menu can be accessed through the settings, which provides a health check of the components . Users can adjust the time/date, connect to WinCan Web, and view the camera temperature/pressure . -
Page 15: Start-Up Guide
The following guide offers instructions on how to set up your TrapJumper system correctly and safely . Please read these instructions in full before the system is set up . Your TrapJumper system has been built to your specification, the camera and overall setup remains the same . -
Page 16: Connectivity
Start-Up Guide USB (1) CONNECTIVITY USB (2) SD Card Socket Ethernet Socket Headphones Microphone Identification label Monitor lead input socket (10 pin) VGA output Pressure valve Battery charging socket Monitor lead input socket (7 pin) Battery light indicator... -
Page 17: Mounting The Control Box
Start-Up Guide MOUNTING THE CONTROL BOX Lift box at an angle above the mounting plate . Align the base of the handle and clip over the plate . Lower box against the handle . Check the box is central to the frame . NOTE: To remove the box, disconnect the cables and repeat the steps above in reverse . -
Page 18: Brake Operation
. Different push rods are designed for different environments; be sure the rod you are using is fit for the pipe it's being used on . If you are unsure, contact Spartan Tool, LLC for help... -
Page 19: Sonde (Locator) Operation
• Connect all cables in accordance with the connector diagram . • Check charging cables are not damaged . Do not use if damage is located . Purchase a new replacement from Spartan Tool, LLC or a recommended repair center . -
Page 20: Charging And Power
Start-Up Guide CHARGING AND POWER 230v Power lead 110v Power lead (64051697) 24v Explorer control supply PSU 12v Car charger (64051821) Explorer control box (6405CBOX) NOTE: Observe power voltage: the voltage of the power source must correspond with the information provided on the equipment or power supply label . -
Page 21: Battery Icon Definitions
. Shallow discharges and recharges are better than full ones, because you put less stress on the battery, so it lasts longer . When your battery is discharging, Spartan Tool recommends that you only let is reach 50 percent before topping it up again . While you're charging it back up, you should also avoid pushing a lithium-ion battery all the way to 100 percent . -
Page 22: General Maintenance
CLEANING AND MAINTENANCE To increase the service life of your TrapJumper equipment, we recommend the devices and components are kept clean and serviced . To achieve the greatest improvement in longevity, pay close attention to moving parts like rollers . Spartan Tool, LLC also notes a significant reduction in the danger of catching infections from the equipment if cleaned thoroughly after each use . -
Page 23: Fitting Protective Collar
64051824 TrapJumper Skid 60mm OD 64051825 TrapJumper Skid 85mm OD 64051826 Spartan Tool, LLC continues to offer a wider range of protective sleeves and equipment for all the camera ranges . Please check www .spartantool .com for new accessories . -
Page 24: Basic Functions For Basic Recording
Explorer control rubber keypad . BASIC FUNCTIONS FOR BASIC RECORDING Check the function display located on the top right hand side of the Explorer monitor . This should display the Spartan logo indicate you're in the basic setting mode . -
Page 25: Counter
3 seconds to reset the counter to zero . NOTE: Open the Setting on the Explorer control box and select TrapJumper to obtain the correct footage . Alternatively, insert 1 .25 into the Manual coiler setting . RECORDING Simply press the record button to begin recording . -
Page 26: Light Adjustment
User Interface LIGHT ADJUSTMENT • Press the button to increase the LED brightness . • Press the button to decrease the LED brightness . • The LED brightness increases in steps . There are 20 steps total, plus off . •... -
Page 27: Wincan Survey
. NOTE: Spartan Tool, LLC recommends all recordings are stored directly to the SSD internal memory and copied to external devices at a later stage . WINCAN SURVEY Press the WinCan button to start . -
Page 28: Technical Data Overview
. The TrapJumper is fully compatible with the Explorer control box, meaning that it is simple plug 'n play to start using the latest addition to the Spartan range of products . - Page 29 Notes...
- Page 30 FOR TO U GH CU STO M E RS. SINCE 1943 CONTACT US Spartan Tool LLC 1618 Terminal Road Niles, MI 49120 800 .435 .3866 SpartanTool.com Part #64052025 Rev 04-2020...
