MCB-TC-4/6 User Guide
Version: E Release Date: 08/21/2018
Dear User,

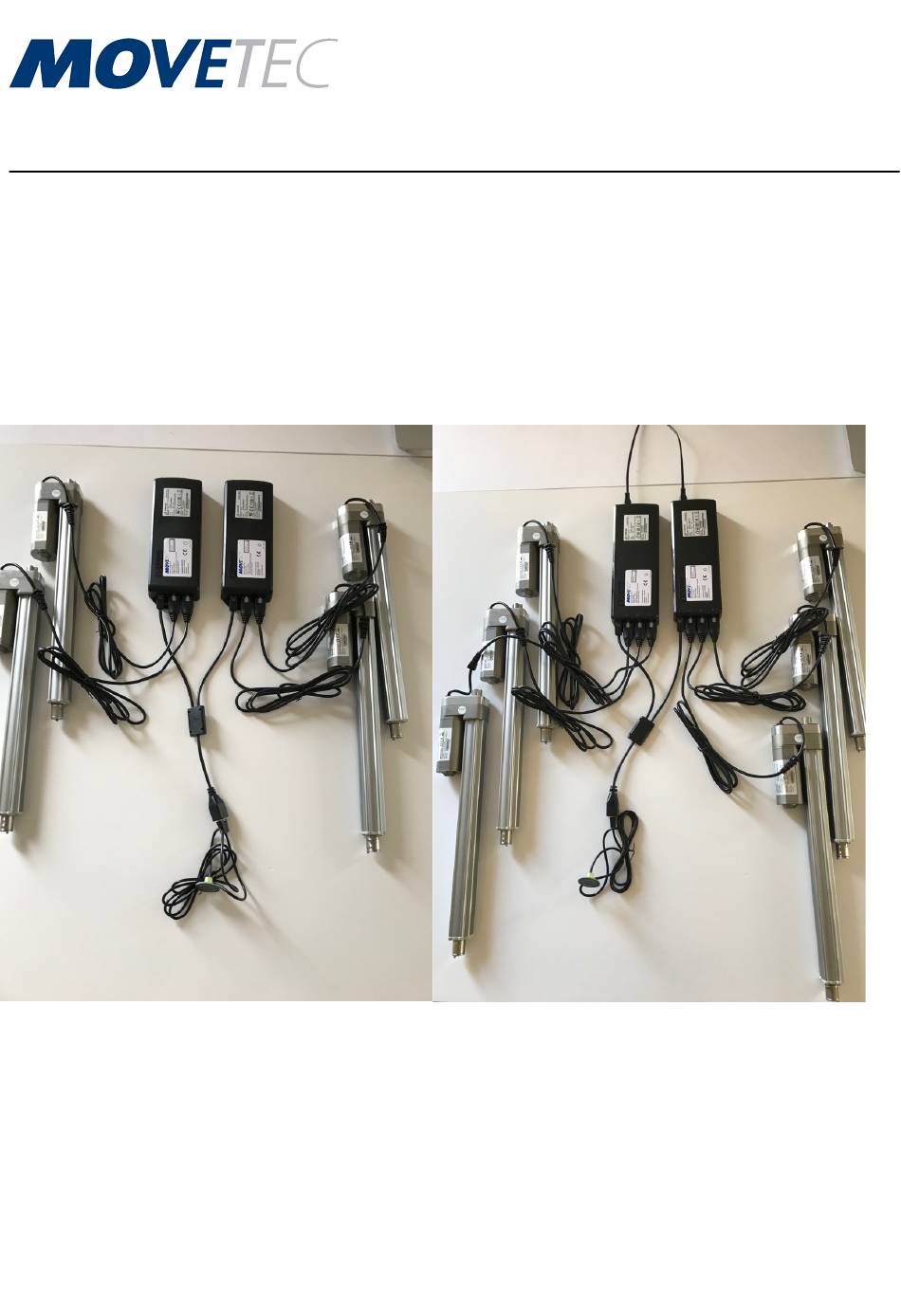

You have chosen a Movetec Synchronised System for your Actuators/Lifting Columns.
We will step by step follow you to a succesfull connection of your new Synchronised Actuator/Lifting Column
System.
This Instruction will be the same for both Movetec MCB-TC-4 Controlbox System and MCB-TC-6 Controlbox
System.
P. 1
Advertisement
Table of Contents
Summary of Contents for MOVETEC MCB-TC-4
- Page 1 You have chosen a Movetec Synchronised System for your Actuators/Lifting Columns. We will step by step follow you to a succesfull connection of your new Synchronised Actuator/Lifting Column System. This Instruction will be the same for both Movetec MCB-TC-4 Controlbox System and MCB-TC-6 Controlbox System. P. 1...
- Page 2 MCB-TC-4/6 User Guide Version: E Release Date: 08/21/2018 Connection of Cables: Step 1. Please connect the Cascading Cable in the RJ45/Handset socket in the Movetec MCB-TC-4/6 Controlbox System P. 2...
- Page 3 MCB-TC-4/6 User Guide Version: E Release Date: 08/21/2018 Step 2. Please connect the Motorcables in the Movetec MCB-TC-4/6 Controlbox System. Step 3. Please connect the Handset in the end of the Cascading Cable. Step 4. Please take the Handset and make a RESET by pressing both the buttons up/down in 3 sec.
- Page 4 If after the RESET you can not move the Actuators/Lifting Columns, please make a Complete New RESET. If the System also not move after the 2nd RESET, please check all the cables are connected correct. Call Movetec HQ in Denmark +45 64892805 or mail to info@movetec.dk P. 4...
