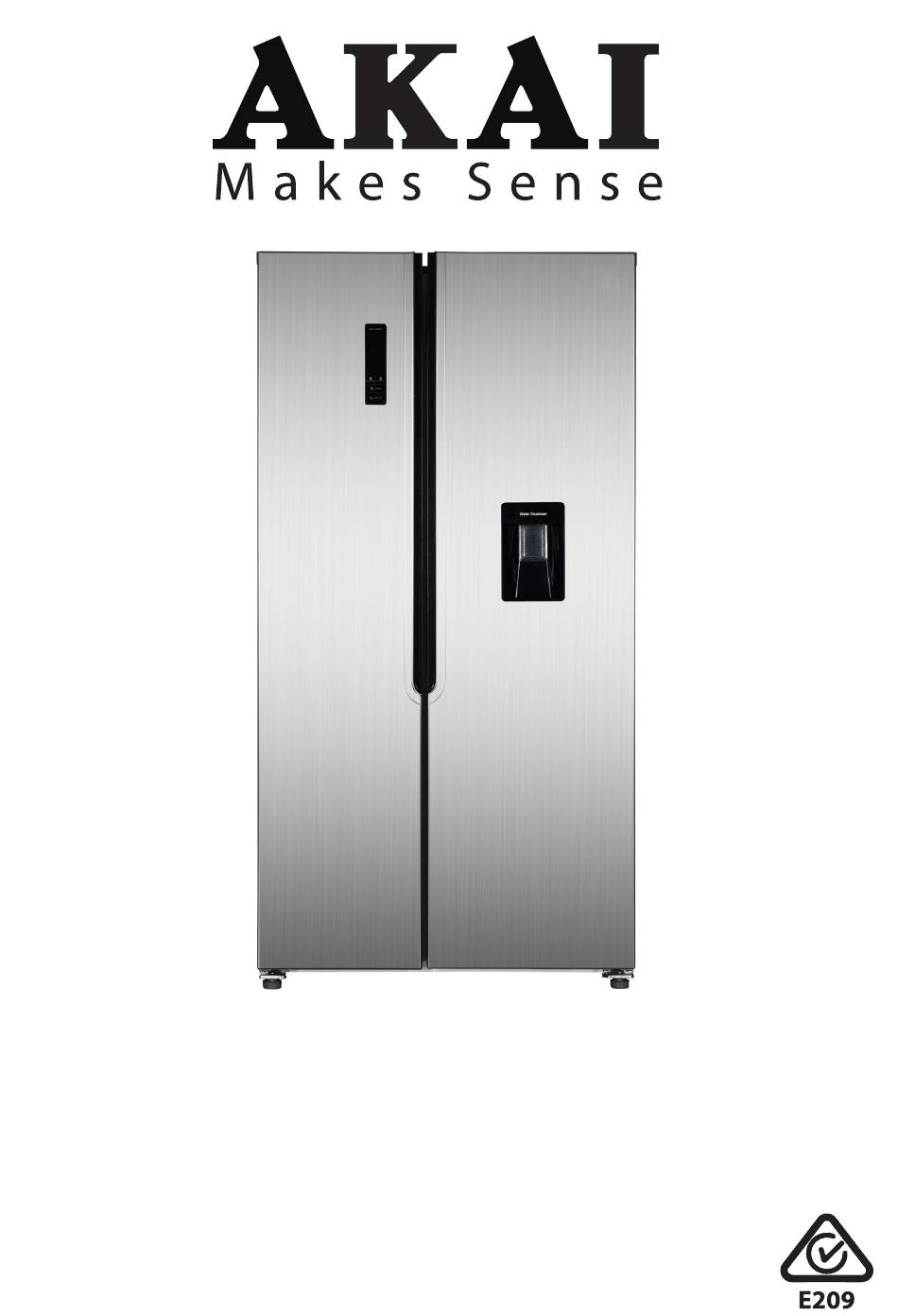

- Page 1 560L Side by Side Refrigerator INSTRUCTION MANUAL MODEL: AK-FDWD...
-
Page 2: Table Of Contents
Contents General Safety Instructions Product Overview Installation Instructions FAQs and Troubleshooting Guide Other Useful Information After Sales Support (AU) 1300 886 649 (NZ) 0800 836 761 | info@tempo.org... -
Page 3: General Safety Instructions
General Safety Instructions READ CAREFULLY AND KEEP FOR FUTURE REFERENCE Read this manual thoroughly before first use, even if you are familiar with this type of product. The safety precautions enclosed herein reduce the risk of fire, electric shock and injury when correctly adhered to. - Page 4 General Safety Instructions (Cont.) To reduce the risk of fire, electric shock or injury, always follow basic safety precautions and accident prevention measures when using this appliance, including the following: Electrical safety • Voltage: Plug the appliance in a 220-240V, 50Hz, properly earthed power outlet, which must be in good working order.
- Page 5 General Safety Instructions (Cont.) Cleaning and maintenance • Disconnect: Switch off and unplug the appliance from the mains socket before cleaning, maintenance or servicing. Failure to do so can result in electric shock, injury or death. Do not connect or disconnect the plug when your hands are wet. •...
-
Page 6: Product Overview
Product Overview Scope of delivery Parts list B Documentation (not shown) Freezer door balconies (4) Instruction manual Covered freezer drawer Warranty certificate Covered fridge vegetable crisper Levelling feet Fridge door balconies (3) Water tank Removable fridge shelves (4) Removable freezer shelves (4) NOTE: Due to continued product improvement, images and illustrations in this manual may vary slightly from the product purchased. -
Page 7: Installation
Installation Unpacking • Packaging materials: This product has been packaged to protect it against transportation damage. Remove all packaging materials from around and inside the appliance and keep the original packaging carton and materials in a safe place. It will help prevent any damage if the product needs to be transported in the future, and you can use it to store the appliance when it is not in use. - Page 8 Installation (Cont.) Space requirements • Door opening: Place the unit so there is enough space for the doors to open easily. • Clearances: Ensure that air can circulate freely around the back of the cabinet, which is necessary to cool the compressor and condenser. Allow at least 100mm clear space at the back of the unit (Fig.
- Page 9 Installation (Cont.) • To move the unit, tilt it slightly backward onto its wheels. • To level the unit, adjust the levelling feet at the base of the cabinet (Fig. 4). Fig. 4 Doors Turn the levelling feet clockwise to raise or anticlockwise to lower the front of the cabinet.
-
Page 10: Instructions
Instructions Control panel buttons and display The control panel (Fig. 5) is located on the outside door of the freezer compartment. It enables you to view and adjust the temperature in the fridge and freezer compartments, select an operation mode or lock the control panel. •... - Page 11 Instructions (Cont.) Temperature and mode setting [ A ] Press to adjust the temperature of the freezer compartment (left side) from -14°C to -22°C. [ B ] Press to adjust the temperature of the fridge compartment (right side) from 2°C to 8°C and off cooling.
- Page 12 Instructions (Cont.) Setting up the water tank Your new side by side refrigerator is equipped with a water dispenser in the door of the fridge compartment so you do not always have to open the fridge door if you want a glass of water.
- Page 13 Instructions (Cont.) Operation modes Freezer Fridge Indicator Mode Purpose temp. temp. light display display Automatic fridge and The display will Smart freezer compartment change based on the temperature setting ambient temperature. Power saving -15°C +8°C Quick cool-down of foods in the fridge compartment (will be Super cooling No change...
- Page 14 Instructions (Cont.) Fresh food storage The fridge compartment (at the right side of the appliance) is suitable for short-term storage of all your fresh food. Fig. 11 • The temperature inside the fridge compartment varies depending on the amount of food stored and the frequency of door opening.
- Page 15 Instructions (Cont.) The freezer compartment The freezer compartment (at the left side of the appliance) is suitable for freezing domestic quantities of fresh food and long-term storage (up to three months) of frozen food. It is designed to operate in ambient (surrounding air) temperatures between 16°C and 43°C. For convenient access and organised storage, the freezer compartment is equipped with four glass shelves, a covered drawer and four door balconies.
- Page 16 Instructions (Cont.) Energy saving tips • Locate the appliance in the coolest area of the room, away from heat-producing appliances and out of direct sunlight. • Let hot foods cool to room temperature before placing them in the freezer. Overloading the compartments forces the compressor to run longer. •...
-
Page 17: Faqs And Troubleshooting Guide
FAQs and Troubleshooting Guide If you experience a problem with the appliance, check in the following table for solutions to help you solve the problem. If none of the solutions offered help you solve the problem, please contact our after sales support centre for advice. Problem Possible cause The appliance does not... - Page 18 FAQs and Troubleshooting Guide (Cont.) Food in the freezer • The freezer temperature is set too warm; set it to a compartment is not colder setting. properly frozen. • The freezer door was opened for too long or too frequently. •...
-
Page 19: Other Useful Information
Other Useful Information WARNING! To reduce the risk of electric shock or injury, always switch off the appliance and disconnect it from the power supply before cleaning or maintenance. Cleaning the appliance For hygienic reasons the appliance interior, including the interior accessories, should be cleaned regularly. - Page 20 Other Useful Information (Cont.) Storage If the appliance is not going to be used for an extended period of time, please store the unplugged appliance safely in the original packaging in a dry location, out of reach of children. Interior LED lamps The interior LED lamps can only be replaced by authorised service personnel.
- Page 21 Other Useful Information (Cont.) Responsible disposal At the end of its working life, do not throw this appliance out with your household waste. Electrical and electronic products contain substances that can have a detrimental effect on the environment and human health if disposed of inappropriately. Observe any local regulations regarding the disposal of electrical consumer goods and dispose of it appropriately for recycling and recovery of the refrigerant and blowing agent.
- Page 22 This page has been left blank intentionally. After Sales Support (AU) 1300 886 649 (NZ) 0800 836 761 | info@tempo.org...
- Page 23 This page has been left blank intentionally. After Sales Support (AU) 1300 886 649 (NZ) 0800 836 761 | info@tempo.org...
- Page 24 Warranty returns Should you for any reason need to return this product for a warranty claim, make sure to include all accessories with the product. Product does not work? If you encounter problems with this product, or if it fails to perform to your expectations, make sure to contact our After Sales Support Centre for advice.
