Forward this manual to all operators. Failure to operate this equipment as directed may cause injury.
INSTALLATION AND OPERATION MANUAL
Keep this operation manual near the machine at all times. Make sure
that ALL USERS read this manual.
SHIPPING DAMAGE CLAIMS
When this equipment is shipped, title passes to the
purchaser upon receipt from the carrier. Claims for
the material damaged in shipment must be made by
the purchaser against the transportation company at
the time shipment is received.
Installation And Operation Manual
1

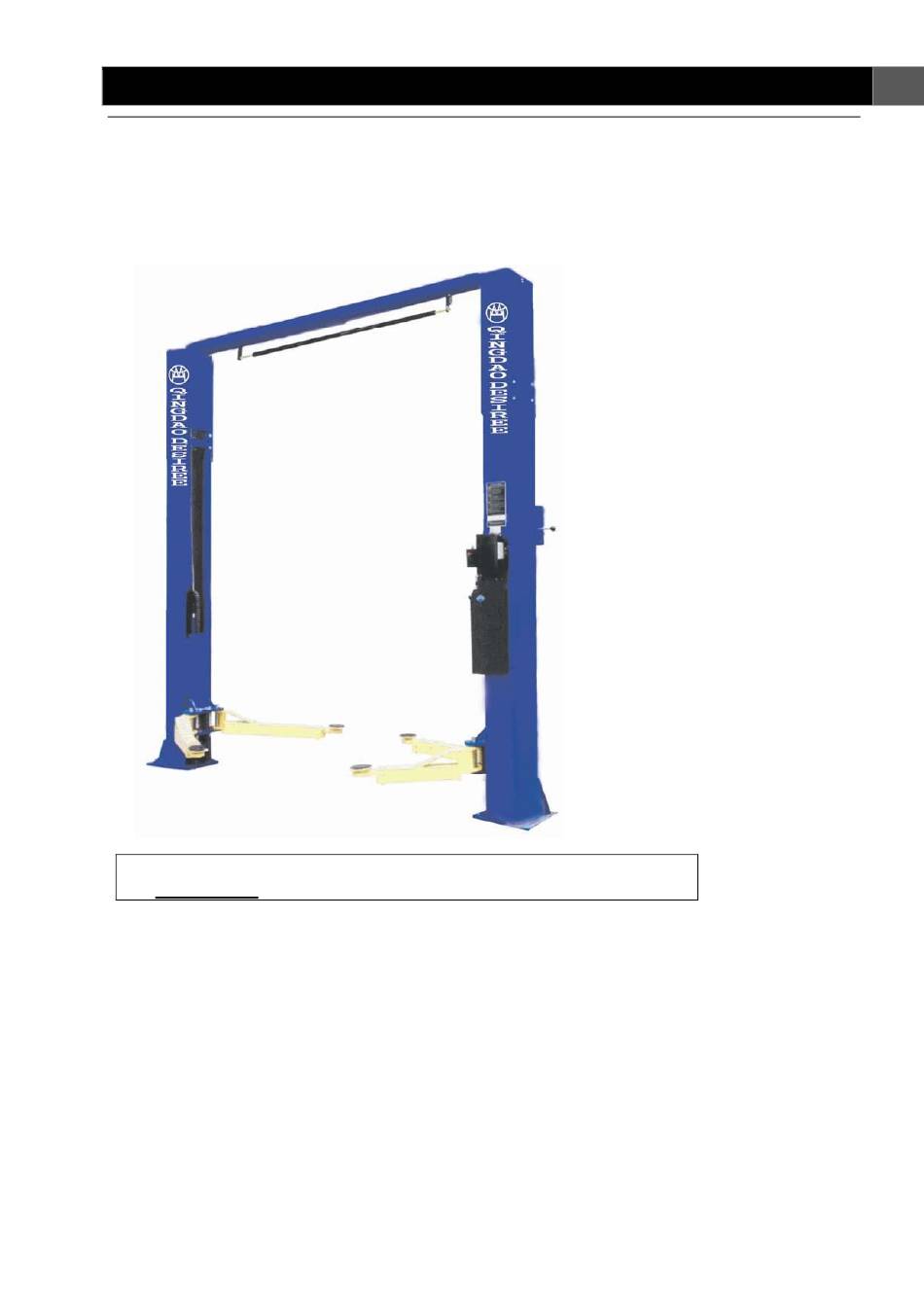

TWO POST LIFT
MODEL NO.
DTPO610VC
Lifting Capacity：4.5T/10000lbs
Lifting Height：71in/1800mm
Motor：2.2kw./3hp
BE SAFE
Your new lift was designed and built with safety in
mind. However, your overall safety can be increased
by proper training and thoughtful operation on the
part of the operator. DO NOT operate or repair this
equipment without reading this manual and the
important safety instructions shown inside.
DTPO610VC
For
Advertisement
Table of Contents
Summary of Contents for Qingdao Desiree DTPO610VC
- Page 1 Installation And Operation Manual DTPO610VC Forward this manual to all operators. Failure to operate this equipment as directed may cause injury. INSTALLATION AND OPERATION MANUAL TWO POST LIFT MODEL NO. DTPO610VC Lifting Capacity：4.5T/10000lbs Lifting Height：71in/1800mm Motor：2.2kw./3hp Keep this operation manual near the machine at all times. Make sure that ALL USERS read this manual.
- Page 2 Installation And Operation Manual DTPO610VC TWO POST HYDRAULIC LIFT This instruction manual has been prepared especially for you. Your new lift is the product of many years of our continuous research, testing and development and is the most technically advanced lift on the market today.
-
Page 3: Parts Inventory
Installation And Operation Manual DTPO610VC This warranty is exclusive and in lieu of all other warranties expressed or implied. In no event shall the manufacturer be liable for special, consequential or incidental damages for the breach or delay in performance of the warranty. The manufacturer reserves the right to make design changes or add improvements to its product line without incurring any obligation to make such changes on product sold previously. - Page 4 Installation And Operation Manual DTPO610VC To fix Release Steel 3/8″Hex Nuts Cable Pulley To fix Columns and 3/8″ Hex Bolts And Overhead Nuts Beam To equalize the cable 5/8″Hex Nuts To fix Power Unit 5/16″Hex Bolts and Nuts Oil pipe with 90 degree...
-
Page 5: Important Safety Instructions
Installation And Operation Manual DTPO610VC INTRODUCTION Carefully remove the crating and report any shipping damage to the carrier and packing materials. CAUTION! Be careful when make a notation on the delivery receipt. cutting steel banding materials as items may 3. Check the voltage, phase and proper amperage... -
Page 6: Tools Required
Installation And Operation Manual DTPO610VC THIS SYMBOL POINTS OUT IMPORTANT SAFETY INSTRUCTIONS， WHICH， IF NOT FOLLOWED， COULD ENDANGER THE PERSONAL SAFETY AND/OR PROPERTY OF YOURSELF AND OTHERS AND MAY CAUSE PERSONAL INJURY OR DEATH. READ AND FOLLOW ALL INSTRUCTIONS IN THIS MANUAL BEFORE ATTEMPTING TO OPERATE THIS MACHINE. - Page 7 3-degrees of slope, consider a survey of the site and/or the possibility of pouring a new level concrete slab Model No.: DTPO610VC Keep all dimensions and squareness within SOLEPLATE LAYOUT 1/8”or malfunctioning of the lift will occur.
- Page 8 Installation And Operation Manual DTPO610VC 2. Using the baseplate on the POWERSIDE column as a guide, drill each anchor hole on the concrete approximately 7-1/2” deep using a Percussion Drill and 3/4” concrete drill-bit. To assure full holding power, do not ream the hole or allow the drill to wobble.
- Page 9 Installation And Operation Manual DTPO610VC...
- Page 10 Installation And Operation Manual DTPO610VC NOTE: To ease installation of the top beam on CLEARFLOOR models, it helps to keep the anchor bolts loose on one of the columns until the top beam is mounted . STEP 6 (Mounting the OVERHEAD BEAM.) Using a lifting device, raise the OVERHEAD beam in position on top of the columns.
- Page 11 Installation And Operation Manual DTPO610VC are fully engaged before attempting to route equalizer cables. Carriages must be equal height from the floor before proceeding. 3. With the carriages in equal position from the floor, route the equalizer cables as shown below. ( See Fig.
- Page 12 Installation And Operation Manual DTPO610VC 1. Raise and lock each carriage approximately 28” above the ground. ( See Fig.9) 2. Make sure that the safety locks on each column...
- Page 13 Installation And Operation Manual DTPO610VC STEP 9 (Installing The Hydraulic Lines) Install the hydraulic lines as shown below, paying careful attention to keep the hoses clean and free of impurities. (See Fig. 12~15)
-
Page 14: Important Note
Installation And Operation Manual DTPO610VC 3. It may be necessary to tie hose clear by using Nylon tie straps or wire. Failure to keep hydraulic lines clear may result in hydraulic line failure which may further result in damage or personal harm. - Page 15 Installation And Operation Manual DTPO610VC 5. Repeat the following course. WARNING WARNING RISK OF EXPLOSION!! This equipment has internal arcing or sparking parts that should not be During the whole lifting operation, observe all the exposed to flammable vapors. Motor should not be operational units to check the correctness of located in a recessed area or below floor level.
- Page 16 Installation And Operation Manual DTPO610VC STEP 13 (Installing Swing Arms.) 1. Install swing arms as described below. Lubricate the carriage tube and all pivot point and pins prior to installation.
- Page 17 Installation And Operation Manual DTPO610VC...
-
Page 18: To Raise Lift
Installation And Operation Manual DTPO610VC WARNING IMPORTANT LEVELING INSTRUCTIONS Before operating your lift, Make sure that both “A” and “B” measurements are EQUAL The swing arms must be Level before operation Maximum of tolerance is 5mm. If your swing arms are not leveled, Wedge the columns as required. - Page 19 Installation And Operation Manual DTPO610VC ● ● Make sure that tool trays, stands or persons are removed or evacuated from under vehicle. Lower vehicle by activating lowering handle. ● Before removing vehicle from lift area, position the lift arms and the supports to provide unobstructed exit.
- Page 20 Installation And Operation Manual DTPO610VC LIFT WILL NOT RAISE...
-
Page 21: Motor Will Not Run
Installation And Operation Manual DTPO610VC POSSIBLE CAUSE ELIMINATE Lift to the maximum height for 5-6 seconds, then lower, repeat it Air in hydraulic oil if necessary. Cylinder binding Wash check valve in solvent and blow out with air. Re-install check valve. -
Page 22: Abnormal Noise
Installation And Operation Manual DTPO610VC CYLINDER LEAKS OUTSIDE Loose joint Re-screw down the pipe joint. Oil seal leaks Replace with new part. Oil leaks from air hole Oil seal is out of work, replace with new part. Overabundant oil flowing out...
