USER MANUAL
V1.0

12V DC

Connect the included AC adapter (12V DC, 0.5A) only. Always connect all other cords before plugging
in the AC adapter. The Mini Vent can not be powered by batteries.

IN

This jack accepts mono organ and keyboard signals.

OUT L , OUT R / MONO

The mini Vent provides a stereo output. If you just need a mono signal the R / MONO output delivers
the best quality, particularly in STOP mode.

A-B

Switches between two programmable settings of the mini Vent. See > Programming.

BYPASS

Turns the rotary effect on and off. When the red LED lights up, the effect is active, when it's off the
signal is relayed to both outputs via a true bypass circuit.

SLOW / FAST

Switches the rotors to slow or fast speed. The yellow Lo and red Hi Leds indicate the current speed of
the virtual rotors.

STOP

Pressing both the Bypass and Slow / Fast switch simultaneously causes the rotors to stop.
The rotors always stop in the front position.

Input Gain Select

The mini Vent for Organ is set to Lo Gain input from the factory. If your organ's output is too low to
get enough DRIVE, the mini Vent can be switched to Hi Gain.
1. Unplug the AC adapter of the mini Vent
2. Unscrew the 4 screws on the bottom and open the enclosure

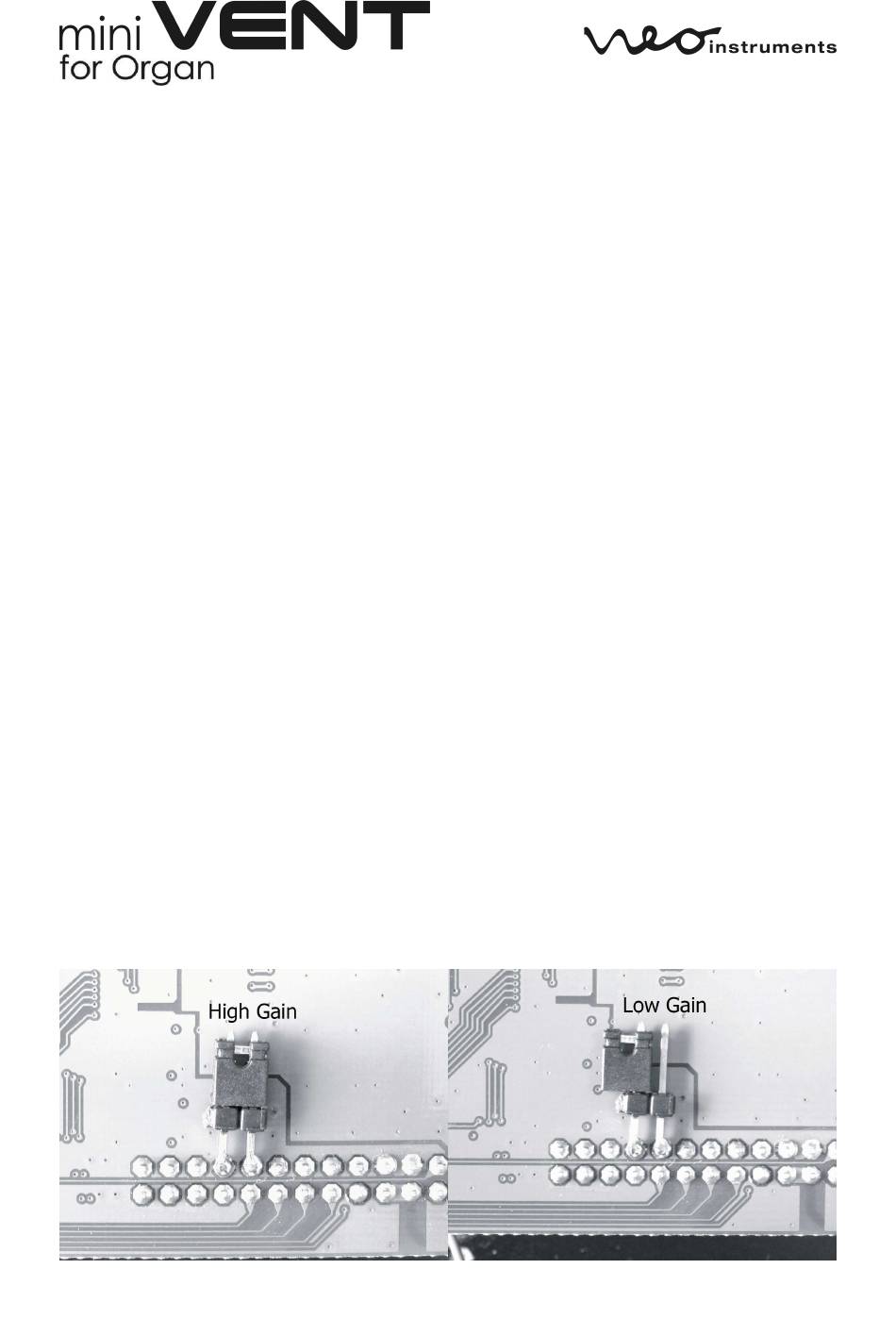

3. Find the jumper soldered flat on the PCB board (see picture below)
4. Remove the jumper and attach to both pins
5. Attach the bottom cover with the 4 screws
